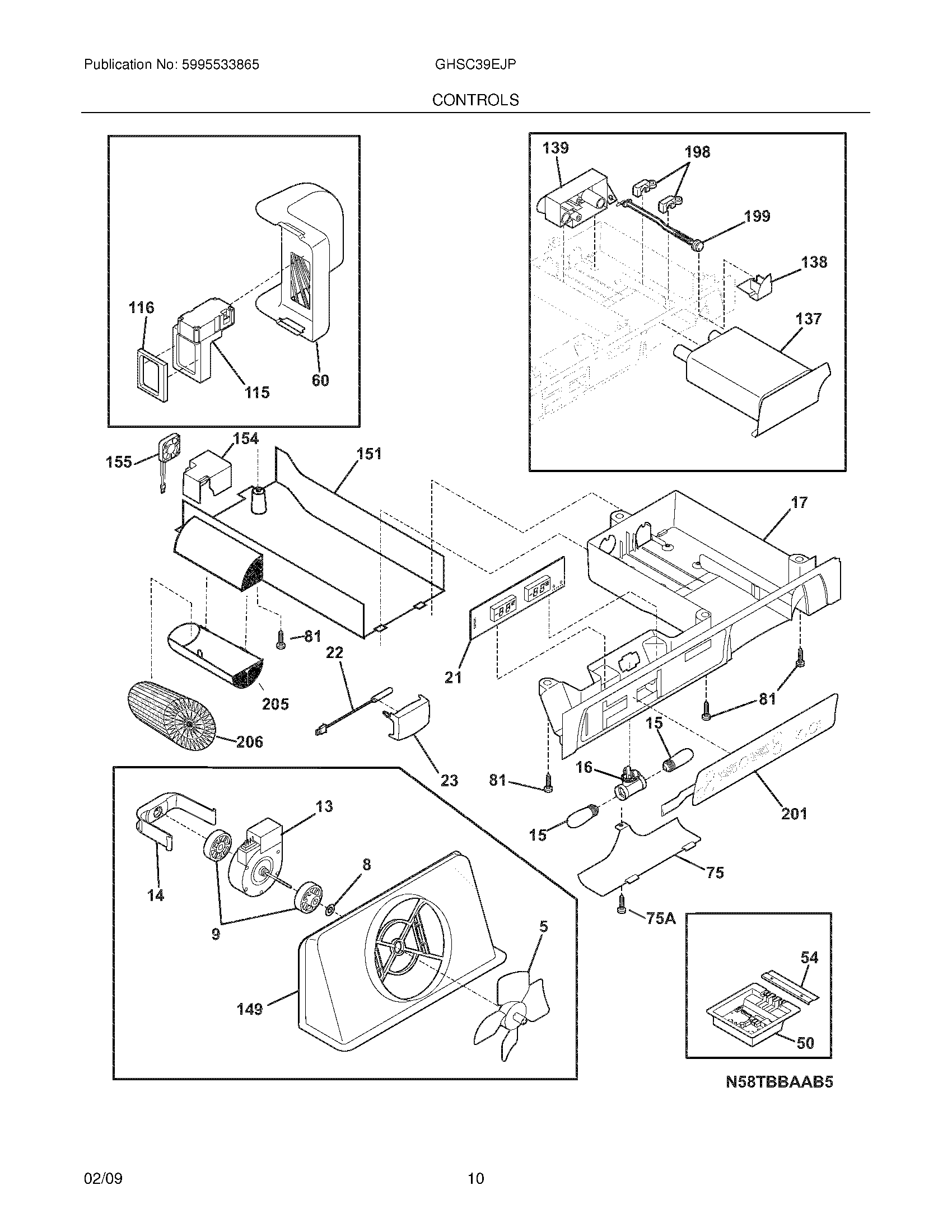

GHSC39EJPB3 11 – CONTROLS

Products

Position	Product
NI	WCI 241537401
NI	241510802 Frigidaire Refrigerator Wiring Harness
NI	WCI 241532501
NI	3205266 Frigidaire Refrigerator Edge Protector
NI	WCI 241524802
NI	WCI 241510501
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241518301 Frigidaire Refrigerator Bushing
13	MOTOR,EVAPORATOR FAN
14	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15	5304517886 Frigidaire Refrigerator Light
16	241622802 Frigidaire Refrigerator Socket-Light
17	WCI 241516201
21	WCI 240596705
22	240597220 Frigidaire Sensor
23	241512901 Frigidaire Refrigerator Cover-Sensor
50	WCI 241511112
54	241532401 Frigidaire Refrigerator Channel
60	WCI 241510301
75	WCI 241517802
75A	5304455650 Frigidaire Refrigerator Screw
81	218843801 Frigidaire Refrigerator Screw
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
137	242227702 Frigidaire Refrigerator Bypass Water Filter
137	WATER FILTER PURESOURCE 2
138	WCI 240397301
139	240396002 Frigidaire Refrigerator Primary Base Water Filter
139	240527001 Frigidaire Refrigerator O-Ring N
149	242204504 Frigidaire SHROUD AssemblyY
149	241528303 Frigidaire Refrigerator Seal
151	WCI 241526001
154	WCI 241525801
155	WCI 241527202
155	WCI 241526102
198	240397401 Frigidaire Refrigerator Retainer Assembly
199	240398401 Frigidaire Refrigerator Filter Release Spring
199	WCI 240397501
201	WCI 241816702
205	WCI 241525901
206	AFCB Frigidaire Refrigerator Air Filter
