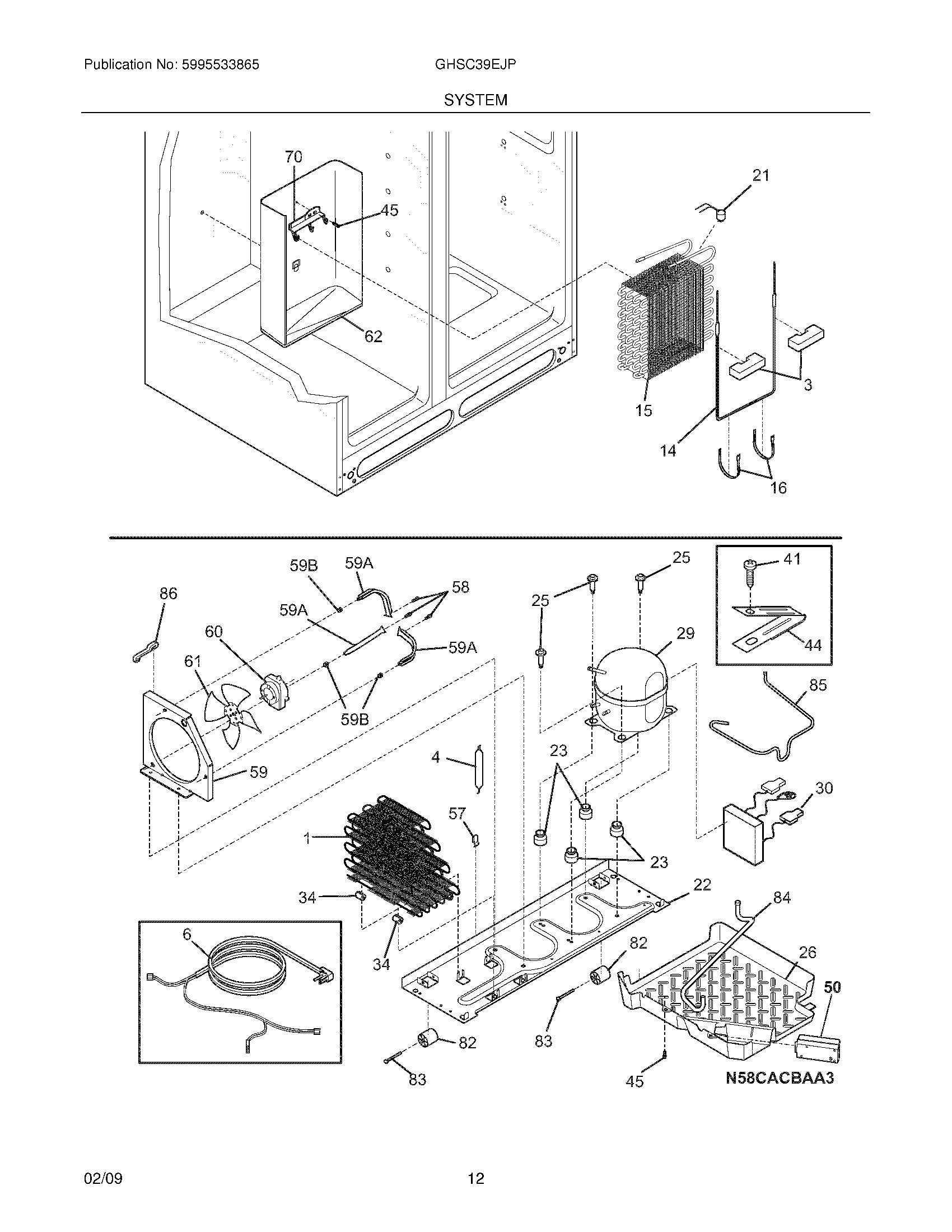

GHSC39EJPB3 13 – SYSTEM

GHSC39EJPB3 13 – SYSTEM

Written by

in

GHSC39EJPB3 13 – SYSTEM

Products

PositionProduct
NI218252201 Frigidaire Refrigerator Screw
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NI5304453707 Frigidaire Oven Screw
NIWCI 241636203
NIWCI 5303918222
NIWCI 241519902
NI5303918327 Frigidaire Refrigerator Heat Exchanger Kit
NIWCI 241527202
NI241510802 Frigidaire Refrigerator Wiring Harness
15304526057 Frigidaire Refrigerator Condenser
3218679614 Frigidaire Refrigerator Evaporator Coil Block
45303305677 Frigidaire Replacement Filter Dryer Filters
6241516904 Frigidaire Refrigerator Service Cord
14242044113 Frigidaire Refrigerator Defrost Heater Assembly
155303918284 Frigidaire Refrigerator Evaporator Kit P-1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
215303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22WCI 240330011
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 240491503
26241697502 Frigidaire Pan-Defrost Drain
295304475104 Frigidaire Refrigerator Compressor Kit
30241577505 Frigidaire Refrigerator Inverter
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
50WCI 241635501
57240542601 Frigidaire Clip-WIRING Harness
58241953902 Frigidaire Refrigerator Screw
59241946105 Frigidaire Refrigerator Condenser Shroud
59A240346501 Frigidaire Refrigerator Support Bracket
59BWCI 240346601
60297279500 Frigidaire Refrigerator Condenser Fan Motor
61241639502 Frigidaire Refrigerator Condenser Fan Blade
625304481642 Frigidaire Refrigerator Trough
70218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84241957901 Frigidaire Refrigerator Tube-Drain
85TUBE-CONNECTOR, SUCTION
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
