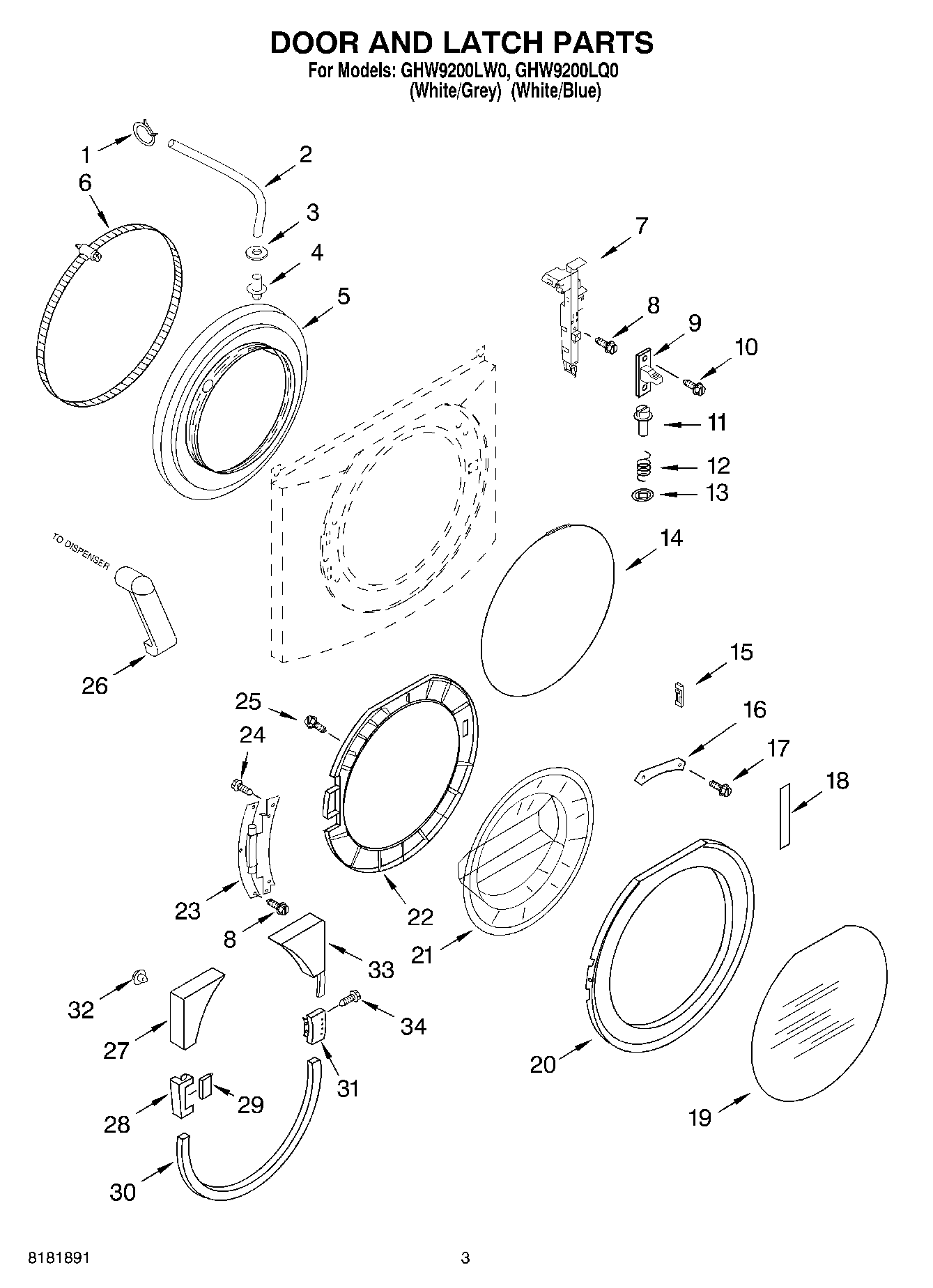

GHW9200LW0 02 – SECTION

Products

Position	Product
1	WP489503 Whirlpool Refrigerator Clamp
2	Hose, Box to Bellow
3	Washer
4	Nozzle, Inlet Window
5	BELLOW
6	WP8182210 Whirlpool Clamp
7	WP8182634 Whirlpool Latch Assembly
8	WP8540725 Whirlpool Screw Assembly
9	WP8181651 Whirlpool Door Strike
10	Screw
11	Pin, Safety
12	SPRING
13	WASHER
14	W10902779 Whirlpool Clamp Assembly
15	Clamp, Support
16	Clamp, Glass
17	SCREW
18	Foam, Door Handle
19	Screen, Door
20	Door Frame (Blue)
20	Door Frame (Grey)
21	Glass, Door
22	Door, Back Support (For White & Biscuit Models)
23	Hinge, Door
24	WP8181660 Whirlpool Screw
25	WP8540282 Whirlpool Screw
26	WPW10005300 Whirlpool Hose
27	Trim, Upper Left (Platinum)
27	Trim, Upper Left (Blue)
28	Cover, Hinge (Outer) (Blue)
28	Cover, Hinge (Outer) (Platinum)
29	Cover, Hinge (Inner) (Blue)
29	Cover, Hinge (Inner) (Platinum)
30	Trim, Lower (Platinum)
30	Trim, Lower (Blue)
31	Handle, Door (Blue)
31	WP8181846 Whirlpool Washer Door Handle
32	Clip, Trim
33	Trim, Uppe
33	Trim, Upper Right (Platinum)
34	WP3400805 Whirlpool Screw Assembly
