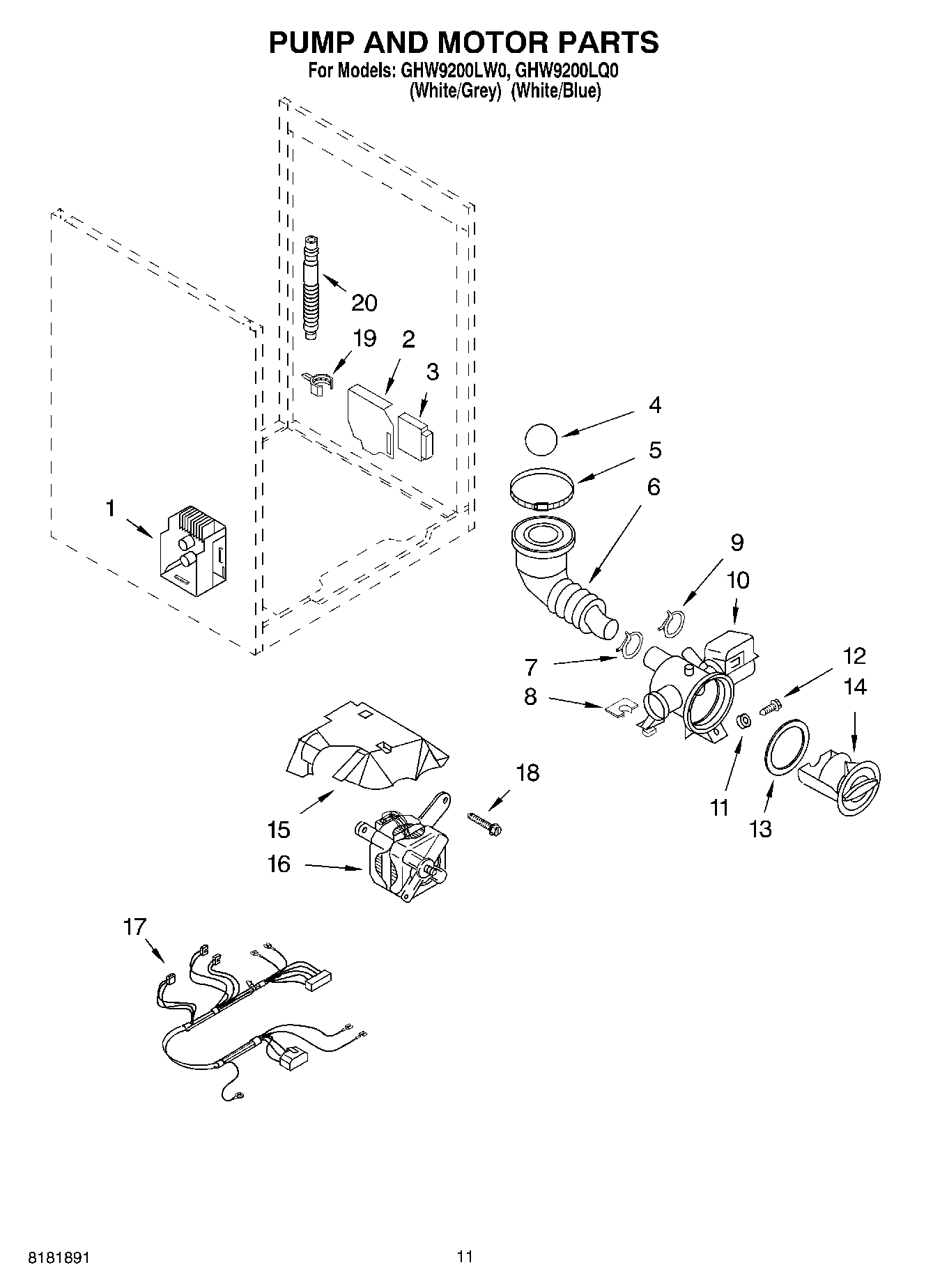

GHW9200LW0 06 – PUMP AND MOTOR

GHW9200LW0 06 – PUMP AND MOTOR

Written by

in

GHW9200LW0 06 – PUMP AND MOTOR

Products

PositionProduct
1W10756692-includeCORE Whirlpool W10756692 Washer Electronic Motor Control Board + Core
2Bracket, Relay
3RELAY
4W10121657 Whirlpool Ball
5WP696392 Whirlpool Hose Clamp
6WPW10467168 Whirlpool Hose Assembly
7WP285655 Whirlpool Hose Clamp
8Damper, Rubber (Rear)
9WP3367052 Whirlpool Hose Clamp
10280187 Whirlpool Washer Electronic Water Drain Pump
11Damper, Rubber (Front)
12Screw
13Seal, Filter Cap
14Cap, Filter
15Cover, Motor
16Motor
17Harness, Motor
18Bolt, Motor
198182209 Whirlpool Clip
20W10289554A Whirlpool Bolt Kit
20285863 Whirlpool Drain Hose Extension 4'
20WPW10003250 Whirlpool Hose
20799344 Whirlpool Refrigerator Paint
2072017 Whirlpool Appliance Touch-Up Paint White
20350938 Whirlpool Spray Gun
20350930 Whirlpool White Spray Paint
