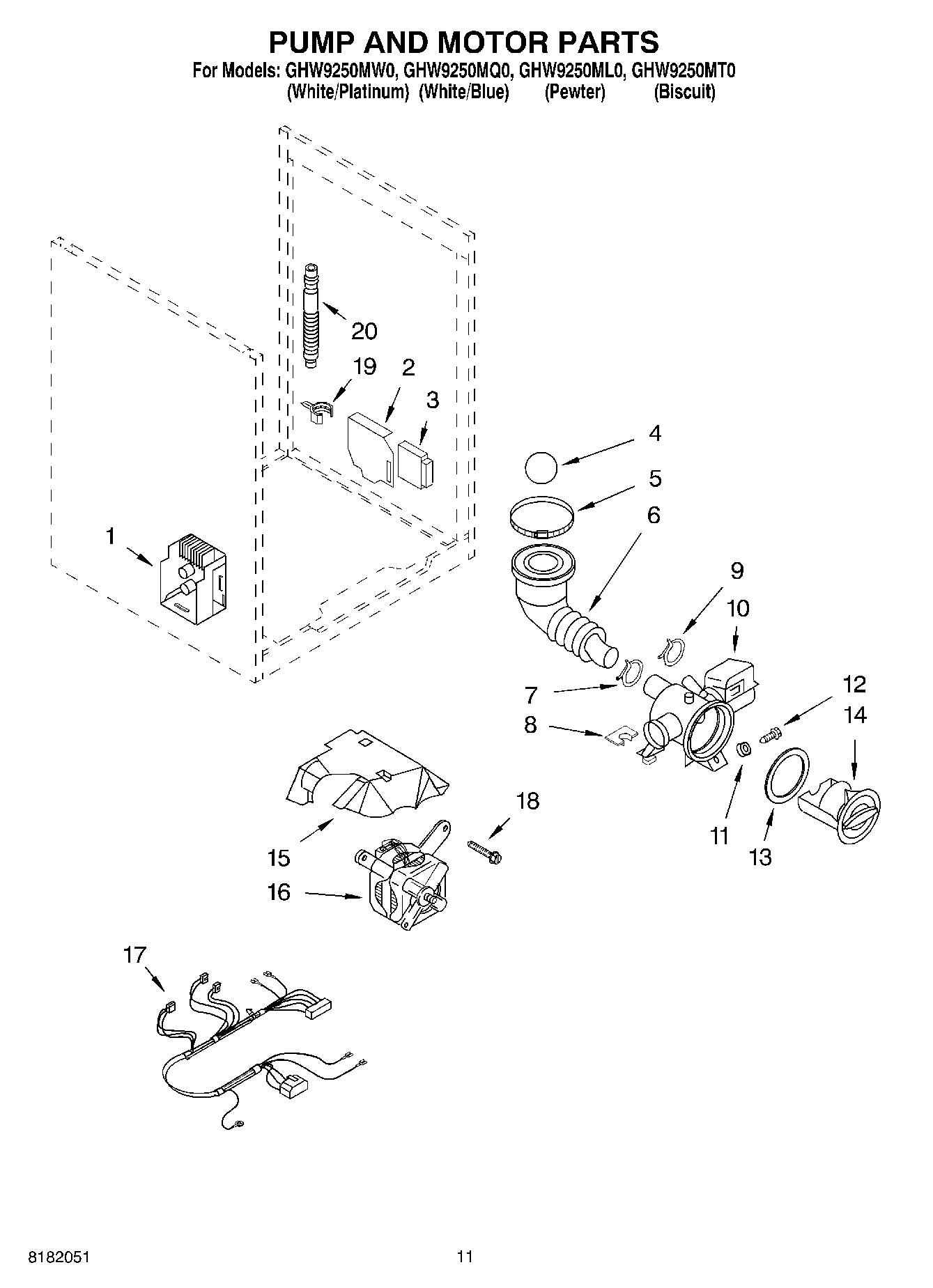

GHW9250ML0 06 – PUMP AND MOTOR PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	W10756692-includeCORE Whirlpool W10756692 Washer Electronic Motor Control Board + Core
2	Bracket, Relay
3	RELAY
4	W10121657 Whirlpool Ball
5	WP696392 Whirlpool Hose Clamp
6	WPW10467168 Whirlpool Hose Assembly
7	WP285655 Whirlpool Hose Clamp
8	Damper, Rubber (Rear)
9	WP3367052 Whirlpool Hose Clamp
10	280187 Whirlpool Washer Electronic Water Drain Pump
11	Damper, Rubber (Front)
12	Screw
13	Seal, Filter Cap
14	Cap, Filter
15	Cover, Motor
16	Motor
17	Harness, Motor
18	Bolt, Motor
19	8182209 Whirlpool Clip
20	WPW10003250 Whirlpool Hose
20	SHIPPING KIT
20	W10289554A Whirlpool Bolt Kit
20	350938 Whirlpool Spray Gun
20	72017 Whirlpool Appliance Touch-Up Paint White
20	799344 Whirlpool Refrigerator Paint
20	4392899 Whirlpool Biscuit Touch-Up Paint
20	4392901 Whirlpool Biscuit Spray Paint
20	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
20	285863 Whirlpool Drain Hose Extension 4'
20	WP4396174 Whirlpool Touch-Up Paint
20	PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
20	350930 Whirlpool White Spray Paint
20	ACCESSORY PARTS
