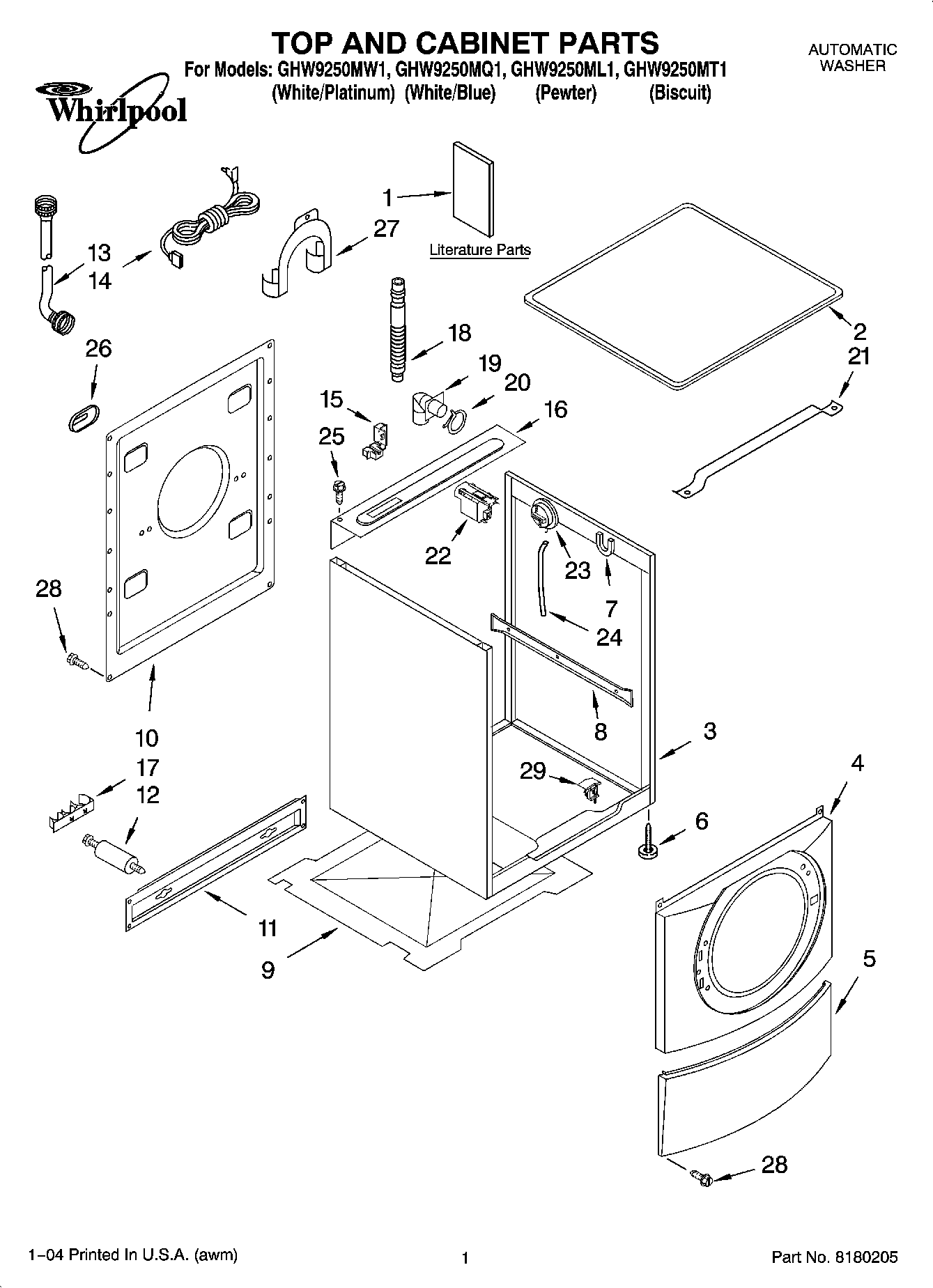

GHW9250MT1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Literature Parts (Quick Start Guide)
1	Literature Parts (Dispenser Guide)
1	Literature Parts (Energy Guide)
1	Literature Parts (DVD-Instruction)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Tech Sheet)
2	Top (Biscuit)
2	Top (White)
2	Top (Pewter)
3	Cabinet (Biscuit)
3	Cabinet (White)
3	Cabinet (Pewter)
4	Panel, Front (Pewter)
4	Panel, Front (White)
4	Panel, Front (Biscuit)
5	Toe Panel (Pewter)
5	Toe Panel (White)
5	Toe Panel (Biscuit)
6	Foot, Leveling
7	WP8181763 Whirlpool Bracket Assembly
8	Brace, Side Panel
9	Pan, Bottom
10	Panel, Rear
11	WPW10003040 Whirlpool Brace
12	W10289554A Whirlpool Bolt Kit
13	WP76314 Whirlpool Fill Hose
14	WP8183009 Whirlpool Power Cord
15	8182635 Whirlpool Strain Relief
16	Brace, Rear
17	Clamp, Tube Transportation
18	WP8181737 Whirlpool Hose
19	Connector, Drain Hose
20	WP3367052 Whirlpool Hose Clamp
21	Brace, Top
22	WPW10367632 Whirlpool Filter
23	WPW10514214 Whirlpool Water Level Switch
24	WPW10004260 Whirlpool Pressure Switch Hose
25	Screw
26	WP8540268 Whirlpool Cover Assembly
27	WPW10280024 Whirlpool Retainer
28	WP488729 Whirlpool Refrigerator Door Screw
29	Harness Channel
29	WPW10085220 Whirlpool Switch
29	FOLLOWING PARTS NOT ILLUSTRATED
