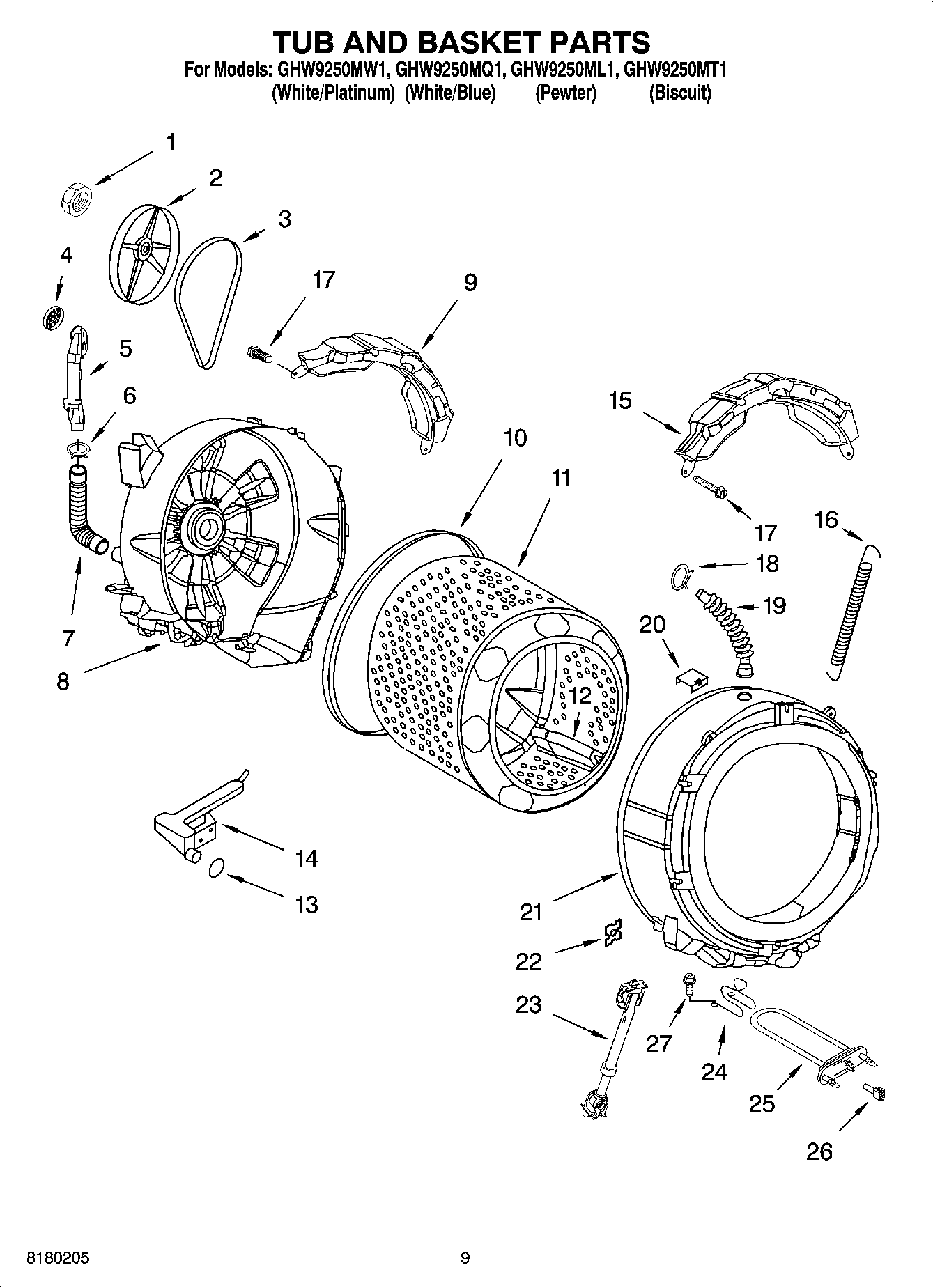

GHW9250MT1 05 – TUB AND BASKET PARTS

Products

Position	Product
1	WPW10283361 Whirlpool Nut
2	WP8182650 Whirlpool Pulley
3	WPW10388414 Whirlpool Washer Drive Belt
4	Grid, Ventilation
5	Pipe, Ventilation
6	Clamp
7	WP8181743 Whirlpool Hose Assembly
8	W10772618 Whirlpool Outer Tub Assembly
9	Counterweight, Rear
10	Gasket, Tub
11	Basket
12	285976 Whirlpool Baffle Kit Assembly
13	WPW10250553 Whirlpool O-Ring
14	Airtrap
15	WPW10008880 Whirlpool Counterweight Assembly
16	W10135004 Whirlpool Spring Assembly
17	Bolt
18	WP3367052 Whirlpool Hose Clamp
19	WP8181794 Whirlpool Dispenser Hose
20	WP8540092 Whirlpool Clamp
21	W10772607 Whirlpool Outer Tub
22	WP8182512 Whirlpool Nut Assembly
23	WP8182703 Whirlpool Shock Absorber
24	W10250558 Whirlpool Bracket Assembly
25	WPW10426377 Whirlpool Heater Assembly
26	WPW10467289 Whirlpool Sensor
27	WPY706189 Whirlpool Stove Screw
27	W11230114 Whirlpool Screw Assembly
27	FOLLOWING PARTS NOT ILLUSTRATED
