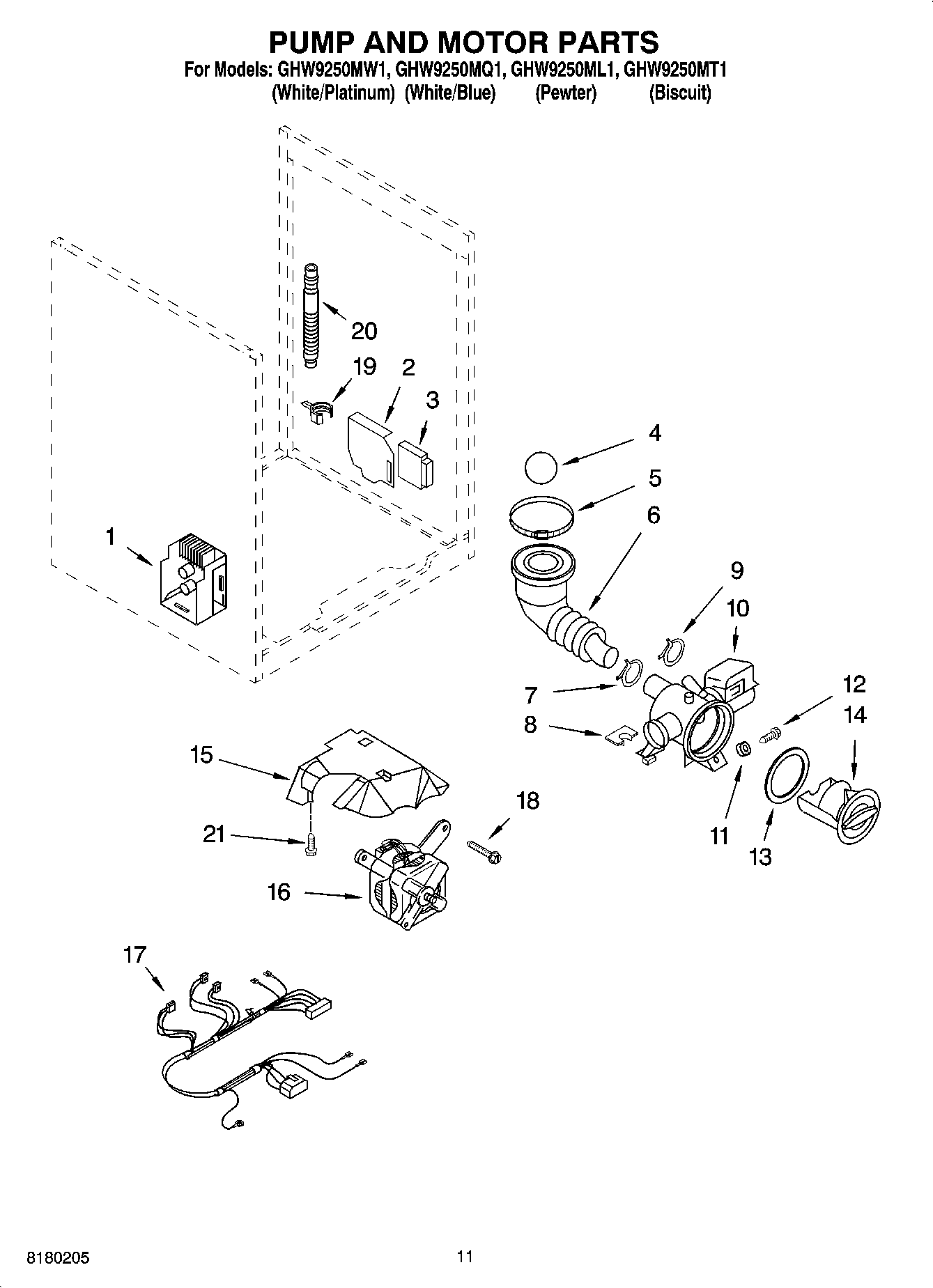

GHW9250MT1 06 – PUMP AND MOTOR PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	W10756692-includeCORE Whirlpool W10756692 Washer Electronic Motor Control Board + Core
2	Bracket, Relay
3	RELAY
4	W10121657 Whirlpool Ball
5	WP696392 Whirlpool Hose Clamp
6	WPW10467168 Whirlpool Hose Assembly
7	WP285655 Whirlpool Hose Clamp
8	Damper, Rubber (Rear)
9	WP3367052 Whirlpool Hose Clamp
10	280187 Whirlpool Washer Electronic Water Drain Pump
11	Damper, Rubber (Front)
12	Screw
13	Seal, Filter Cap
14	Cap, Filter
15	Cover, Motor
16	Motor
17	Harness, Motor
18	Bolt, Motor
19	8182209 Whirlpool Clip
20	WPW10003250 Whirlpool Hose
21	Screw
21	350930 Whirlpool White Spray Paint
21	350938 Whirlpool Spray Gun
21	72017 Whirlpool Appliance Touch-Up Paint White
21	799344 Whirlpool Refrigerator Paint
21	4392899 Whirlpool Biscuit Touch-Up Paint
21	4392901 Whirlpool Biscuit Spray Paint
21	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
21	285863 Whirlpool Drain Hose Extension 4'
21	WP4396174 Whirlpool Touch-Up Paint
21	PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
21	ACCESSORY PARTS
