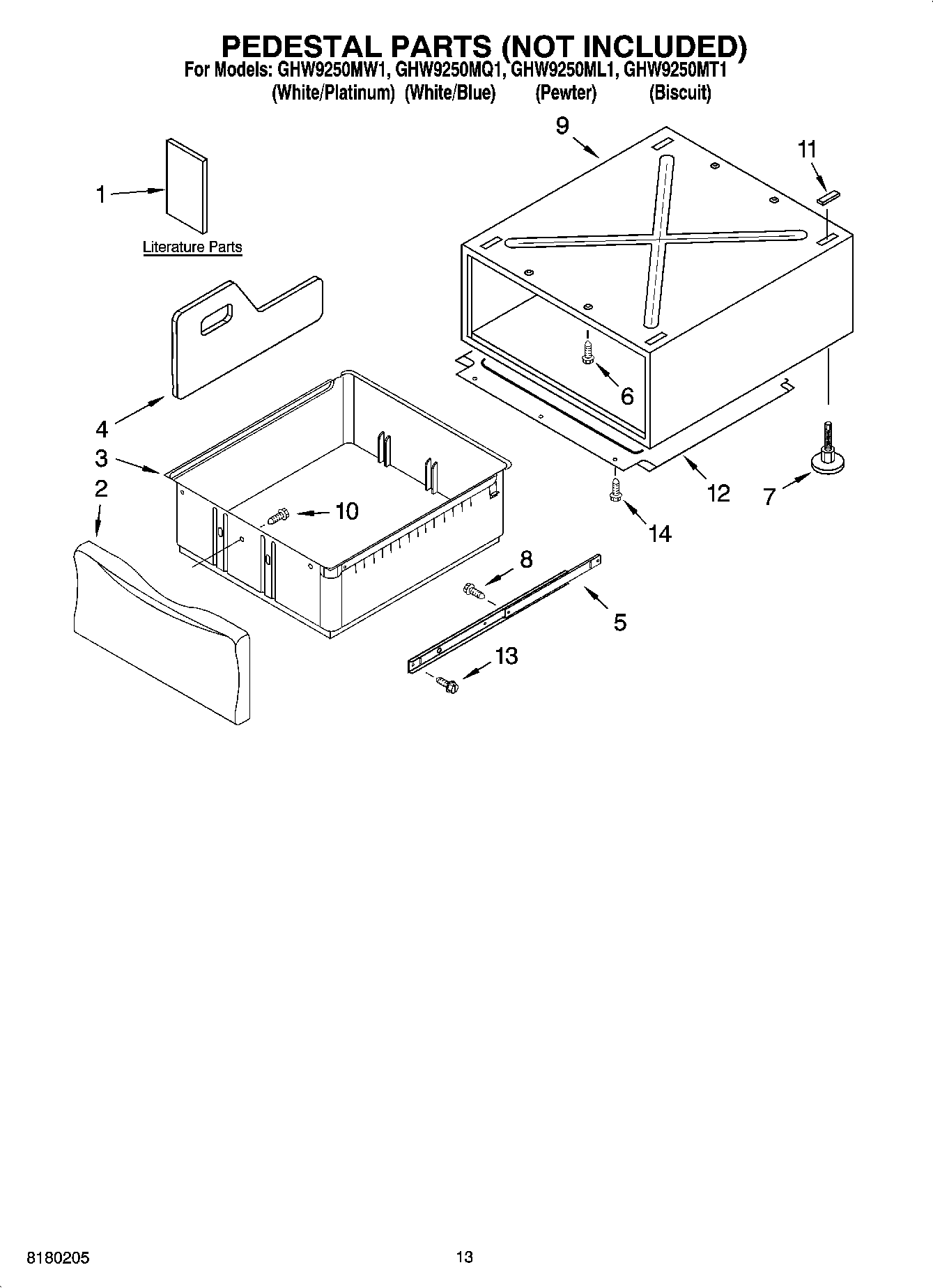

GHW9250MT1 07 – PEDESTAL PARTS (NOT INCLUDED)

GHW9250MT1 07 – PEDESTAL PARTS (NOT INCLUDED)

Written by

in

GHW9250MT1 07 – PEDESTAL PARTS (NOT INCLUDED)

Products

PositionProduct
PED2700A
1Literature Parts (Parts List)
1Literature Parts (Installation Instructions)
2LAB2700ML
2Drawer Front Assembly (Pewter)
2Drawer Front Assembly (Meteorite)
2For LAB2700PMT
2For LAB2700PMT
2LAB2700ML
2Drawer Front Assembly (Graphite)
2Drawer Front Assembly (Biscuit)
2Drawer Front Assembly (White)
5WP8578394 Whirlpool Slide Assembly
6WPW10346892 Whirlpool Screw
7WP8563585 Whirlpool Foot Assembly
8WP3388228 Whirlpool Screw
9Cabinet (Not Serviced)
10WP1163283 Whirlpool Air Conditioner Screw
11Pad (4)
12Pan, Bottom
13WP9740848 Whirlpool Dishwasher Screw
14WP90767 Whirlpool Screw
