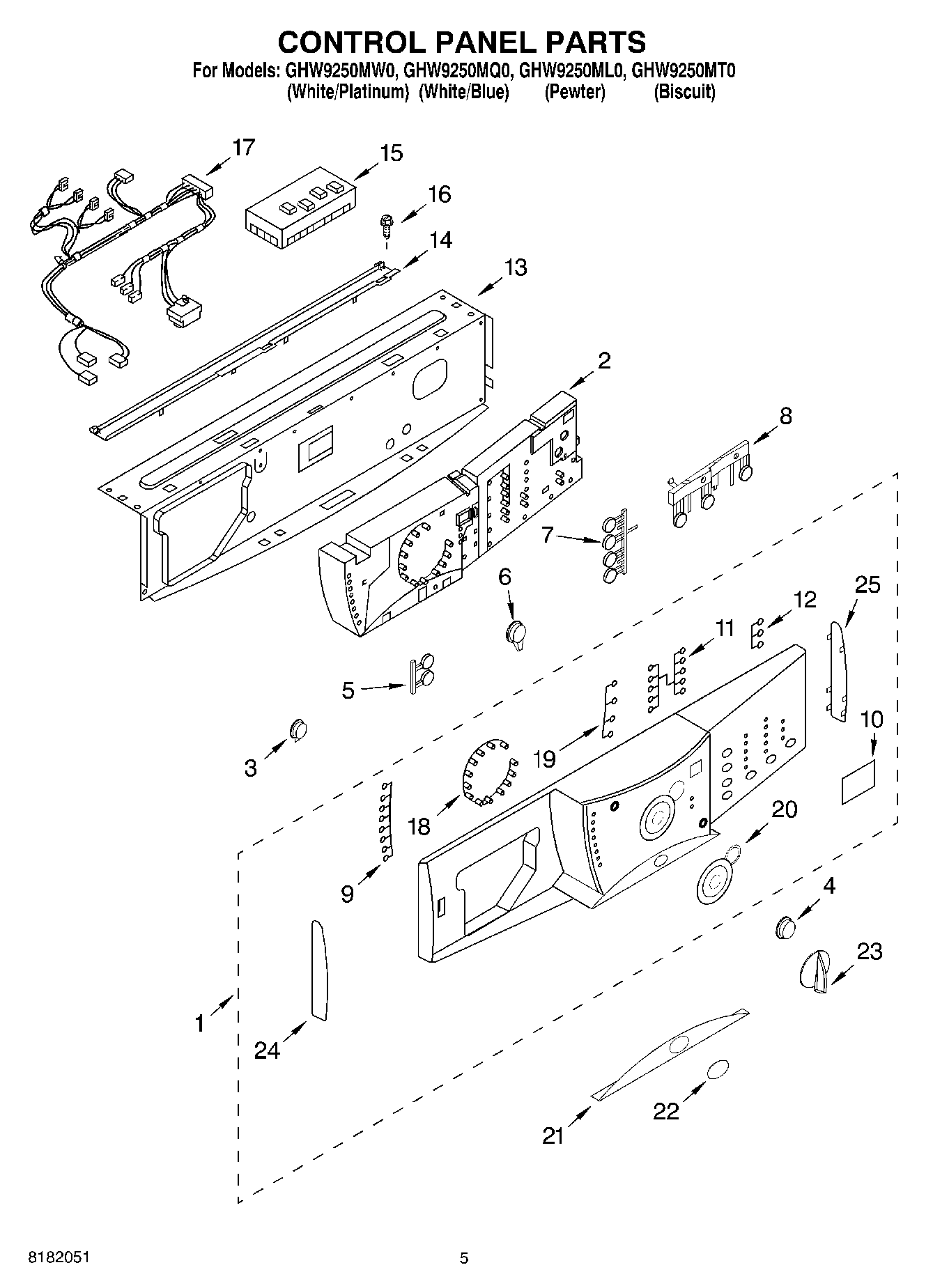

GHW9250MW0 03 – CONTROL PANEL PARTSadmin2025-04-26T11:31:02+00:00GHW9250MW0 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Panel, Control (Platinum) |
| 1 | Panel, Control (Biscuit) |
| 1 | Panel, Control (Pewter) |
| 1 | Panel, Control (Blue) |
| 2 | User Interface |
| 3 | Button, Power |
| 4 | WP8181861 Whirlpool Start Button |
| 5 | Button Set, Soil Level (Platinum) |
| 5 | Button Set, Soil Level (Pewter) |
| 5 | Button Set, Soil Level (Biscuit) |
| 5 | Button Set, Soil Level (Blue) |
| 6 | Button, Pause/Cancel |
| 7 | Button Set, Options (Blue) |
| 7 | Button Set, Options (Platinum) |
| 7 | Button Set, Options (Biscuit) |
| 7 | Button Set, Options (Pewter) |
| 8 | Button Set, Spin/Temperature (Platinum) |
| 8 | Button Set, Spin/Temperature (Blue) |
| 8 | Button Set, Spin/Temperature (Pewter) |
| 8 | Button Set, Spin/Temperature (Biscuit) |
| 9 | Light, Indicator (Status) |
| 10 | Window, Display |
| 11 | Light, Indicator (10 Lights) |
| 12 | Light, Indicator (3 Lights) |
| 13 | Brace, Front Top |
| 14 | Channel, Water |
| 15 | Microcomputer, Machine Control |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | Harness, Wire |
| 18 | Light, Indicator (Program) |
| 19 | Light, Indicator (4 Lights) |
| 20 | Bezel, Knob |
| 21 | Overlay, Door |
| 22 | Medallion |
| 23 | WP8181859 Whirlpool Knob |
| 23 | WP8182050 Whirlpool Knob |
| 23 | WP8182049 Whirlpool Knob |
| 23 | WP8181881 Whirlpool Knob |
| 24 | Endcap, Left (White) |
| 24 | Endcap, Left (Pewter) |
| 24 | Endcap, Left (Biscuit) |
| 25 | Endcap, Right (White) |
| 25 | Endcap, Ri |
| 25 | WPL 8182067 |
