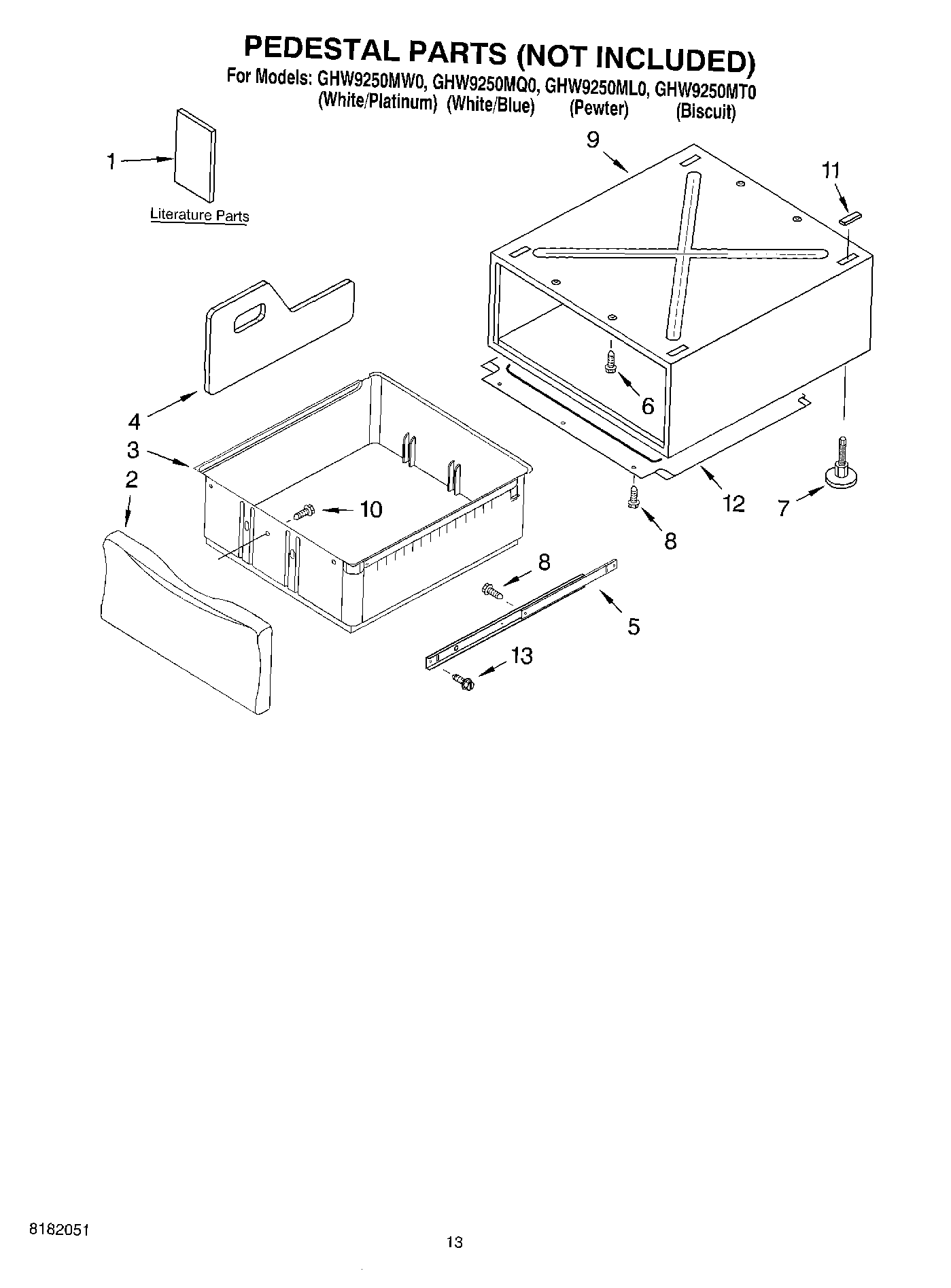

GHW9250MW0 07 – PEDESTAL PARTS (NOT INCLUDED)

GHW9250MW0 07 – PEDESTAL PARTS (NOT INCLUDED)

Written by

in

GHW9250MW0 07 – PEDESTAL PARTS (NOT INCLUDED)

Products

PositionProduct
1Literature Parts (Parts List)
1Literature Parts (Installation Instructions)
2Drawer Front Assembly (Pewter)
2Drawer Front Assembly (Graphite)
2Drawer Front Assembly (White)
2Drawer Front Assembly (Biscuit)
3Drawer Bin (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
4Divider, Drawer (Set Of 2) (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
5WP8578394 Whirlpool Slide Assembly
6WPW10346892 Whirlpool Screw
7WP8563585 Whirlpool Foot Assembly
8WP3388228 Whirlpool Screw
9Cabinet (Not Serviced)
10WP1163283 Whirlpool Air Conditioner Screw
11Pad (4)
12Pan, Bottom
133400618 Whirlpool Screw
