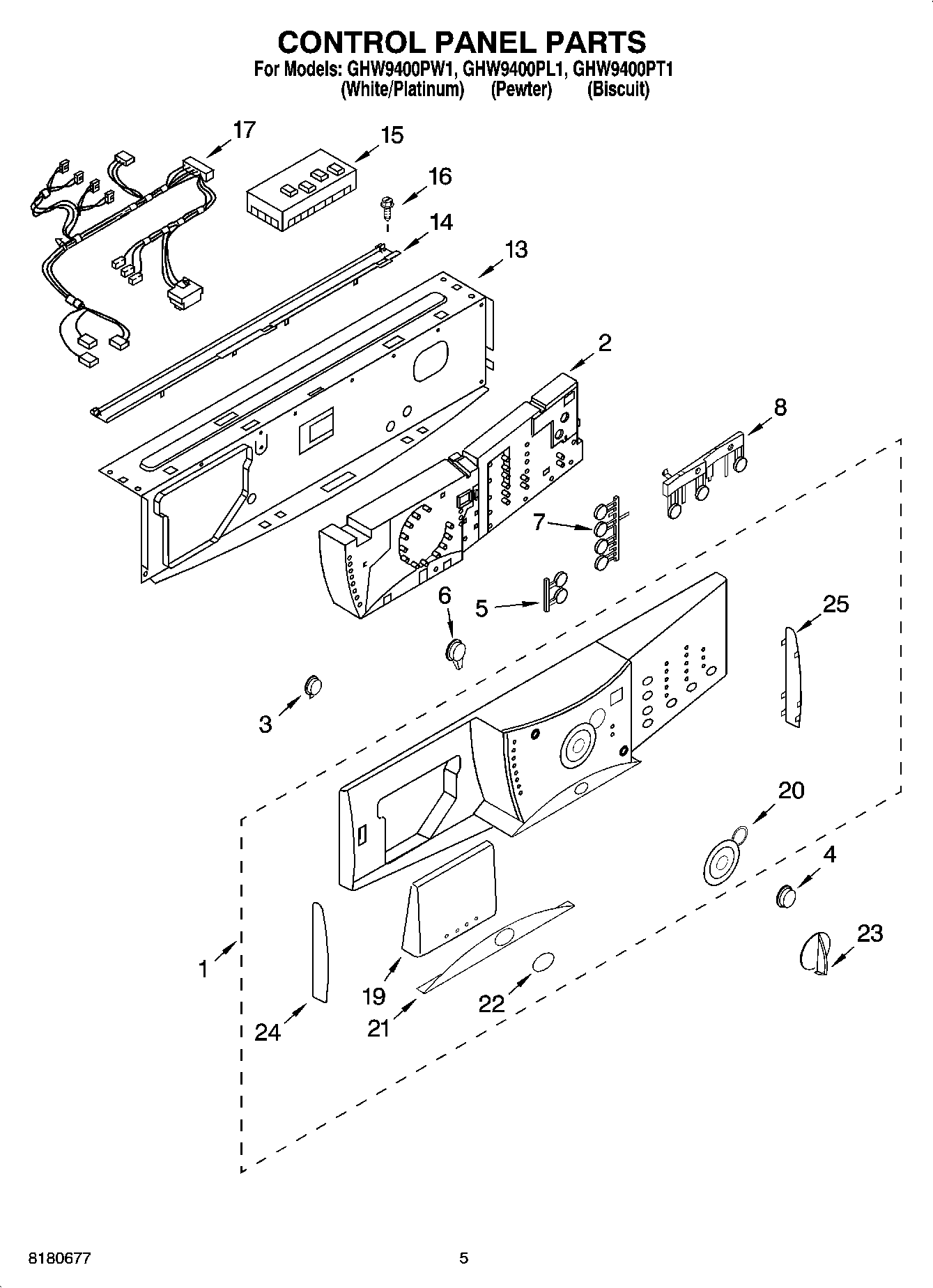

GHW9400PL1 03 – CONTROL PANEL PARTSadmin2025-04-26T11:30:38+00:00GHW9400PL1 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Panel, Control (Biscuit) |
| 1 | Panel, Control (Pewter) |
| 1 | Panel, Control (Platinum) |
| 2 | User Interface |
| 3 | Button, Power |
| 4 | WP8181861 Whirlpool Start Button |
| 5 | Button Set, Soil Level (Biscuit) |
| 5 | Button Set, Soil Level (Pewter) |
| 5 | Button Set, Soil Level (Platinum) |
| 6 | Button, Pause/Cancel |
| 7 | Button Set, Options (Platinum) |
| 7 | Button Set, Options (Pewter) |
| 7 | Button Set, Options (Biscuit) |
| 8 | Button Set, Spin/Temperature (Platinum) |
| 8 | Button Set, Spin/Temperature (Pewter) |
| 8 | Button Set, Spin/Temperature (Biscuit) |
| 13 | Brace, Front Top |
| 14 | Channel, Water |
| 15 | WP8182697-includeCORE Whirlpool WP8182697 Washer Electronic Control Board + Core |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | Harness, Wiring (Main) |
| 19 | Handle, Drawer (Platinum) |
| 19 | Handle, Drawer (Pewter) |
| 19 | Handle, Drawer (Biscuit) |
| 20 | Bezel, Knob |
| 21 | Overlay, Door |
| 22 | Medallion |
| 23 | WP8181859 Whirlpool Knob |
| 23 | WP8182049 Whirlpool Knob |
| 23 | WP8182050 Whirlpool Knob |
| 24 | Endcap, Left (Biscuit) |
| 24 | Endcap, Left (Pewter) |
| 24 | Endcap, Left (White) |
| 25 | Endcap, Right (White) |
| 25 | Endcap, Ri |
| 25 | WPL 8182067 |
