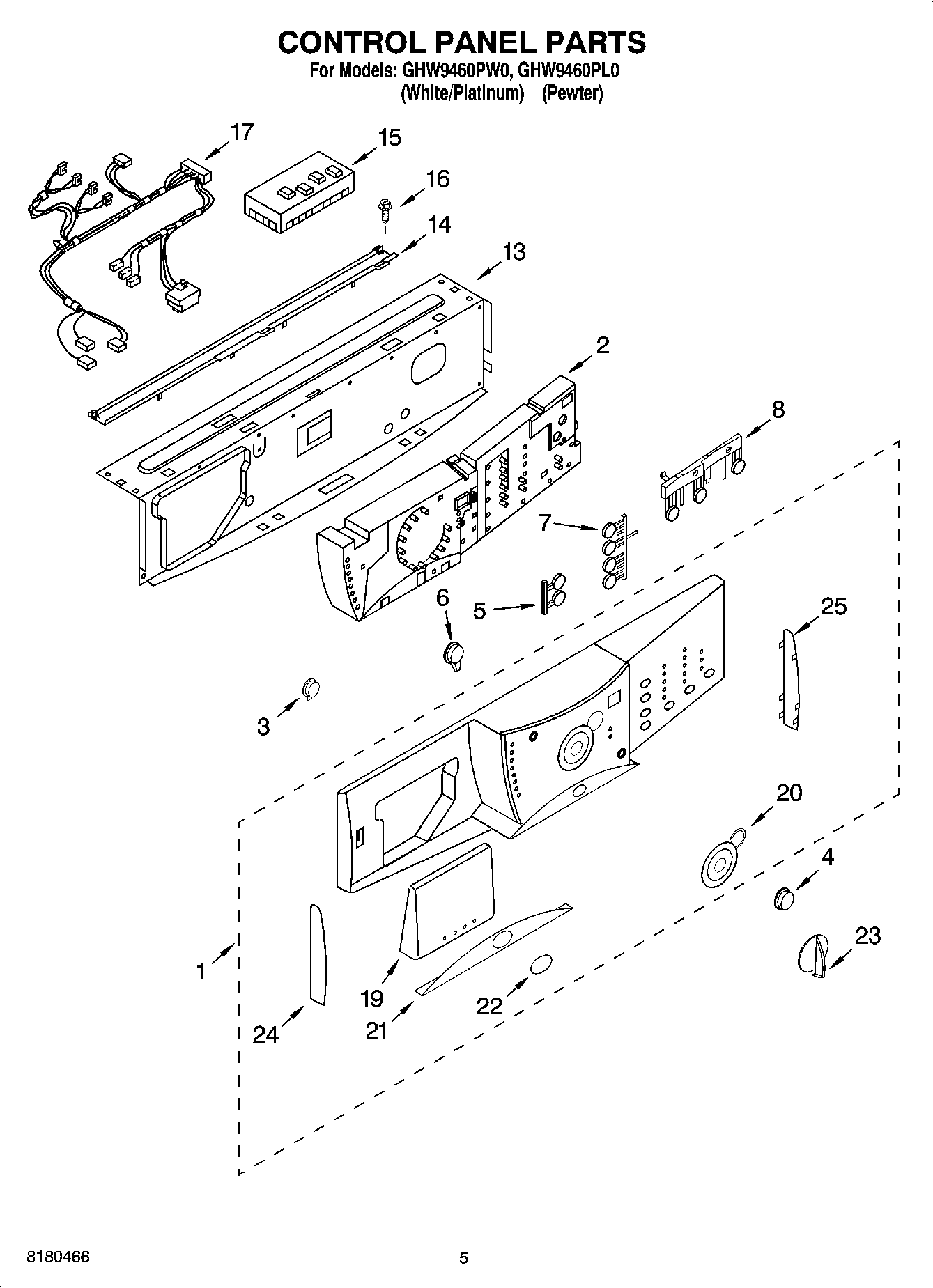

GHW9460PL0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control (Platinum)
1	Panel, Control (Pewter)
2	User Interface
3	Button, Power
4	WP8181861 Whirlpool Start Button
5	Button Set, Soil Level (Pewter)
5	Button Set, Soil Level (Platinum)
6	Button, Pause/Cancel
7	Button Set, Options (Platinum)
7	Button Set, Options (Pewter)
8	Button Set, Spin/Temperature (Platinum)
8	Button Set, Spin/Temperature (Pewter)
13	Brace, Front Top
14	Channel, Water
15	Microcomputer, Machine Control
16	WP488729 Whirlpool Refrigerator Door Screw
17	Harness, Wiring (Main)
19	Handle, Drawer (Platinum)
19	Handle, Drawer (Pewter)
20	Bezel, Knob
21	Overlay, Door
22	Medallion
23	WP8182050 Whirlpool Knob
23	WP8181859 Whirlpool Knob
24	Endcap, Left (Pewter)
24	Endcap, Left (White)
25	Endcap, Ri
25	Endcap, Right (White)
