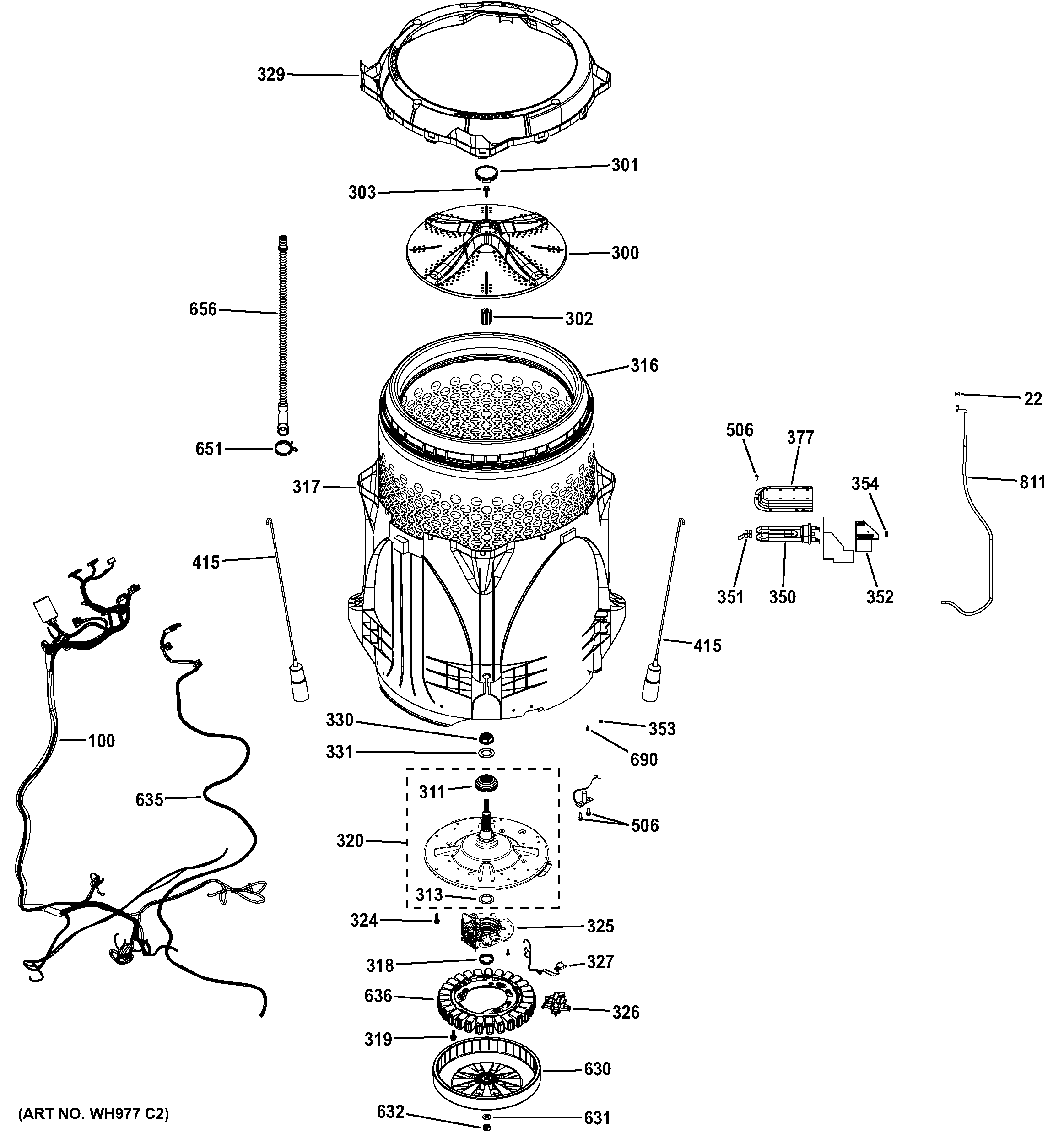

GHWN8350D0WS TUB & MOTOR

GHWN8350D0WS TUB & MOTOR

Written by

in

GHWN8350D0WS TUB & MOTOR

Products

PositionProduct
22WH01X10710 GE Clamp
100GEN WH19X10116
300GEN WH43X10060
301GEN WH01X10669
302GEN WH01X10676
303WH02X10382 GE Washing Machine Screw 1/4 20 2a Sinuloc
311GEN WH02X10362
313WH01X10759 GE Washer Spring
316GEN WH45X10125
317GEN WH45X10124
318GEN WH01X10758
319WH02X10380 GE Screw 5/16-24 2A Sinuloc
320WH38X24734 GE Washer Drive Shaft
324WH02X10376 GE Platform Screw
325WH49X24834 GE Washer Shift Actuator
326WH12X23995 GE Rotor Position Sensor
329GEN WH45X10123
330WH02X10363 GE Washer Spanner Nut
331WH02X10364 GE Washer Hub
353WH01X10677 GE Thermistor O-Ring
377GEN WH44X10309
415WH16X10168 GE Rod and Spring Assembly
506WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
630WH39X10011 GE Rotor Motor
631WH02X10389 GE Washer Conical Spring
632WH01X10691 GE Hex Nut 7/16-20
635GEN WH19X10107
636WH39X20678 GE Stator
651WH1X2036 GE UNIX Clamp
656GEN WH41X10324
811GEN WH41X10330
