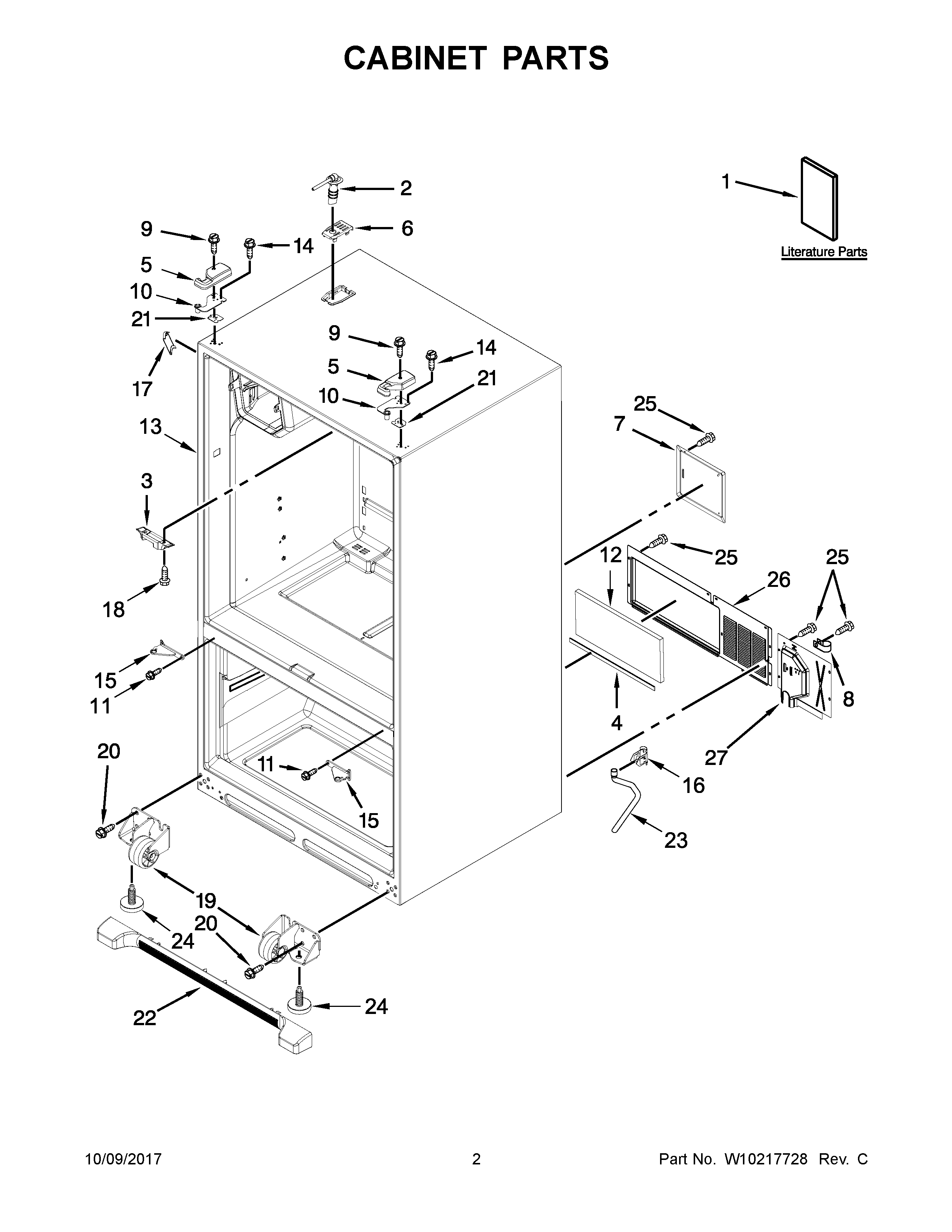

GI0FSAXVQ00 02 – CABINET PARTS

GI0FSAXVQ00 02 – CABINET PARTS

Written by

in

GI0FSAXVQ00 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1AUSE & CARE GUIDE
1BGUIDE, ENERGY
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4Gasket
5EWPW10191117 Whirlpool Refrigerator Cover
5C67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
5DWP67005956 Whirlpool Refrigerator Cover
5AW10337647 Whirlpool Refrigerator Cover
5BWPW10337648 Whirlpool Refrigerator Cover
5WPW10337634 Whirlpool Refrigerator Cover
6A12981401B Whirlpool Refrigerator Filtration Cover
6BW10191141 Whirlpool Refrigerator Tube Cover
612981401W Whirlpool Refrigerator Cover Filter
7COVER, CONTROL BOX
8W10833902 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10AW11592374 Whirlpool Refrigerator Top Door Hinge
10W11592375 Whirlpool Door Hinge
11WP67006380 Whirlpool Screw
1267003796 Whirlpool Refrigerator Fiber Acoustic
13CABINET (NOT A SERVICEABLE PART)
14WP489349 Whirlpool Refrigerator Screw
15W10918113 Whirlpool Refrigerator Door Hinge
15BW10917988 Whirlpool Refrigerator Door Hinge
15CHINGE, CENTER RIGHT HAND (WHITE)
15DW10918168 Whirlpool Refrigerator Door Hinge
15AW10918164 Whirlpool Refrigerator Door Hinge
16Clip, Drain Tube
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
17BWP12587703AP Whirlpool Refrigerator Filler
1767003484 Whirlpool Refrigerator White Corner Cover
18SCREW
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22AWPW10131134 Whirlpool Refrigerator Front Grille
22Grille Assembly (Includes Clips) (White)
22BWPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W10164397 Whirlpool Refrigerator Drain Tube
24WPW10141622 Whirlpool Leveler
2567006425 Whirlpool Refrigerator Screw
26Cover, Unit
27WPL 12701908
