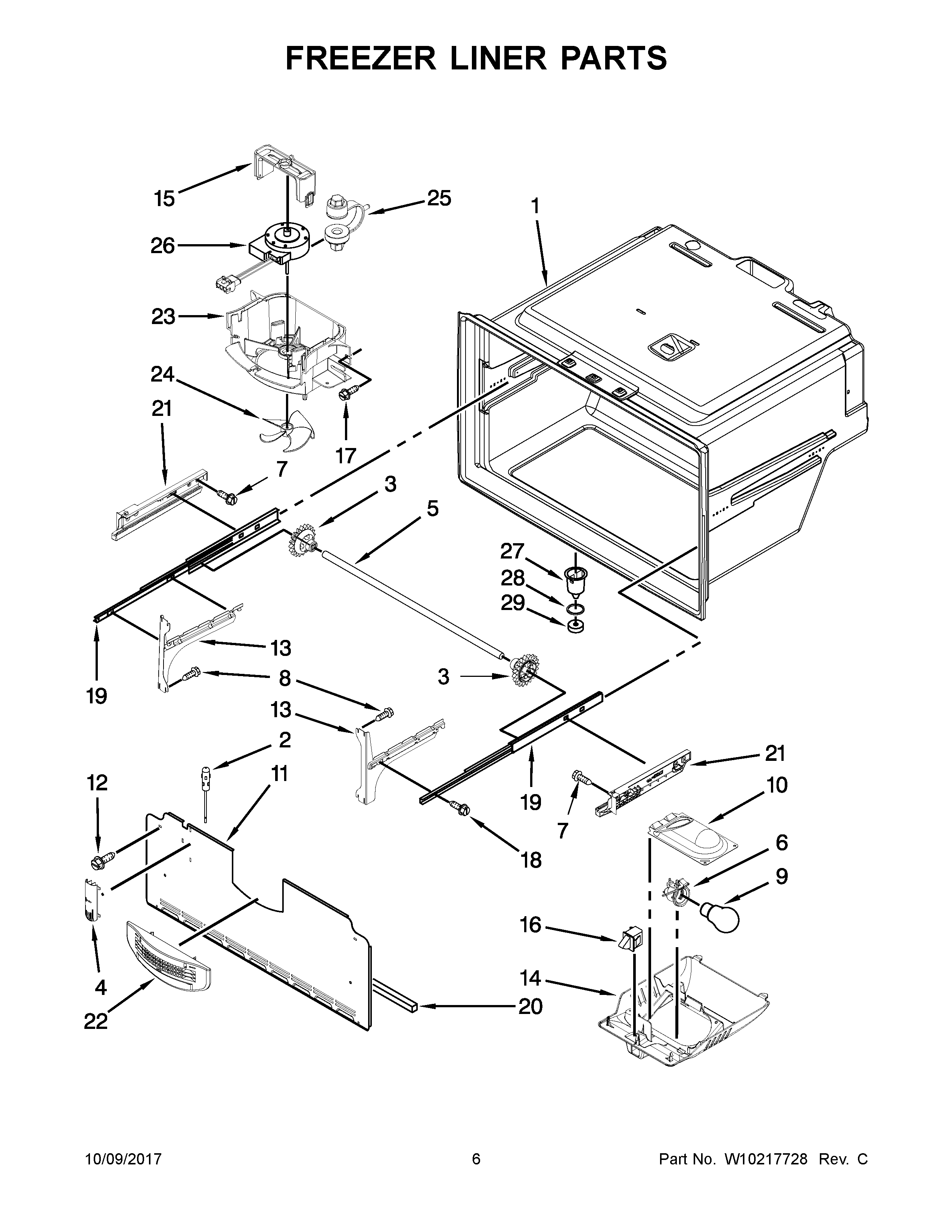

GI0FSAXVQ00 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	12002355 Whirlpool Refrigerator Thermistor Kit
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	WP67003924 Whirlpool Refrigerator Cover
5	W11028221 Whirlpool Refrigerator Shaft
6	W11447232 Whirlpool Refrigerator Socket
7	WP489474 Whirlpool Refrigerator Screw
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	Housing, Light
11	COVER, EVAPORATOR
12	67006425 Whirlpool Refrigerator Screw
13	WPW10330994 Whirlpool Refrigerator Bracket
13A	WPW10330991 Whirlpool Refrigerator Bracket
14	MODULE, FREEZER LIGHT
15	W11712696 Whirlpool Clip
16	W11445850 Whirlpool Door Switch
17	WP98165 Whirlpool Screw
18	WP3400805 Whirlpool Screw Assembly
19	W11658403 Whirlpool Slide
20	W11451451 Whirlpool Refrigerator Gasket
21A	ADAPTER (RIGHT HAND)
21	ADAPTER (LEFT HAND)
22	W11176847 Whirlpool Refrigerator Grille
23	W11700329 Whirlpool Evaporator Shroud
24	WP67006337 Whirlpool Refrigerator Fan Blade
25	W11676465 Whirlpool Grommet
26	W10850438 Whirlpool Refrigerator Evaporator Motor
27	W10815413 Whirlpool Refrigerator Funnel
28	WPM0500703 Whirlpool Refrigerator O-Ring Seal
29	WPB8381501 Whirlpool Refrigerator Door Gasket
