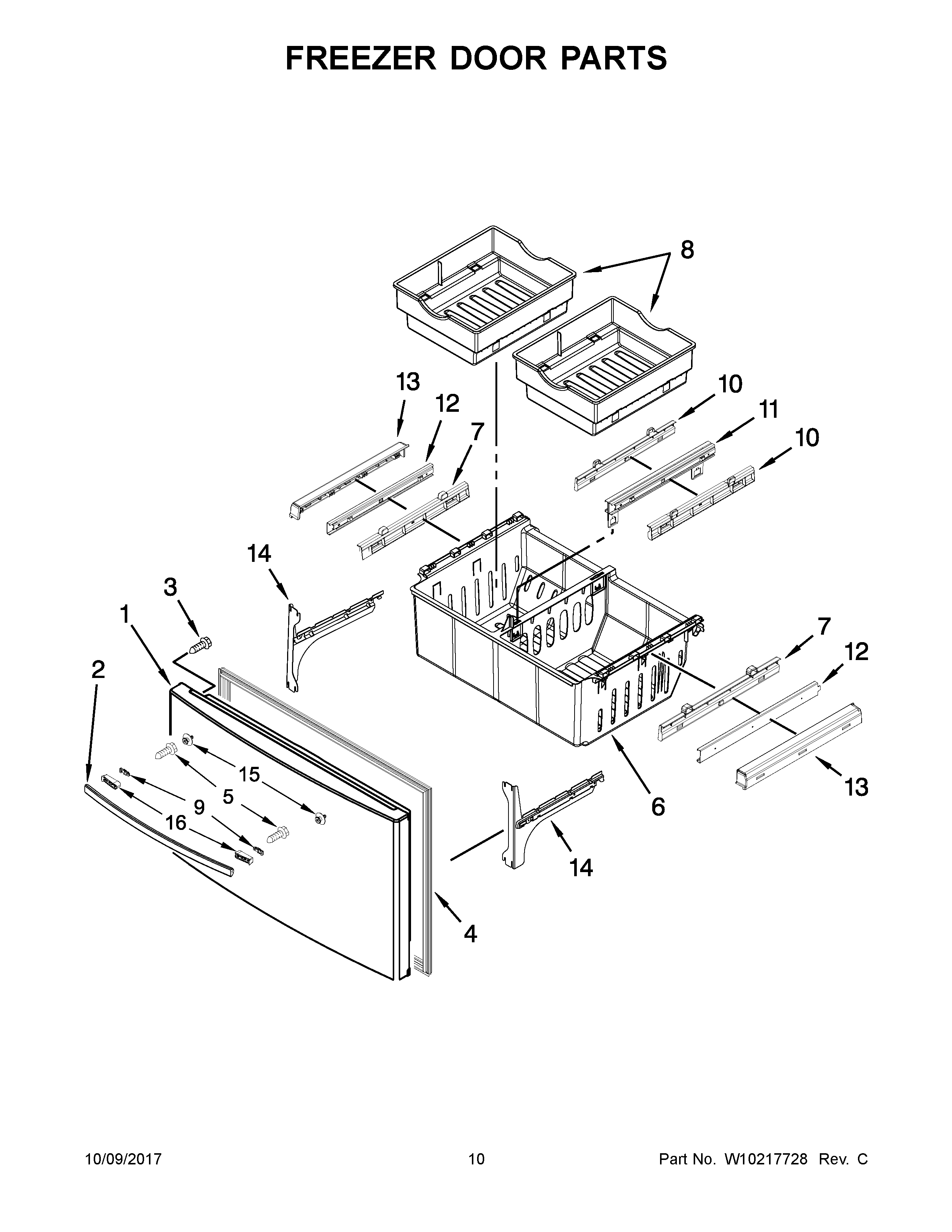

GI0FSAXVQ00 06 – FREEZER DOOR PARTS

Products

Position	Product
1	12977863WQ Whirlpool Refrigerator Door Flipper White
1A	DOOR, FREEZER (BLACK)
1B	DOOR, FREEZER (SATINA)
1C	DOOR, FREEZER (STAINLESS)
2B	WPW10223025K Whirlpool Refrigerator Handle
2A	HANDLE, DOOR (BLACK)
2	HANDLE, DOOR (WHITE)
3	12991101 Whirlpool Refrigerator Screw
4B	GASKET-FIP
4	WPW10443321 Whirlpool Door Gasket
4A	WPW10436253 Whirlpool Refrigerator Black Freezer Door Gasket
5	WP3387230 Whirlpool Screw
6	BIN, LOWER
7	W10187469 Whirlpool Refrigerator Bracket
8	W10184227 Whirlpool Refrigerator Freezer Bin
9	Clip, Handle
10	W10184223 Whirlpool Refrigerator Bracket
11	W10235358 Whirlpool Refrigerator Glide
12	WPW10235368 Whirlpool Refrigerator Glide
13A	W10826791 Whirlpool Refrigerator Retainer
13	W10826790 Whirlpool Refrigerator Retainer
14A	WPW10330991 Whirlpool Refrigerator Bracket
14	WPW10330994 Whirlpool Refrigerator Bracket
15	WP12992902 Whirlpool Refrigerator Screw
16	ENDCAP, HANDLE (WHITE)
16A	ENDCAP, HANDLE (BLACK)
16B	ENDCAP, HANDLE (STAINLESS)
