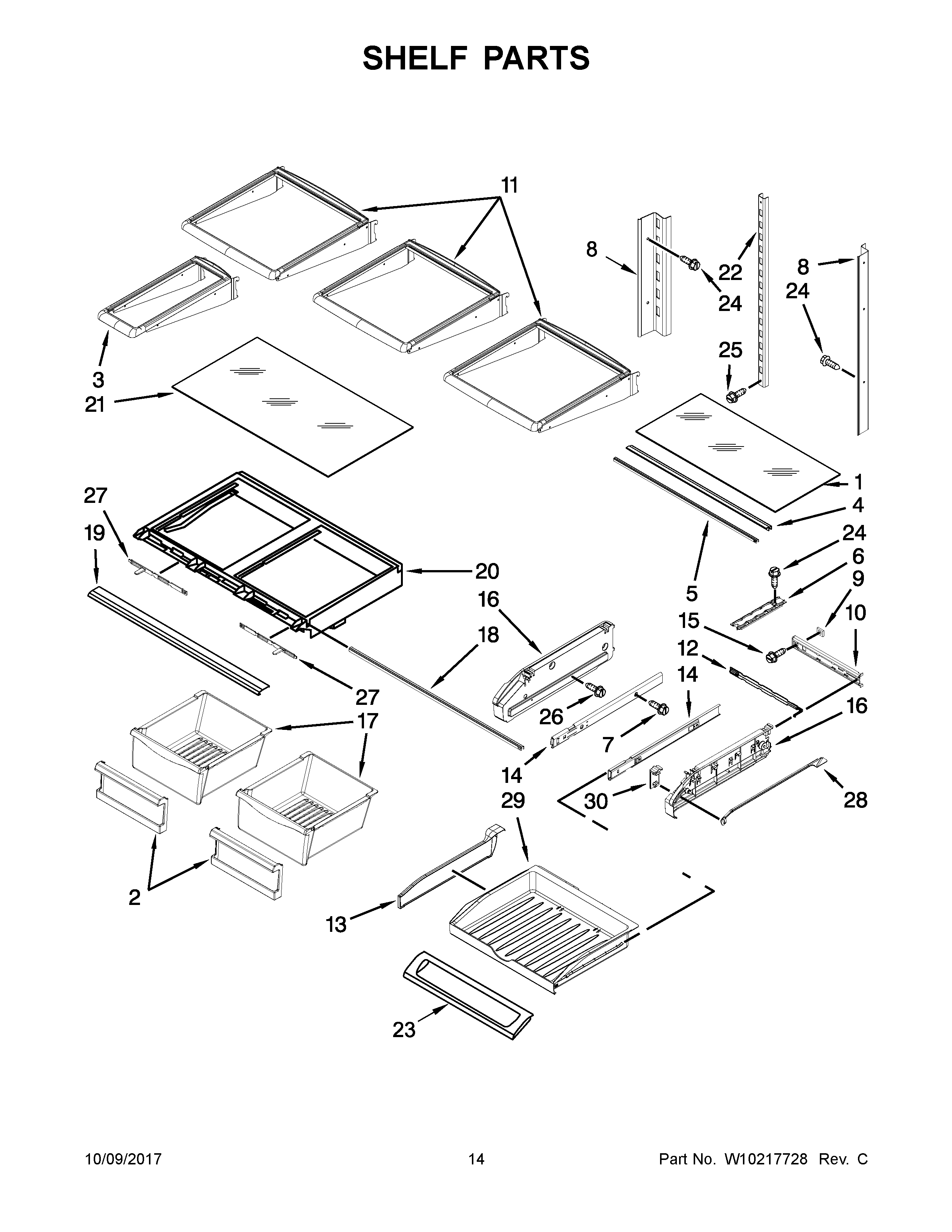

GI0FSAXVQ00 08 – SHELF PARTS

GI0FSAXVQ00 08 – SHELF PARTS

Written by

in

GI0FSAXVQ00 08 – SHELF PARTS

Products

PositionProduct
1WP67002332 Whirlpool Refrigerator Glass Pan
2WP67005923 Whirlpool Refrigerator Front Cover
3W10187463 Whirlpool Refrigerator Shelf Assembly
4WP67006010 Whirlpool Refrigerator Shelf Trim
5WP12227305WD Whirlpool Drawer Support
6WP67001719 Whirlpool Refrigerator Track
7WP98165 Whirlpool Screw
8LADDER, SIDE (LEFT HAND)
8ALADDER, SIDE (RIGHT HAND)
967002329 Whirlpool Refrigerator Pantry Gasket
1012656202 Whirlpool Refrigerator Housing
11WP12463912 Whirlpool Refrigerator Glass Shelf
12WP67003793 Whirlpool Refrigerator Temperature Slide
13WP67002321 Whirlpool Refrigerator Divider Panel
14WPW10235370 Whirlpool Refrigerator Glide
16WP12656105 Whirlpool Drawer Support
16AWP12656018 Whirlpool Drawer Support
17WP67002659 Whirlpool Crisper Pan
18WP12227304WD Whirlpool Refrigerator Drawer Support
19TRIM, CRISPER
20WP67006185 Whirlpool Refrigerator Crisper Frame
21WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
22LADDER, CENTER
23W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
2467006425 Whirlpool Refrigerator Screw
25W10709795 Whirlpool Refrigerator Screw
26WP67006415 Whirlpool Refrigerator Screw
27SLIDE
2867003794 Whirlpool Refrigerator Temperature Control Bar
29W11490183 Whirlpool Refrigerator Utility Pan
30W11498983 Whirlpool Refrigerator Knob
