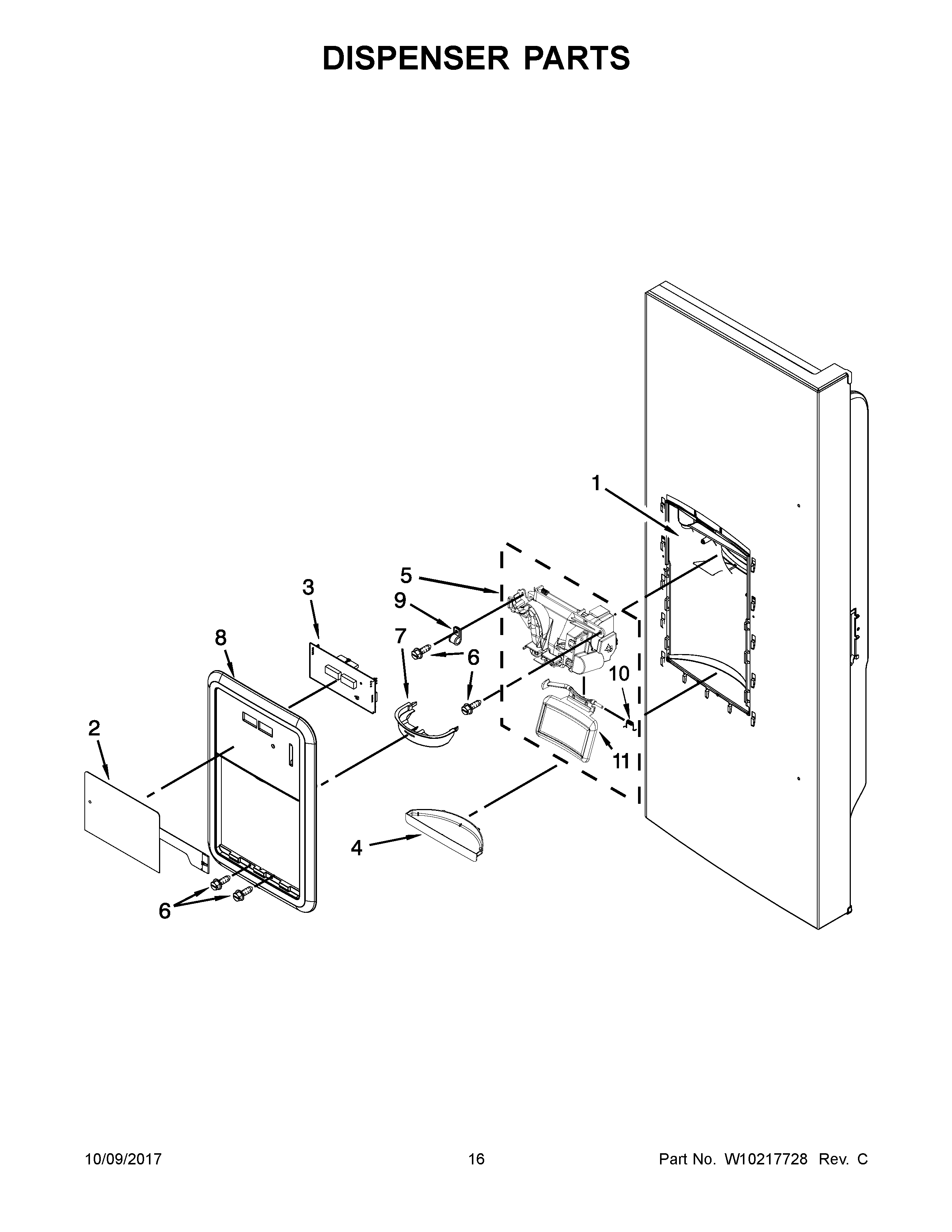

GI0FSAXVQ00 09 – DISPENSER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2B	W10882878 Whirlpool Refrigerator Electronic Control Board
2C	W10740218 Whirlpool Refrigerator Electric Control
2A	W10860143 Whirlpool Refrigerator Electronic Control Board
2	W10882877 Whirlpool Refrigerator White Dispenser Control Board with Touchpad
4A	SUMP, DISPENSER (BLACK)
4	SUMP, DISPENSER (WHITE)
4B	SUMP, DISPENSER (APOLLO GREY (LIGHT))
4C	W11676505 Whirlpool Drip Tray
5	WP13005704W Whirlpool Refrigerator Chute
5A	WP13005704B Whirlpool Ice Chute
5B	WP13005706 Whirlpool Refrigerator Chute
6	67006425 Whirlpool Refrigerator Screw
7	67006295 Whirlpool Refrigerator Target Ring
8	FACADE, DISPENSER (WHITE)
8C	FACADE, DISPENSER (APOLLO GREY (WITH SATINA INSERT))
8A	FACADE, DISPENSER (BLACK)
8B	WPW10310690 Whirlpool Refrigerator Cover
9	M0108106 Whirlpool Refrigerator Clamp
10	WP12565502 Whirlpool Refrigerator Spring
11A	WPW10168729 Whirlpool Refrigerator Pad
11	YOKE/PAD ASSEMBLY (WHITE)
11B	WPW10185234 Whirlpool Refrigerator Pad
