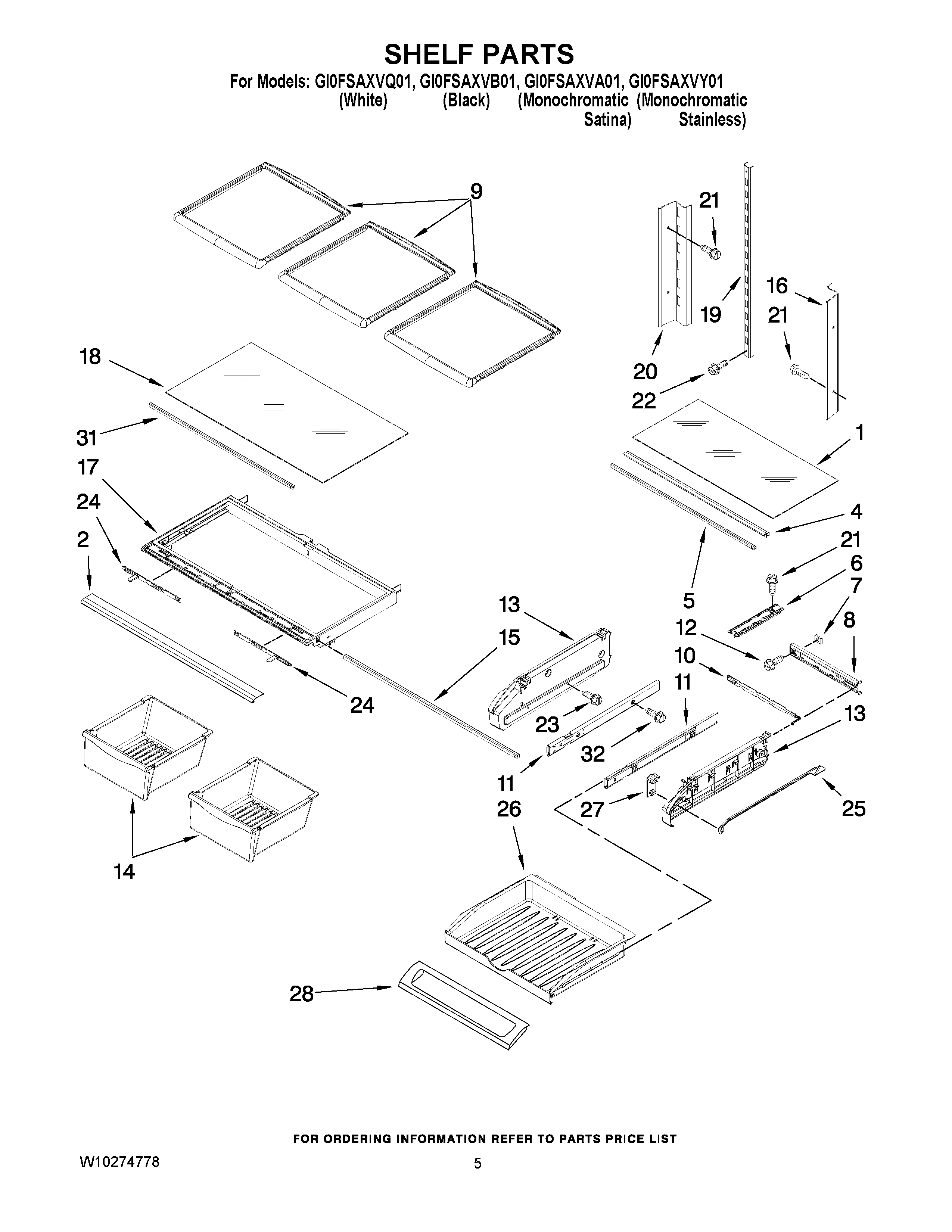

GI0FSAXVQ01 03 – SHELF PARTS

GI0FSAXVQ01 03 – SHELF PARTS

Written by

in

GI0FSAXVQ01 03 – SHELF PARTS

Products

PositionProduct
1W11125512 Whirlpool Refrigerator Glass Shelf
2TRIM, CRISPER
4WP67006010 Whirlpool Refrigerator Shelf Trim
6WP67001719 Whirlpool Refrigerator Track
767002329 Whirlpool Refrigerator Pantry Gasket
812656202 Whirlpool Refrigerator Housing
9WP12463912 Whirlpool Refrigerator Glass Shelf
10WP67003793 Whirlpool Refrigerator Temperature Slide
11WPW10235370 Whirlpool Refrigerator Glide
13WP12656105 Whirlpool Drawer Support
13WP12656018 Whirlpool Drawer Support
14WP67002659 Whirlpool Crisper Pan
15WP12227305WD Whirlpool Drawer Support
16LADDER, SIDE RH
17WP67006185 Whirlpool Refrigerator Crisper Frame
18WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
19LADDER, CENTER
20LADDER, SIDE LH
2167006425 Whirlpool Refrigerator Screw
22W10709795 Whirlpool Refrigerator Screw
23WP67006415 Whirlpool Refrigerator Screw
24SLIDE
2567003794 Whirlpool Refrigerator Temperature Control Bar
26W11490183 Whirlpool Refrigerator Utility Pan
27W11498983 Whirlpool Refrigerator Knob
28W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
31WP12227304WD Whirlpool Refrigerator Drawer Support
32WP98165 Whirlpool Screw
