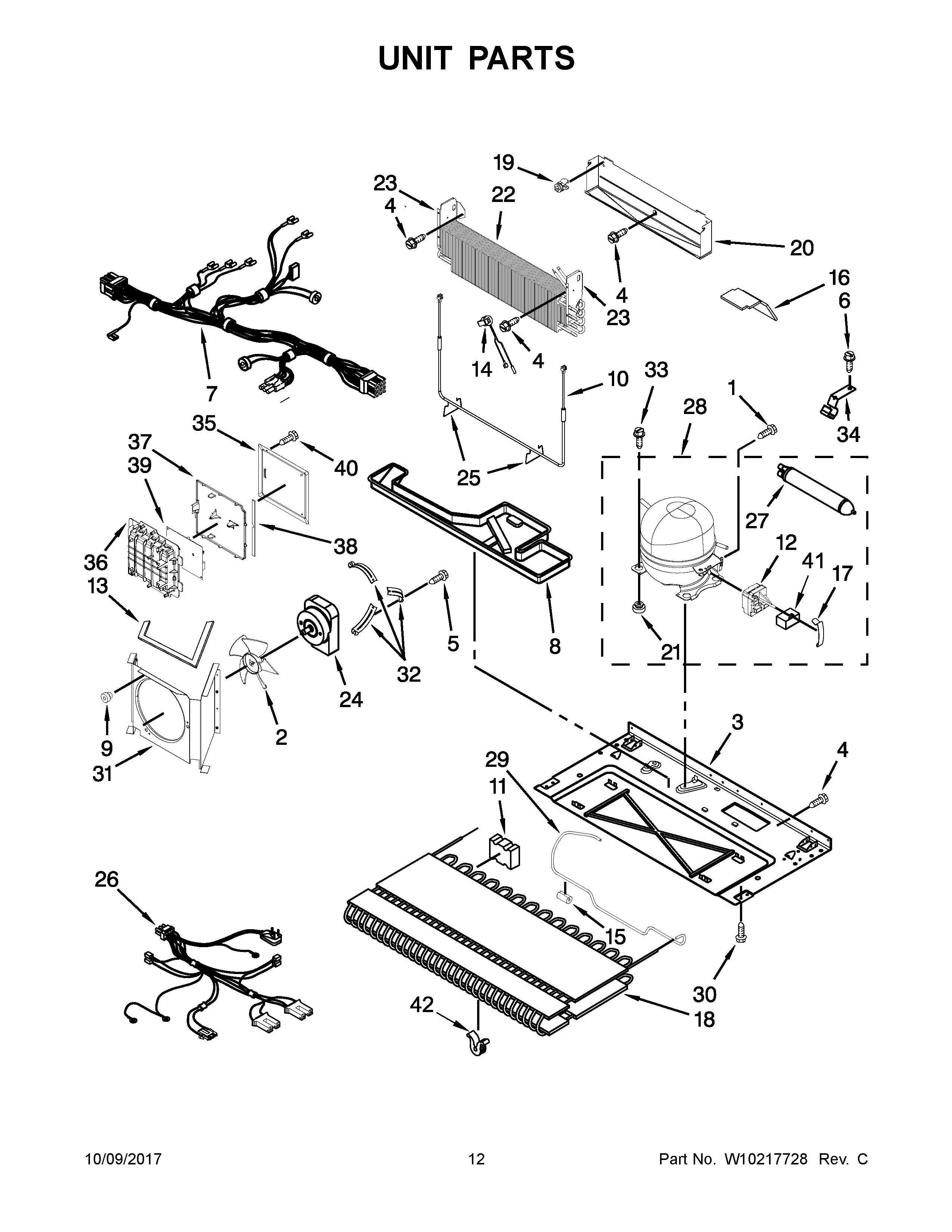

GI0FSAXVY00 07 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	978027 Whirlpool Refrigerator Primary Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	12992301 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Basepan
4	67006425 Whirlpool Refrigerator Screw
5	WP67004954 Whirlpool Refrigerator Screw
6	WP33001882 Whirlpool Screw
7	W10850438 Whirlpool Refrigerator Evaporator Motor
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	Grommet (3)
10	HEATER, DEFROST
11	Block, Condenser
12	WPW10197428 Whirlpool Start Device
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WP67006387 Whirlpool Refrigerator Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	12820504 Whirlpool Refrigerator Insulation
17	Clip, Retaining
18	WP67006131 Whirlpool Refrigerator Condenser
19	CLIP, EVAP (2)
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WPW10169124 Whirlpool Refrigerator Grommet
22	12002730 Whirlpool Refrigerator Evaporator Kit
23A	DAM (RIGHT HAND)
23	DAM (LEFT HAND)
24	Motor, Fan
25	W11673433 Whirlpool Clip
26	Harness, Unit Includes Cord
27	WPW10143759 Whirlpool Dryer Filter
28	W10160407 Whirlpool Refrigerator Compressor
29	TUBE, DISCHARGE
30	Screw (4)
31	Shroud, Condenser
32	WP67004953 Whirlpool Refrigerator Bracket
33	12846902 Whirlpool Refrigerator Screw
34	10547003 Whirlpool Refrigerator Dryer Clip
35	12961602 Whirlpool Refrigerator Wire Cover
36	WP67006390 Whirlpool Refrigerator High Voltage Box
37	LID, HV BOX
38	GASKET, HV BOX
39	WP12920722 Whirlpool Refrigerator Electronic Control Board
40	W11686675 Whirlpool Screw
41	WPW10662129 Whirlpool Refrigerator Run Capacitor
42	WPW10137529 Whirlpool Refrigerator Grommet
