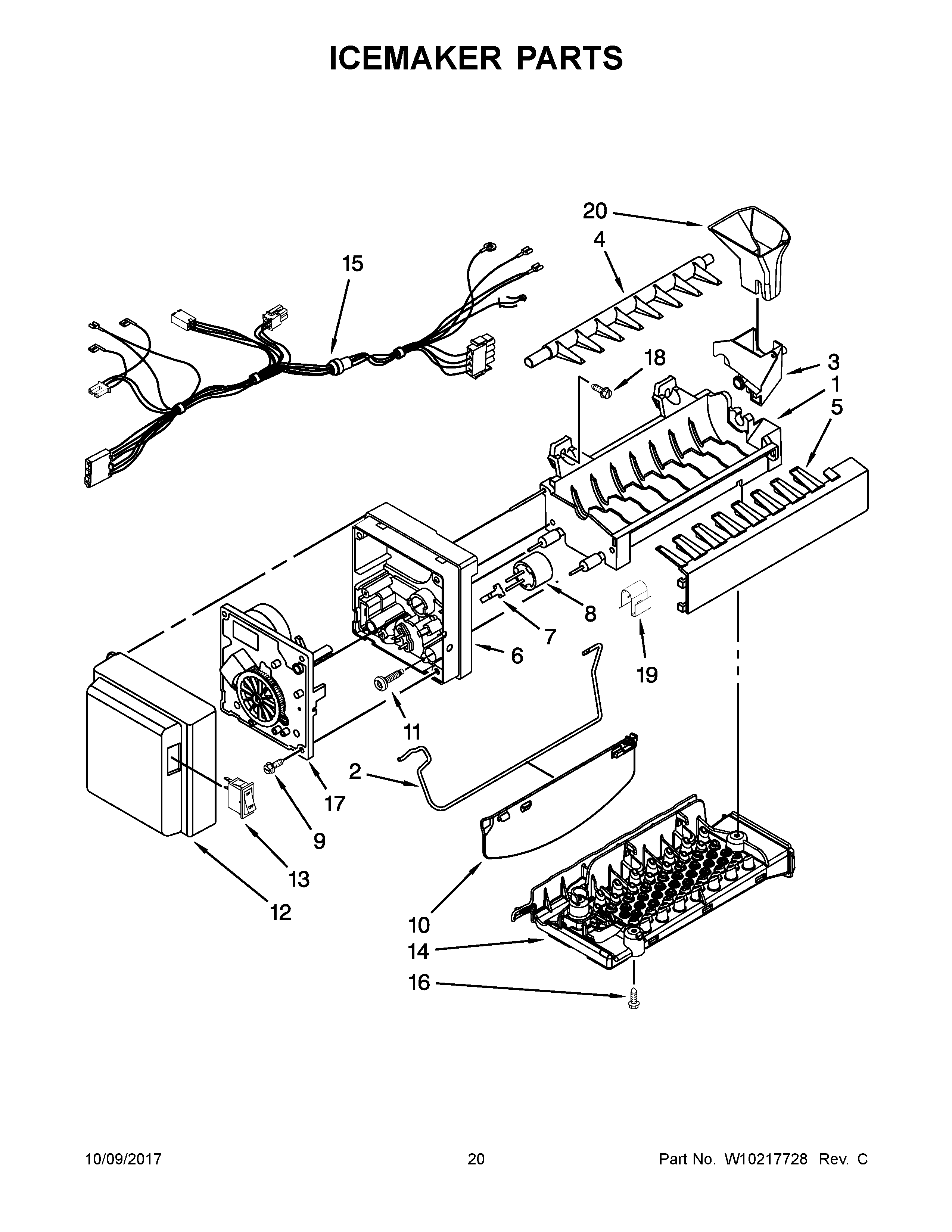

GI0FSAXVY00 11 – ICEMAKER PARTS

Products

PositionProduct
1WPW10190929 Whirlpool Refrigerator Ice Maker Mold
2WPW10175514 Whirlpool Refrigerator Shut-Off Arm
3W10122561 Whirlpool Refrigerator Cup Fill
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8WP627985 Whirlpool Icemaker Cycling Thermostat
9WP489464 Whirlpool Refrigerator Screw
10WPW10121440 Whirlpool Refrigerator Extension
118533917 Whirlpool Refrigerator Screw
12WPW10121444 Whirlpool Refrigerator Front Cover
13WP2313326 Whirlpool Refrigerator Switch
14WPW10121269 Whirlpool Refrigerator Air Baffle
15HARNESS, ICEMAKER
1667006425 Whirlpool Refrigerator Screw
178201515 Whirlpool Refrigerator Motor and Gear Module Kit
18WP681249 Whirlpool Screw Assembly
19WP628379 Whirlpool Refrigerator Clip
20WPW10121434 Whirlpool Refrigerator Insert
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
