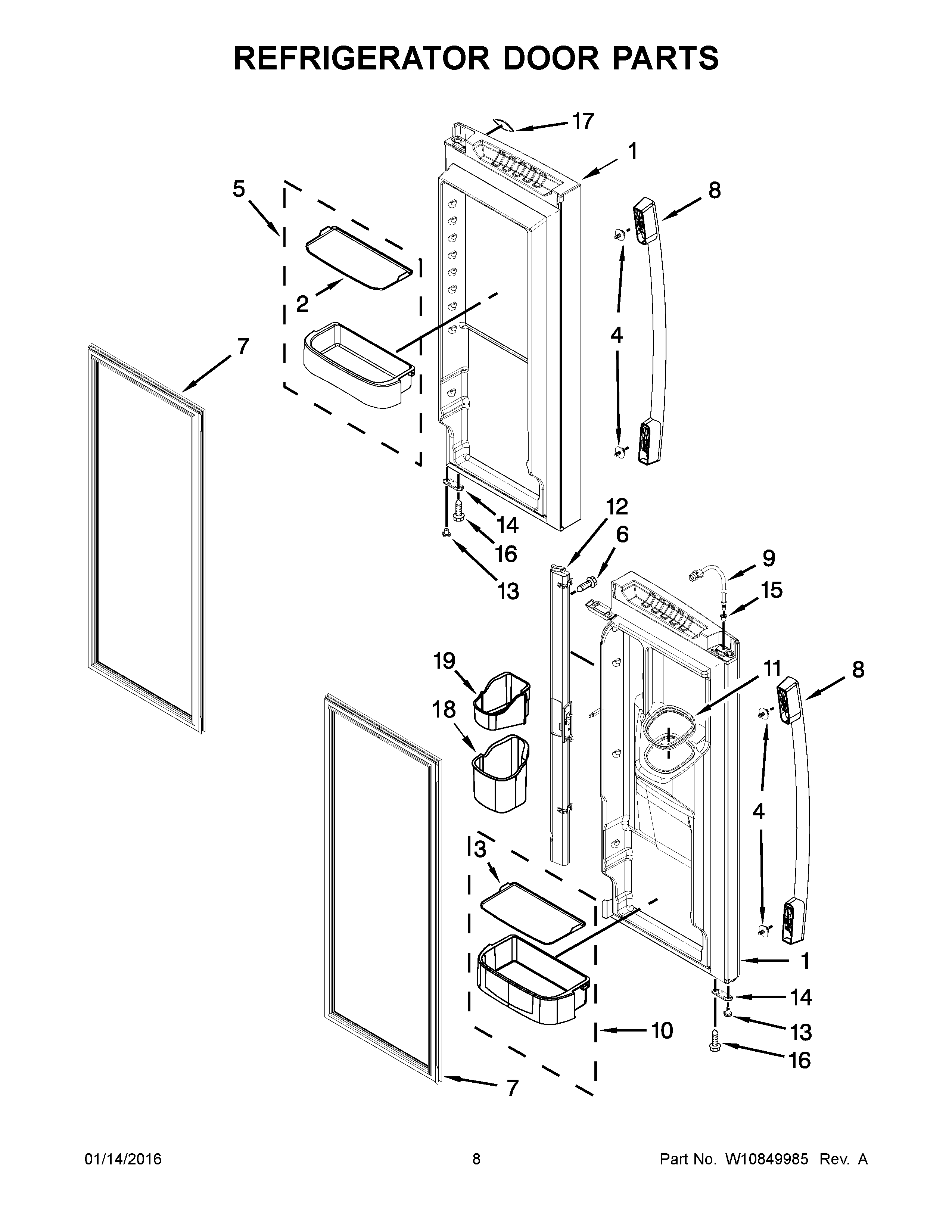

GI0FSAXVY012 05 – REFRIGERATOR DOOR PARTS

GI0FSAXVY012 05 – REFRIGERATOR DOOR PARTS

Written by

in

GI0FSAXVY012 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR LEFT HAND (STAINLESS)
1A13107853SQ Whirlpool Refrigerator DOOR-FIP SS
2W10450032 Whirlpool Refrigerator Mat
3W10450033 Whirlpool Refrigerator Mat
4WPW10288153 Whirlpool Refrigerator Screw
5WPW10451500 Whirlpool Cantilever Bin
6W11311945 Whirlpool Refrigerator Screw
7GASKET-FIP GRAY
8W11351147 Whirlpool Refrigerator Handle
9W10275942 Whirlpool Refrigerator Water Tube
10WPW10451501 Whirlpool Refrigerator Cantilever Bin
11WPW10287601 Whirlpool Seal
12WP12722813AP Whirlpool Refrigerator Mullion Rail
13WP12028505AP Whirlpool Closing Cam
14W11703060 Whirlpool Door Stop
1512996601 Whirlpool Refrigerator Bushing Clip
16WP98165 Whirlpool Screw
17WPW10393265 Whirlpool Refrigerator Nameplate
18WP12977502 Whirlpool Refrigerator Bin
19WP12977402 Whirlpool Refrigerator Bin
