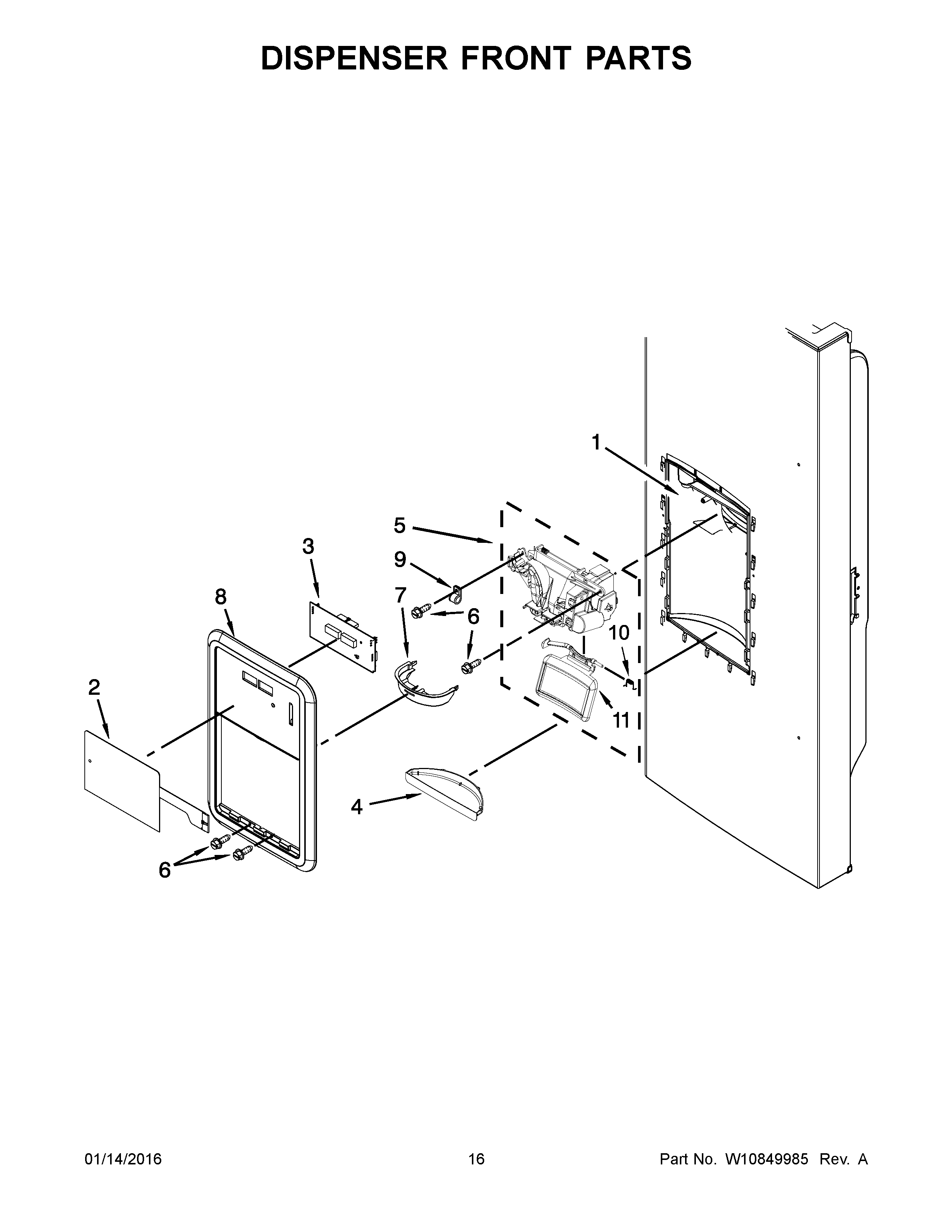

GI0FSAXVY012 09 – DISPENSER FRONT PARTS

GI0FSAXVY012 09 – DISPENSER FRONT PARTS

Written by

in

GI0FSAXVY012 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10740218 Whirlpool Refrigerator Electric Control
3W10901007 Whirlpool Refrigerator Electronic Control Board
4W11676505 Whirlpool Drip Tray
5WP13005706 Whirlpool Refrigerator Chute
667006425 Whirlpool Refrigerator Screw
767006295 Whirlpool Refrigerator Target Ring
8WPW10310690 Whirlpool Refrigerator Cover
9W11456069 Whirlpool Refrigerator Clamp
10WP12565502 Whirlpool Refrigerator Spring
11WPW10185234 Whirlpool Refrigerator Pad
