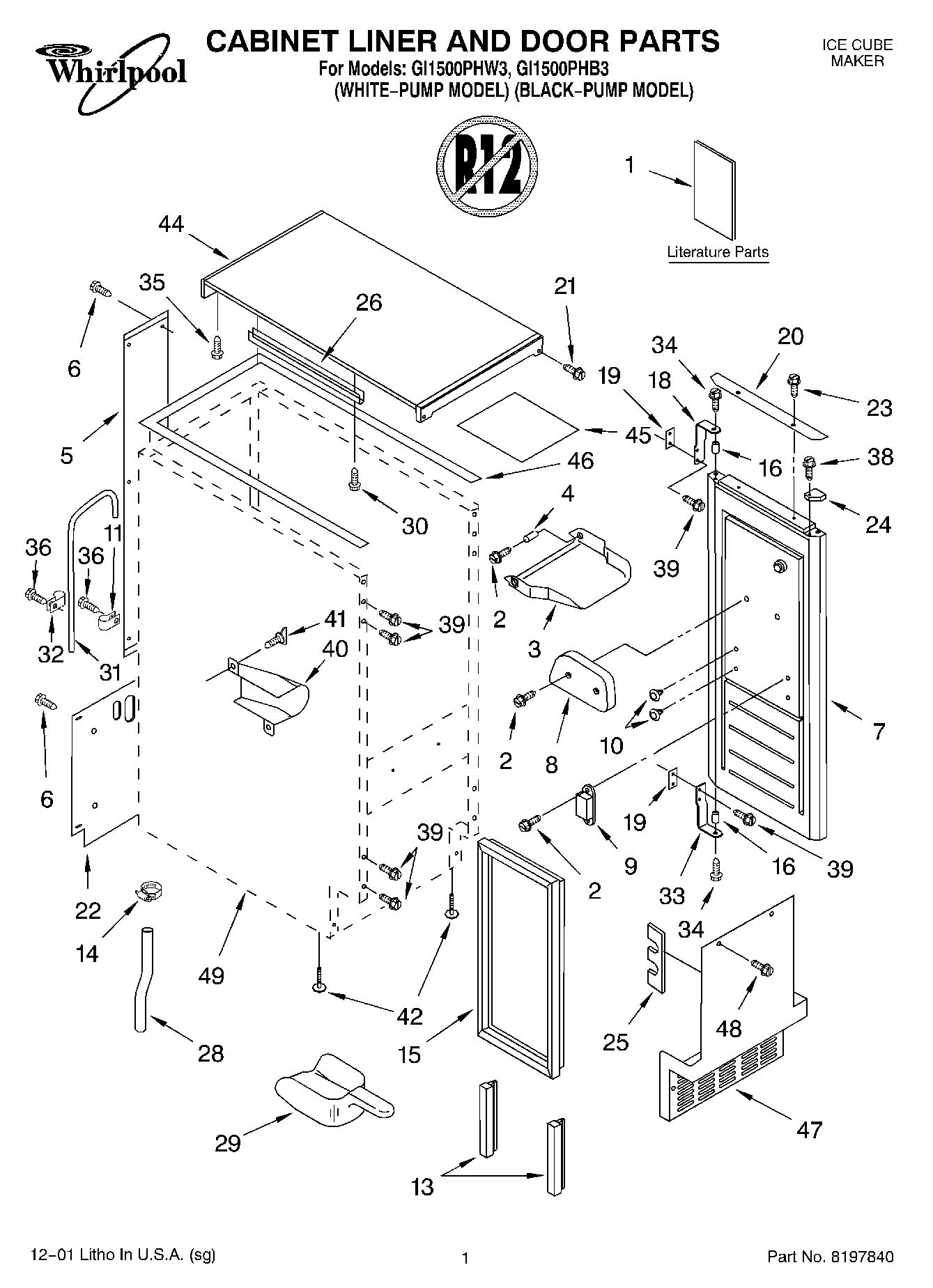

GI1500PHW3 01 – CABINET, LINER AND DOOR, LITERATURE

Products

PositionProduct
1Literature Parts (Service & Wiring Sheet)
1Literature Parts (Use & Care Guide)
2WP3400886 Whirlpool Refrigerator Screw
3BIN, DOOR
42185678 Whirlpool Refrigerator Spacer
52217394 Whirlpool Refrigerator Wire Cover
6WP489442 Whirlpool Refrigerator Screw
7Door (Black)
7Door (White)
82185695 Whirlpool Refrigerator Door Cam
9W11223751 Whirlpool Refrigerator Catch Assembly
10WP2189000 Whirlpool Refrigerator Handle Plug
11WP488366 Whirlpool Refrigerator Clamp
132217367 Whirlpool Refrigerator Door Gasket
14WP489503 Whirlpool Refrigerator Clamp
15Gasket, Door
162185640 Whirlpool Refrigerator Sleeve
182185710 Whirlpool Refrigerator Hinge
192185709 Whirlpool Refrigerator Shim
20WP2208493W Whirlpool Refrigerator Handle
20WP2208493B Whirlpool Refrigerator Handle
22WPW10136199 Whirlpool Refrigerator Unit Cover
23Screw, Handle
238281188 Whirlpool Refrigerator M Screw
24Filler, Endcap (Left Side)
242185656B Whirlpool Floor Endcap
24Filler, Endcap (Right Side)
24Filler, Endcap (Left Side)
25W10532250 Whirlpool Refrigerator Foam Pad
262185691 Whirlpool Refrigerator Channel
28Tube, Drain
29W11420408 Whirlpool Refrigerator Ice Scoop
30WP3400884 Whirlpool Refrigerator Screw
31Tube, Air Vent
32WP2208367 Whirlpool Refrigerator Half Clamp
332185711 Whirlpool Refrigerator Hinge
342185712 Whirlpool Refrigerator Hinge Pin
35WP250830 Whirlpool Refrigerator Screw
36WP489464 Whirlpool Refrigerator Screw
38NAMEPLATE
39WP999367 Whirlpool Refrigerator Screw
402185927 Whirlpool Refrigerator Holder
41Thumbscrew
428193716 Whirlpool Leveling Leg
44Top
44Top
452185690 Whirlpool Shield Assembly
46W11624957 Whirlpool Refrigerator Top Gasket
47WP2185571B Whirlpool Refrigerator Grille
47WP2185571W Whirlpool Refrigerator Grille
48WP489474 Whirlpool Refrigerator Screw
49W11179302 Whirlpool Ice Machine Cleaner
49WPL ARI65668A1
49978026 Whirlpool Refrigerator Primary Valve
49212643 Whirlpool Refrigerator Permagum Sealer
49876370 Whirlpool Refrigerator Insulation
49WP503695 Whirlpool Refrigerator Sealer
49WP505587 Whirlpool Refrigerator Sealer
49978027 Whirlpool Refrigerator Primary Valve
49978030 Whirlpool Refrigerator Valve
49WP978025 Whirlpool Refrigerator Valve
49VALVE, ACCESS (1/2“)
49WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
49VALVE, ACCESS (5/8“)
