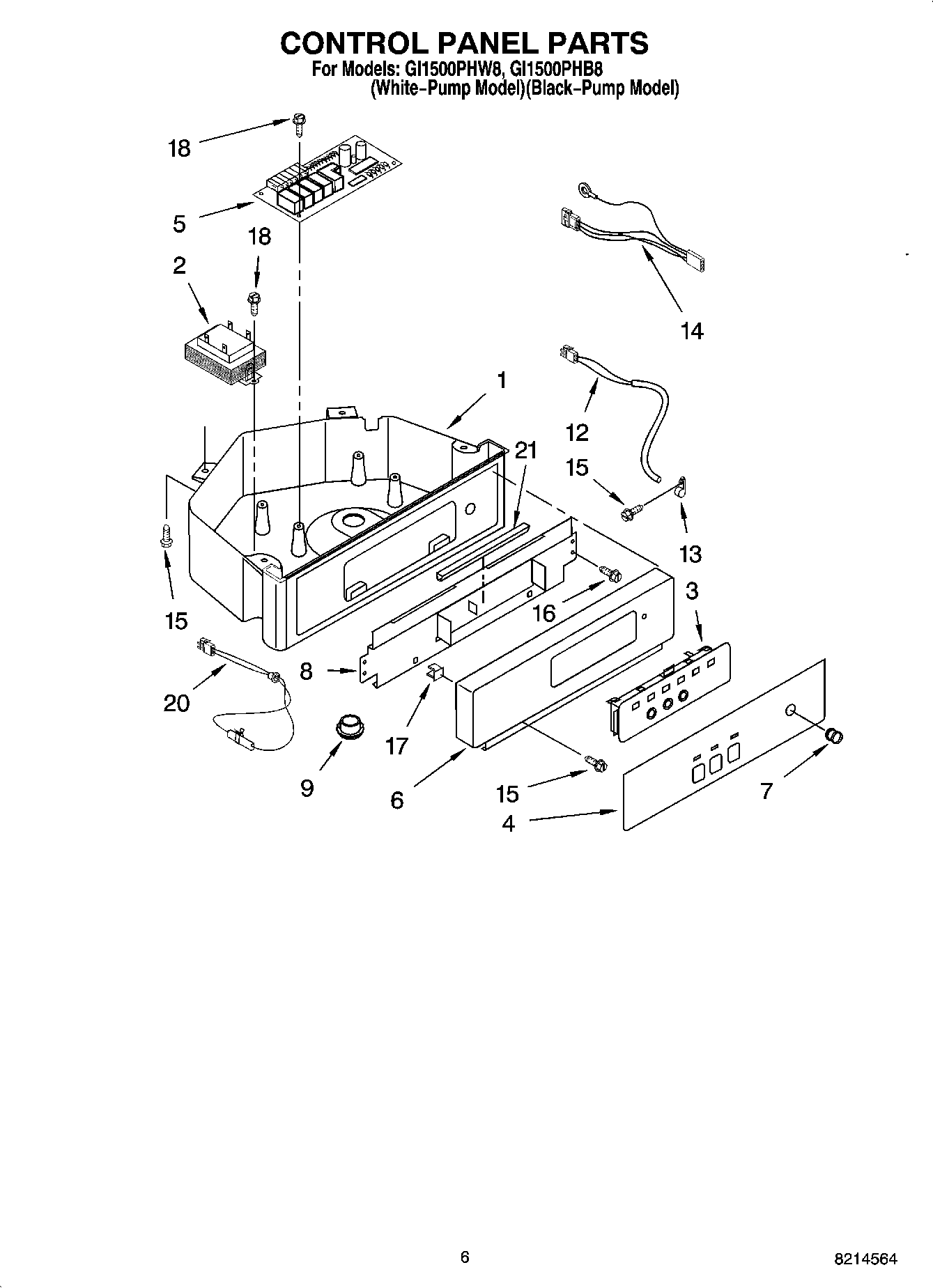

GI1500PHW8 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Box, Control
2Transformer
3Assembly, Switch (ALSO ORDER 4)
4Overlay (White)
4Overlay (Black)
5Control Board
6Touch Pad, Escutcheon (White)
6Touch Pad, Escutcheon (Black)
7Lens, LED
8Mounting Bracket, Escutcheon
9Plug, Dome
12WPW10503764 Whirlpool Refrigerator Thermistor
132185825 Whirlpool Refrigerator Clamp
14Wiring Harness, Main to Pump,
15WP3400884 Whirlpool Refrigerator Screw
16WP999367 Whirlpool Refrigerator Screw
17WP3400909 Whirlpool Refrigerator Nut
18WP489443 Whirlpool Refrigerator Screw
20WP2313635 Whirlpool Refrigerator Thermistor
21Grommet, Edge
