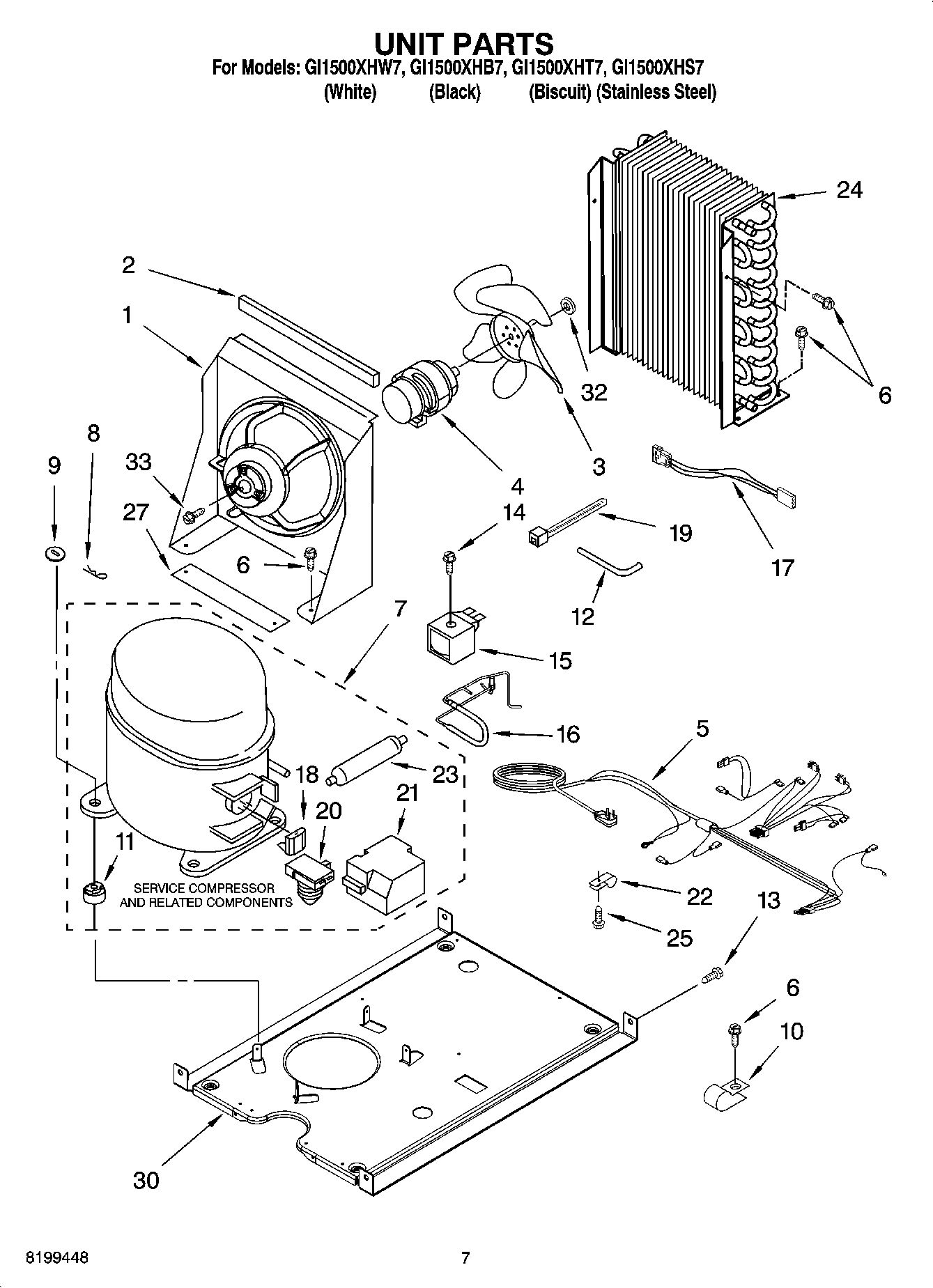

GI1500XHT7 05 – UNIT PARTS, OPTIONAL PARTS

GI1500XHT7 05 – UNIT PARTS, OPTIONAL PARTS

Written by

in

GI1500XHT7 05 – UNIT PARTS, OPTIONAL PARTS

Products

Position	Product
	978027 Whirlpool Refrigerator Primary Valve
	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	WP505587 Whirlpool Refrigerator Sealer
	978026 Whirlpool Refrigerator Primary Valve
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	212643 Whirlpool Refrigerator Permagum Sealer
	VALVE, ACCESS (5/8“)
	Parts Not Illustrated and Optional Parts (Not Included)
1	WP2185532 Whirlpool Refrigerator Bracket
2	2185675 Whirlpool Refrigerator Foam Pad
3	Blade, Fan
4	W10822259 Whirlpool Refrigerator Condenser Fan Motor
5	Wiring Harness, Complete Unit (Includes Power Cord)
6	WP489069 Whirlpool Compactor Screw
7	W11735041 Whirlpool Compressor
8	A201435 Whirlpool Refrigerator Clip
9	A201441 Whirlpool Refrigerator Shim
10	CLAMP, POWER CORD
11	WP4387558 Whirlpool Refrigerator Compressor Grommet
11	2185965 Whirlpool Refrigerator Grommet
12	W10528572 Whirlpool Refrigerator Tube
13	WP999367 Whirlpool Refrigerator Screw
14	SCREW
15	Coil, Solenoid
16	W10724988 Whirlpool Refrigerator Gas Valve
17	Wiring Harness, Condenser Fan
18	WP2217223 Whirlpool Refrigerator Overload Relay
19	WPW10339879 Whirlpool Wire Tie
20	WP2217224 Whirlpool Refrigerator Start Relay
20	WP4387938 Whirlpool Refrigerator Overload
21	WP2162358 Whirlpool Refrigerator Terminal Cover
22	W11456069 Whirlpool Refrigerator Clamp
23	W10843121 Whirlpool Refrigerator Tube
24	8201810 Whirlpool Refrigerator Condenser
25	WP3400884 Whirlpool Refrigerator Screw
27	2217397 Whirlpool Foam Pad
30	2217445 Whirlpool Refrigerator Base Condenser
32	WP486692 Whirlpool Refrigerator Nut
33	WP8281196 Whirlpool Screw
33	REFRIGERANT CHARGE 6.5 OZ. (R134A)
