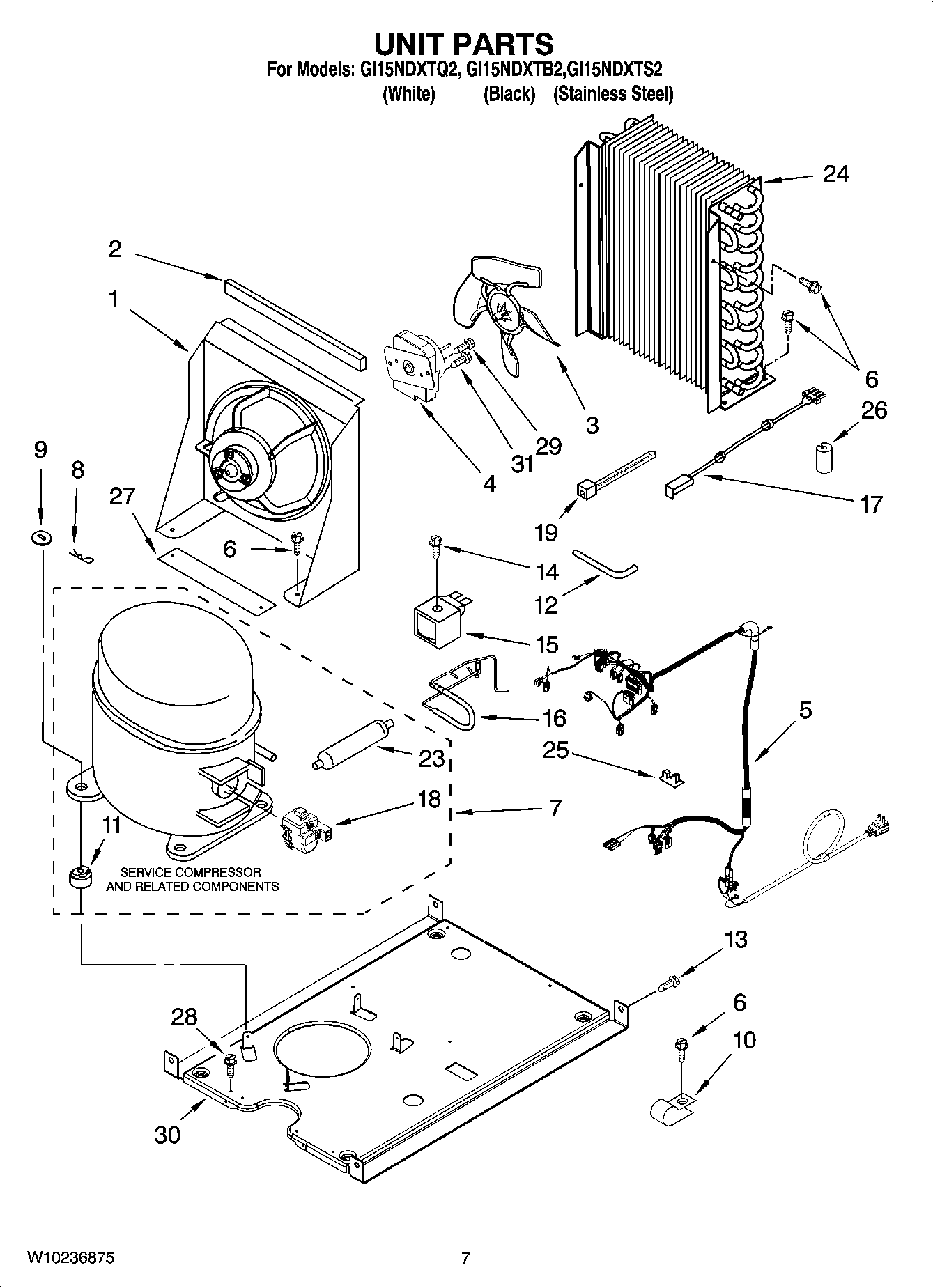

GI15NDXTS2 05 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

GI15NDXTS2 05 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GI15NDXTS2 05 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
VALVE, ACCESS (5/8“)
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
WP505587 Whirlpool Refrigerator Sealer
VALVE, ACCESS (1/2“)
WP503695 Whirlpool Refrigerator Sealer
Cleaner, Stainless Steel
876370 Whirlpool Refrigerator Insulation
212643 Whirlpool Refrigerator Permagum Sealer
978026 Whirlpool Refrigerator Primary Valve
WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
Parts Not Illustrated and Optional Parts (Not Included)
WP978025 Whirlpool Refrigerator Valve
1WP2185532 Whirlpool Refrigerator Bracket
22185675 Whirlpool Refrigerator Foam Pad
3WP2188935 Whirlpool Refrigerator Fan Blade
4W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
5Wiring Harness, Complete Unit (Includes Power Cord
6WP489069 Whirlpool Compactor Screw
7WPW10605286 Whirlpool Refrigerator Compressor
8A201435 Whirlpool Refrigerator Clip
9A201441 Whirlpool Refrigerator Shim
10CLAMP, POWER CORD
11WP4387558 Whirlpool Refrigerator Compressor Grommet
112185965 Whirlpool Refrigerator Grommet
12W10528572 Whirlpool Refrigerator Tube
13WP489464 Whirlpool Refrigerator Screw
14SCREW
15WPW10206473 Whirlpool Refrigerator Coil Solenoid
16WPW10534030 Whirlpool Refrigerator Gas Valve
17WP2187629 Whirlpool Refrigerator Wire Jumper
18WPW10136197 Whirlpool Refrigerator Start Device
19WPW10339879 Whirlpool Wire Tie
23W10843121 Whirlpool Refrigerator Tube
24WP2313624 Whirlpool Refrigerator Condenser
25CLIP, WIRING
26W10852725 Whirlpool Refrigerator Grommet
272217397 Whirlpool Foam Pad
28WP489128 Whirlpool Refrigerator Screw
298281197 Whirlpool Refrigerator Screw
302217445 Whirlpool Refrigerator Base Condenser
31WP8281196 Whirlpool Screw
31REFRIGERANT CHARGE 6.5 OZ. (R134A)
