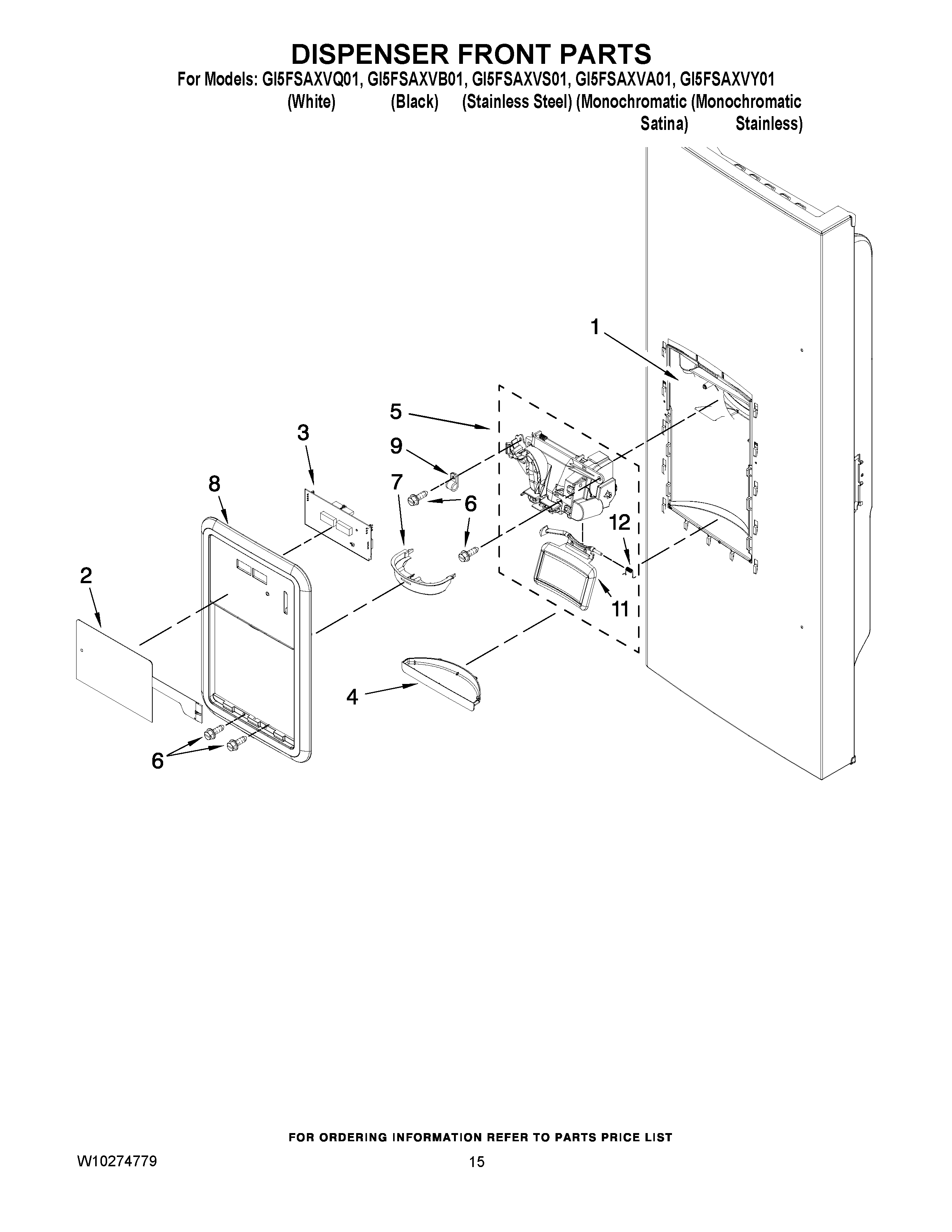

GI5FSAXVQ01 08 – DISPENSER FRONT PARTS

GI5FSAXVQ01 08 – DISPENSER FRONT PARTS

Written by

in

GI5FSAXVQ01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10882878 Whirlpool Refrigerator Electronic Control Board
2W10860143 Whirlpool Refrigerator Electronic Control Board
2W10740218 Whirlpool Refrigerator Electric Control
2W10882877 Whirlpool Refrigerator White Dispenser Control Board with Touchpad
4SUMP, DISPENSER (WHITE)
4SUMP, DISPENSER (BLACK)
4W11676505 Whirlpool Drip Tray
5WP13005704W Whirlpool Refrigerator Chute
5WP13005704B Whirlpool Ice Chute
5WP13005706 Whirlpool Refrigerator Chute
667006425 Whirlpool Refrigerator Screw
767006295 Whirlpool Refrigerator Target Ring
8WPW10310690 Whirlpool Refrigerator Cover
8FACADE, DISPENSER (WHITE)
8FACADE, DISPENSER (APOLLO GREY (WITH SATINA INSERT))
8FACADE, DISPENSER (BLACK)
9M0108106 Whirlpool Refrigerator Clamp
11YOKE/PAD ASSEMBLY (WHITE)
11WPW10168729 Whirlpool Refrigerator Pad
11WPW10185234 Whirlpool Refrigerator Pad
12WP12565502 Whirlpool Refrigerator Spring
