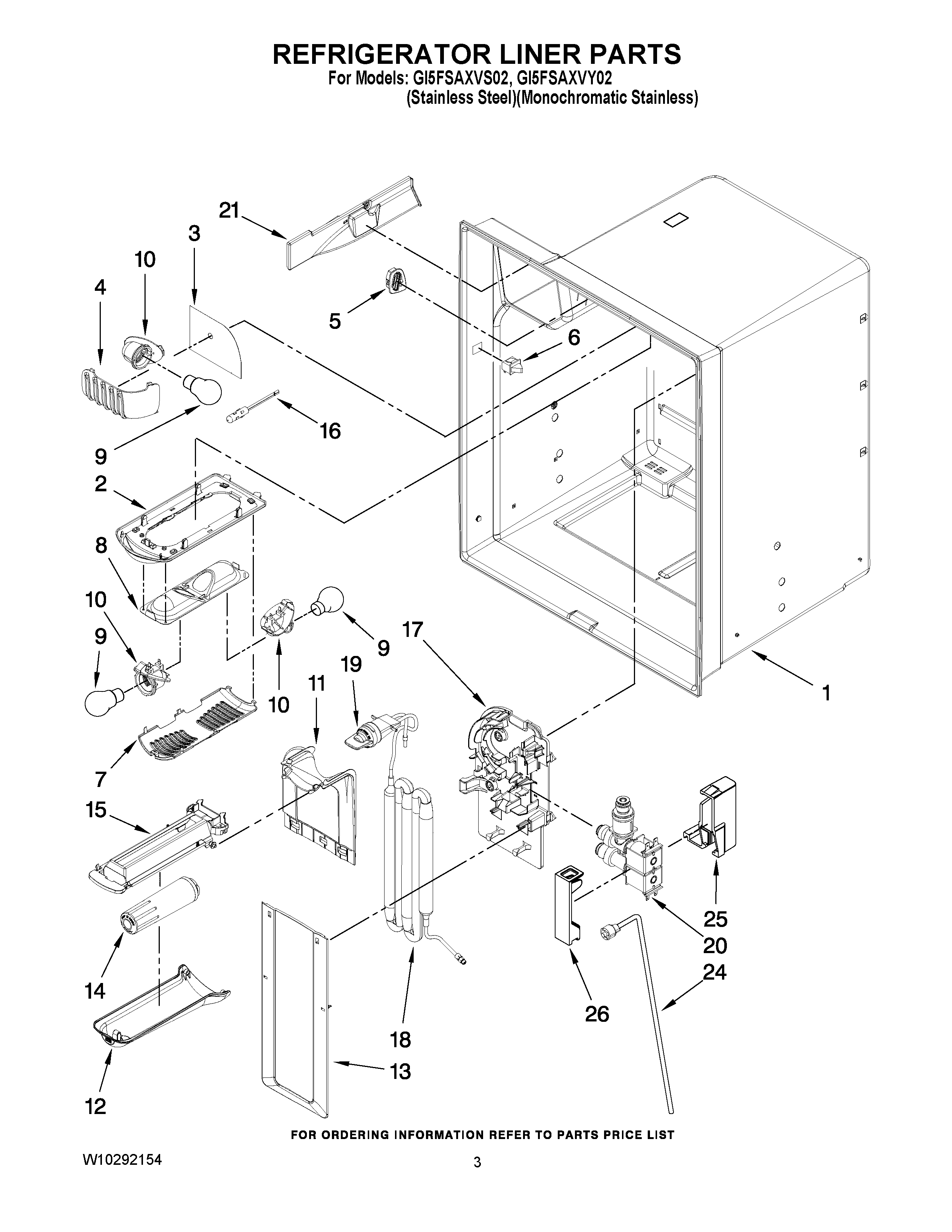

GI5FSAXVS02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2MODULE, LIGHT
3FOIL, LIGHT
412921801 Whirlpool Refrigerator Light Cover
5W10555984 Whirlpool Refrigerator Grille
6W11396033 Whirlpool Refrigerator Rocker Switch
7COVER, LIGHT
812806601 Whirlpool Refrigerator Light Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1112960101 Whirlpool Refrigerator Cover
12WP67006331 Whirlpool Refrigerator Water Filter Cover
1367006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
1567006325 Whirlpool Filter Base Bracket
1612002355 Whirlpool Refrigerator Thermistor Kit
1767006324 Whirlpool Refrigerator Bracket
18WP12956202 Whirlpool Refrigerator Reservoir
19W11395888 Whirlpool Refrigerator Bypass Filter Cap
2067006322 Whirlpool Refrigerator Dual Water Valve
21COVER, ICE BOX HARNESS
24Waterline, Cabinet (W/Nut)
25W10118193 Whirlpool Refrigerator Cover
26W10118194 Whirlpool Refrigerator Cover
