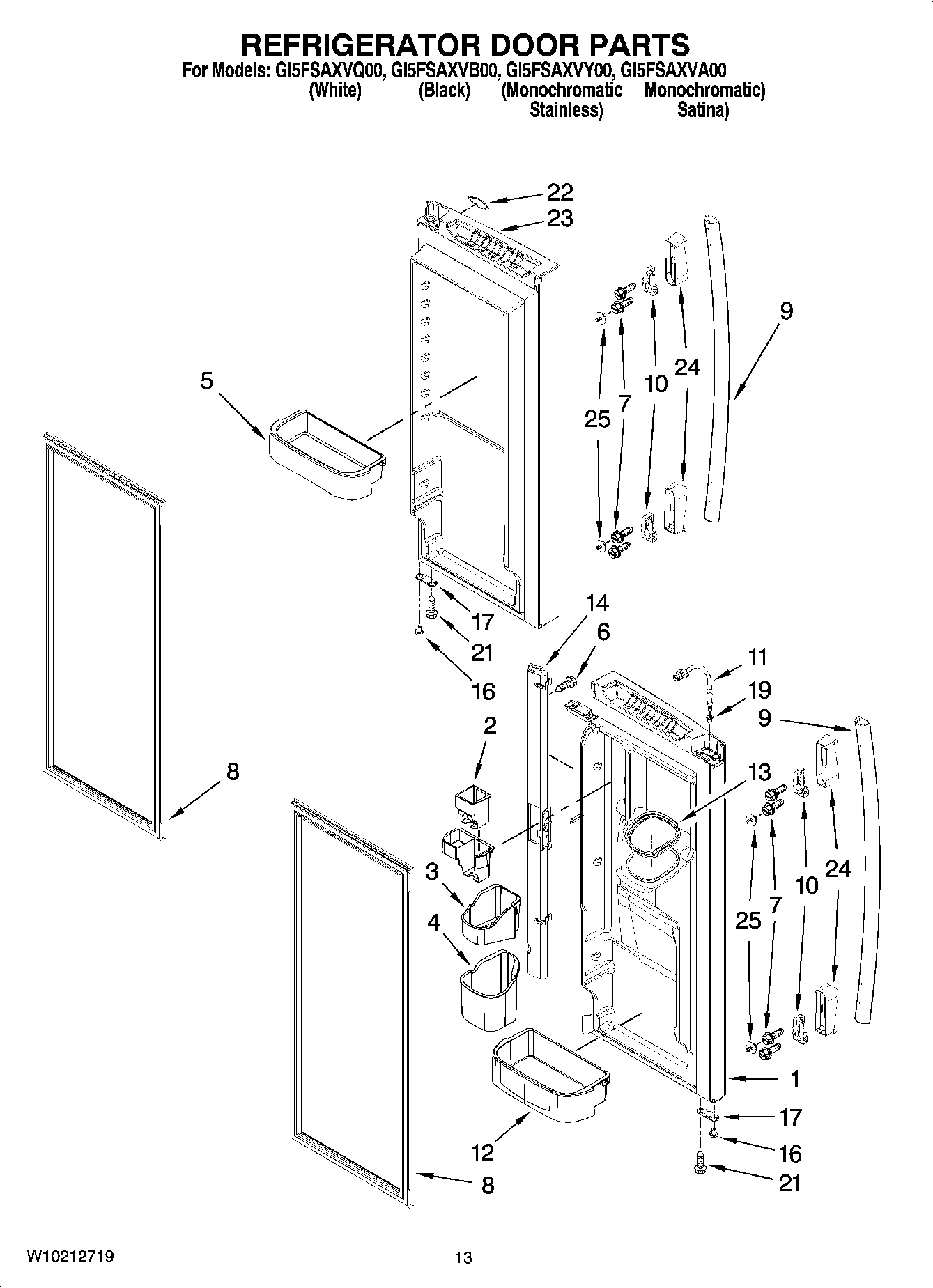

GI5FSAXVY00 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Left (Black)
1	Door, Left (White)
1	DOOR, LEFT (MONO STAINLESS)
1	DOOR, LEFT (MONO SATINA)
2	Dispenser, Can
3	WP12977402 Whirlpool Refrigerator Bin
4	WP12977502 Whirlpool Refrigerator Bin
5	WPW10451500 Whirlpool Cantilever Bin
6	W11311945 Whirlpool Refrigerator Screw
7	W10267047 Whirlpool Screw
8	GASKET-FIP GRAY
8	W11378944 Whirlpool Door Gasket
8	W11396037 Whirlpool Door Gasket
9	Handle, Door (Black)
9	WPW10222984K Whirlpool Refrigerator Handle Assembly
9	W11351147 Whirlpool Refrigerator Handle
10	Clip, Handle
11	12962106 Whirlpool Refrigerator Waterline Door
12	WPW10451501 Whirlpool Refrigerator Cantilever Bin
13	WPW10287601 Whirlpool Seal
14	WP12722813AP Whirlpool Refrigerator Mullion Rail
14	WPW10151713 Whirlpool Refrigerator Mullion Rail
14	WP12722813W Whirlpool Refrigerator Mullion Rail
16	WP12028505AP Whirlpool Closing Cam
16	WP67003639 Whirlpool Refrigerator Closer
16	WP67003638 Whirlpool Closing Cam
17	W11703060 Whirlpool Door Stop
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
19	12996601 Whirlpool Refrigerator Bushing Clip
21	WP98165 Whirlpool Screw
22	Nameplate
23	DOOR, RIGHT (MONO SATINA)
23	DOOR, RIGHT (MONO STAINLESS)
23	Door, Right (White)
23	Door, Right (Black)
24	Endcap, Handle (White)
24	Endcap, Handle (Black)
24	Endcap, Handle
25	WP12992902 Whirlpool Refrigerator Screw
