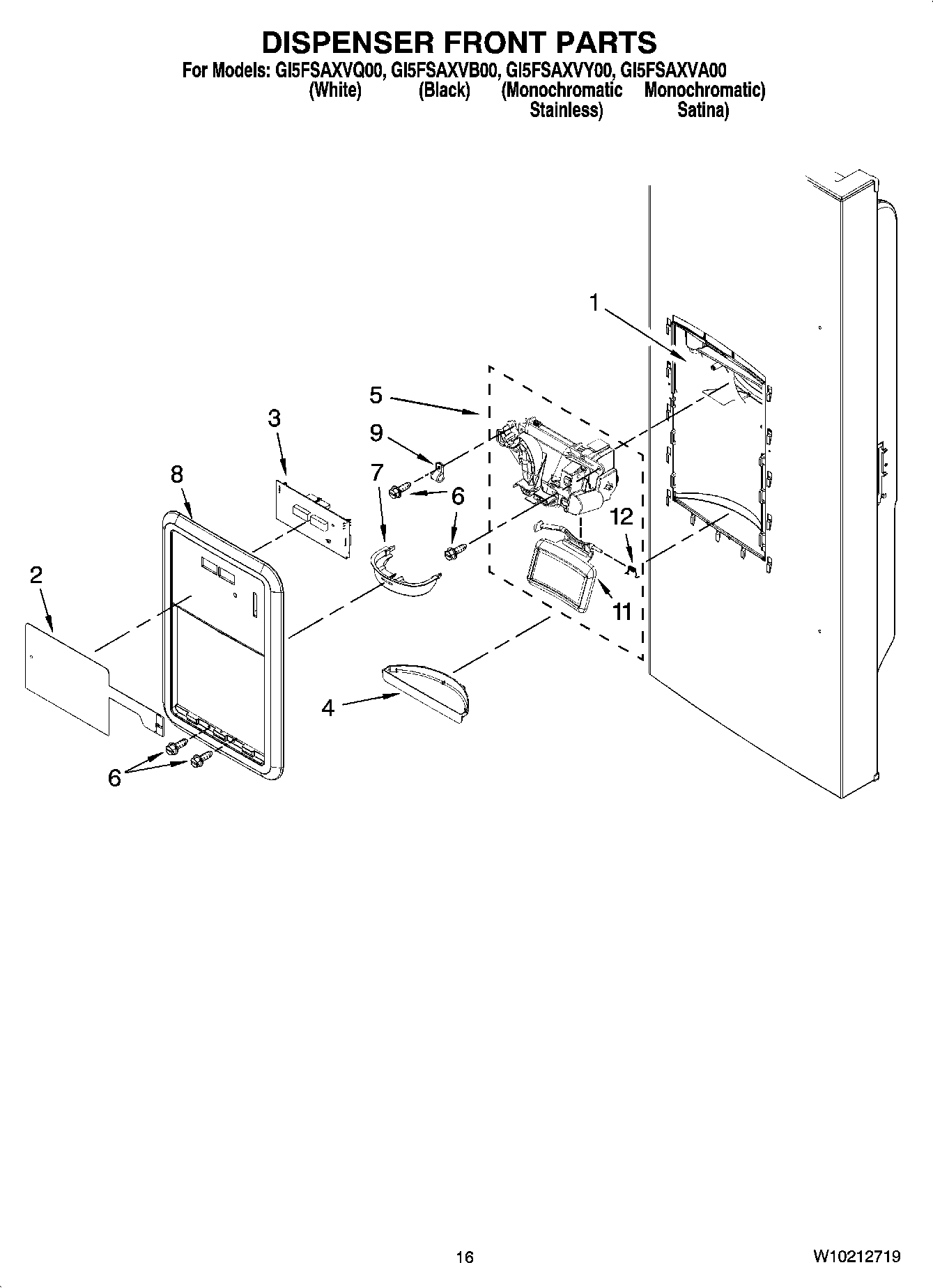

GI5FSAXVY00 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	W10860143 Whirlpool Refrigerator Electronic Control Board
2	W10882878 Whirlpool Refrigerator Electronic Control Board
2	W10882877 Whirlpool Refrigerator White Dispenser Control Board with Touchpad
2	W10740218 Whirlpool Refrigerator Electric Control
4	W11676505 Whirlpool Drip Tray
4	SUMP, DISPENSER (BLACK)
4	SUMP, DISPENSER (APOLLO GREY (LIGHT))
4	SUMP, DISPENSER (WHITE)
5	WP13005706 Whirlpool Refrigerator Chute
5	WP13005704W Whirlpool Refrigerator Chute
5	WP13005704B Whirlpool Ice Chute
6	67006425 Whirlpool Refrigerator Screw
7	67006295 Whirlpool Refrigerator Target Ring
8	FACADE, DISPENSER (APOLLO GREY (WITH SATINA INSERT))
8	WPW10310690 Whirlpool Refrigerator Cover
8	FACADE, DISPENSER (WHITE)
8	FACADE, DISPENSER (BLACK)
9	M0108106 Whirlpool Refrigerator Clamp
11	WPW10168729 Whirlpool Refrigerator Pad
11	WPW10185234 Whirlpool Refrigerator Pad
11	YOKE/PAD ASSEMBLY (WHITE)
12	WP12565502 Whirlpool Refrigerator Spring
