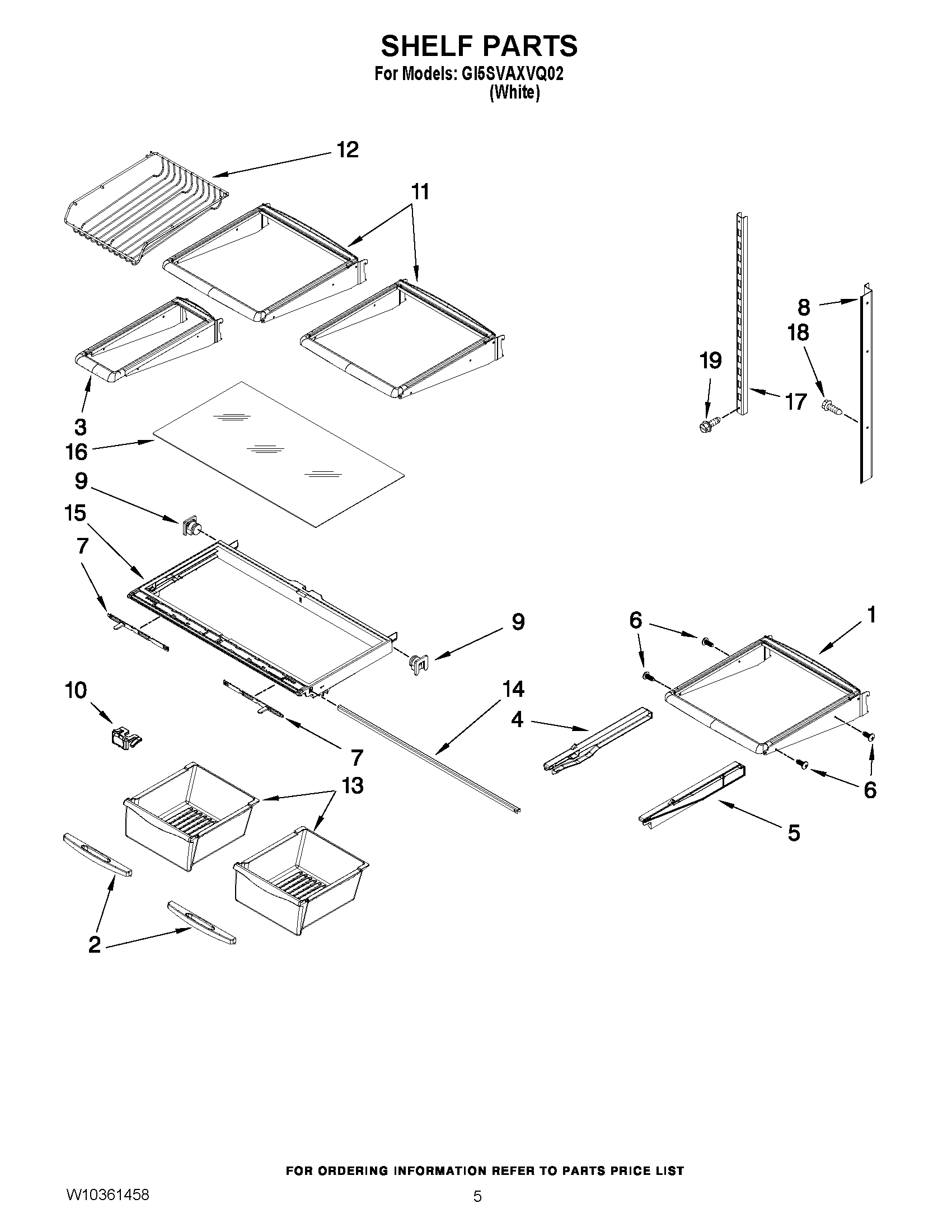

GI5SVAXVQ02 03 – SHELF PARTS

GI5SVAXVQ02 03 – SHELF PARTS

Written by

in

GI5SVAXVQ02 03 – SHELF PARTS

Products

PositionProduct
1WP12883508SP Whirlpool Refrigerator Glass Shelf
2WPW10297814 Whirlpool Refrigerator Crisper Pan
3W11197490 Whirlpool Refrigerator Cantilever Shelf
4WPW10194031 Whirlpool Refrigerator Glide
5WPW10194032 Whirlpool Refrigerator Glide
6W10854958 Whirlpool Refrigerator Screw
7SLIDE, HUMIDITY
8W10251965 Whirlpool Refrigerator Ladder
8W10251968 Whirlpool Ladder
9WP13062602 Whirlpool Refrigerator Support
10Knob, Humidity Control
11W11402525 Whirlpool Glass Shelf
12RACK, BOTTLE
14W10490807 Whirlpool Refrigerator Support
15Frame, Crisper
16WP12204826 Whirlpool Glass Crisper Cover
17W10273464 Whirlpool Refrigerator Ladder
1867006425 Whirlpool Refrigerator Screw
19W10709795 Whirlpool Refrigerator Screw
