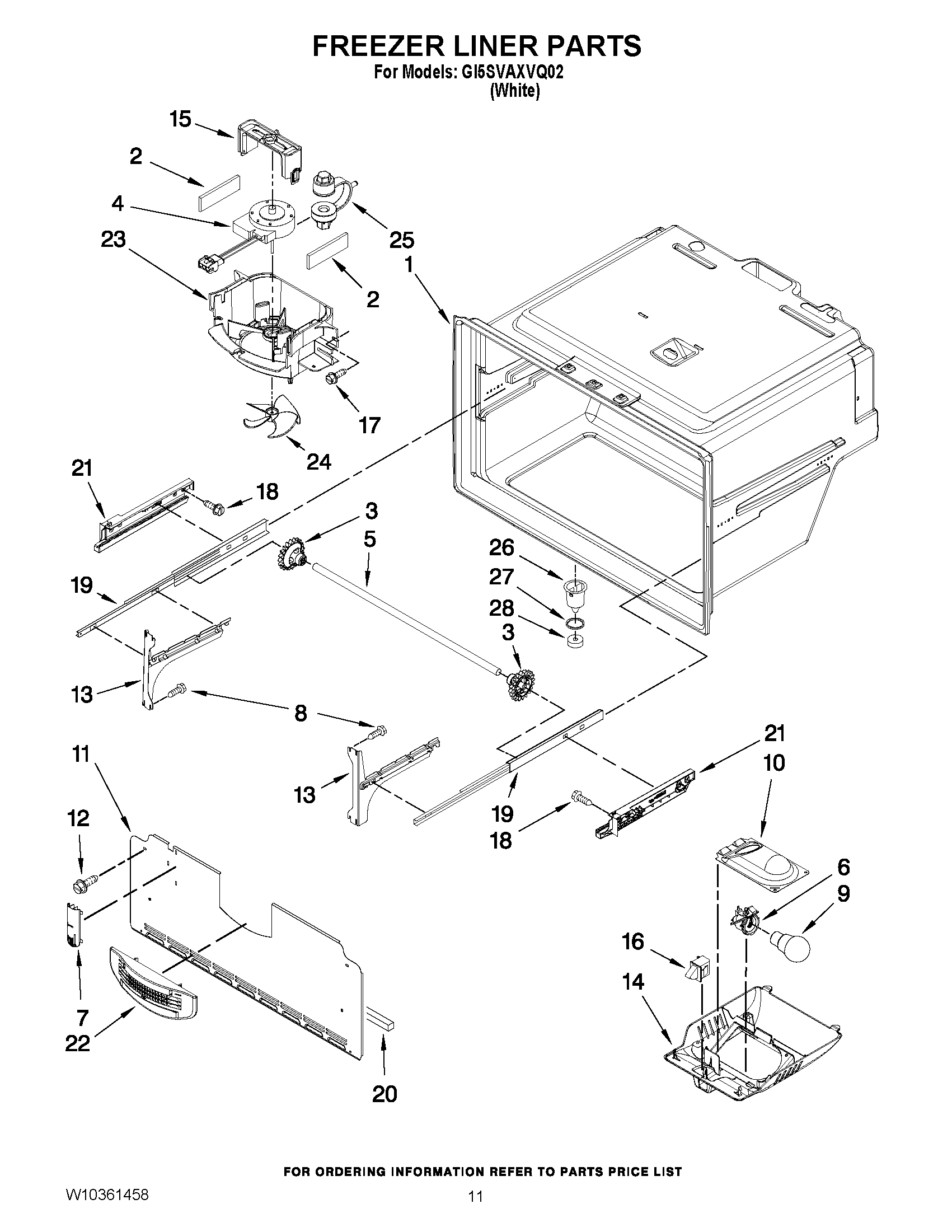

GI5SVAXVQ02 06 – FREEZER LINER PARTS

GI5SVAXVQ02 06 – FREEZER LINER PARTS

Written by

in

GI5SVAXVQ02 06 – FREEZER LINER PARTS

Products

PositionProduct
NI12952005 Whirlpool Refrigerator Wire Harness
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
312002497 Whirlpool Refrigerator Drawer Gear Kit
4W10850438 Whirlpool Refrigerator Evaporator Motor
5W11028221 Whirlpool Refrigerator Shaft
6W11447232 Whirlpool Refrigerator Socket
7WP67003924 Whirlpool Refrigerator Cover
9RANGE ONLY 40W 120V APPL BULB
10W11702858 Whirlpool Housing
11W10308421 Whirlpool Refrigerator Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13WPW10330991 Whirlpool Refrigerator Bracket
13WPW10330993 Whirlpool Refrigerator Bracket
14MODULE, FREEZER LIGHT
15W11712696 Whirlpool Clip
16W11445850 Whirlpool Door Switch
17WP98165 Whirlpool Screw
18WP489474 Whirlpool Refrigerator Screw
19W11658402 Whirlpool Drawer Slide Rail
20W11159728 Whirlpool Refrigerator Gasket
21WPW10284683 Whirlpool Refrigerator Bracket
21WPW10284682 Whirlpool Refrigerator Bracket
22W11176847 Whirlpool Refrigerator Grille
23W11700329 Whirlpool Evaporator Shroud
24WP67006337 Whirlpool Refrigerator Fan Blade
25W11676465 Whirlpool Grommet
26W10815413 Whirlpool Refrigerator Funnel
27WPM0500703 Whirlpool Refrigerator O-Ring Seal
28WPB8381501 Whirlpool Refrigerator Door Gasket
