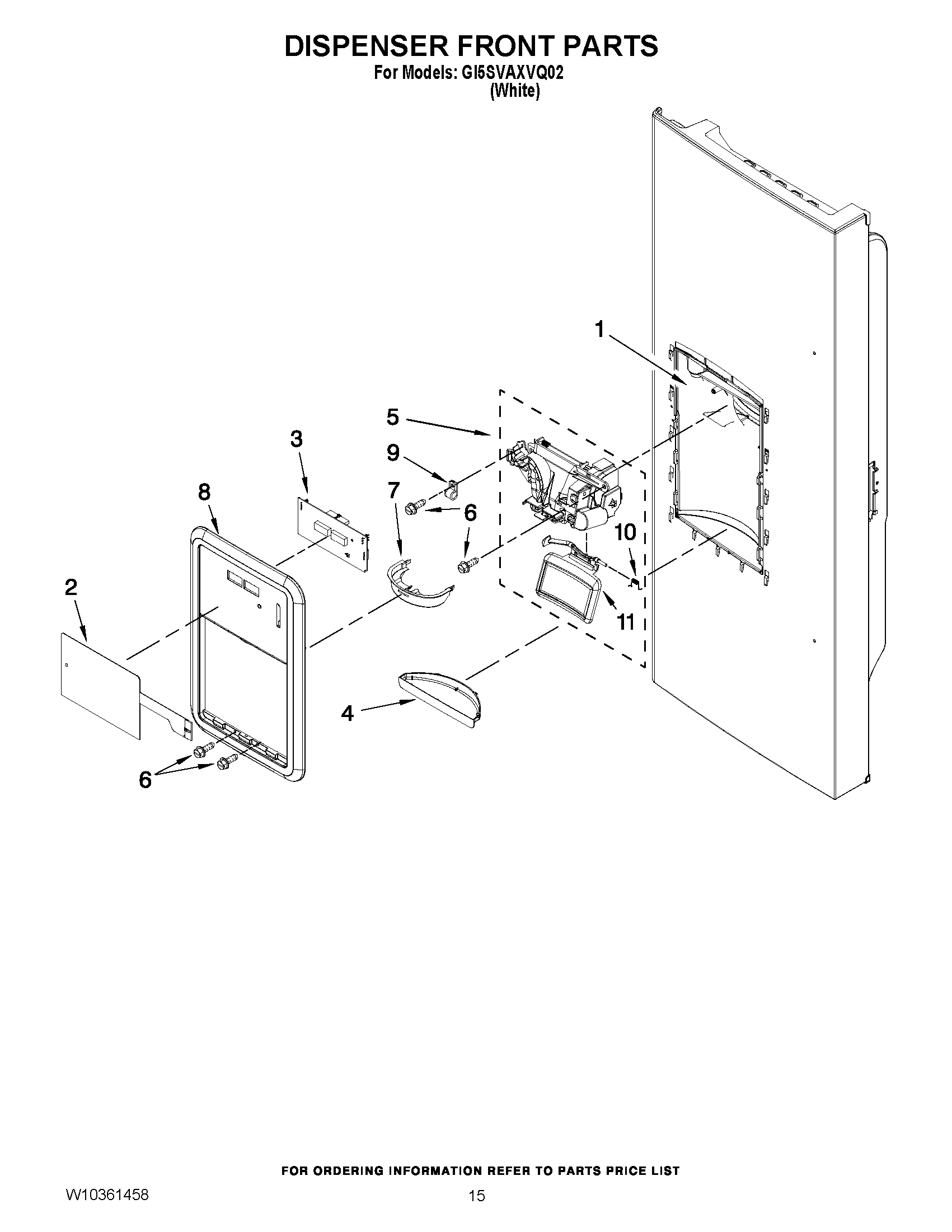

GI5SVAXVQ02 08 – DISPENSER FRONT PARTS

GI5SVAXVQ02 08 – DISPENSER FRONT PARTS

Written by

in

GI5SVAXVQ02 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10882877 Whirlpool Refrigerator White Dispenser Control Board with Touchpad
4SUMP, DISPENSER (WHITE)
5WP13005704W Whirlpool Refrigerator Chute
667006425 Whirlpool Refrigerator Screw
767006295 Whirlpool Refrigerator Target Ring
8FACADE, DISPENSER (WHITE)
9M0108106 Whirlpool Refrigerator Clamp
10WP12565502 Whirlpool Refrigerator Spring
11YOKE/PAD ASSEMBLY (WHITE)
