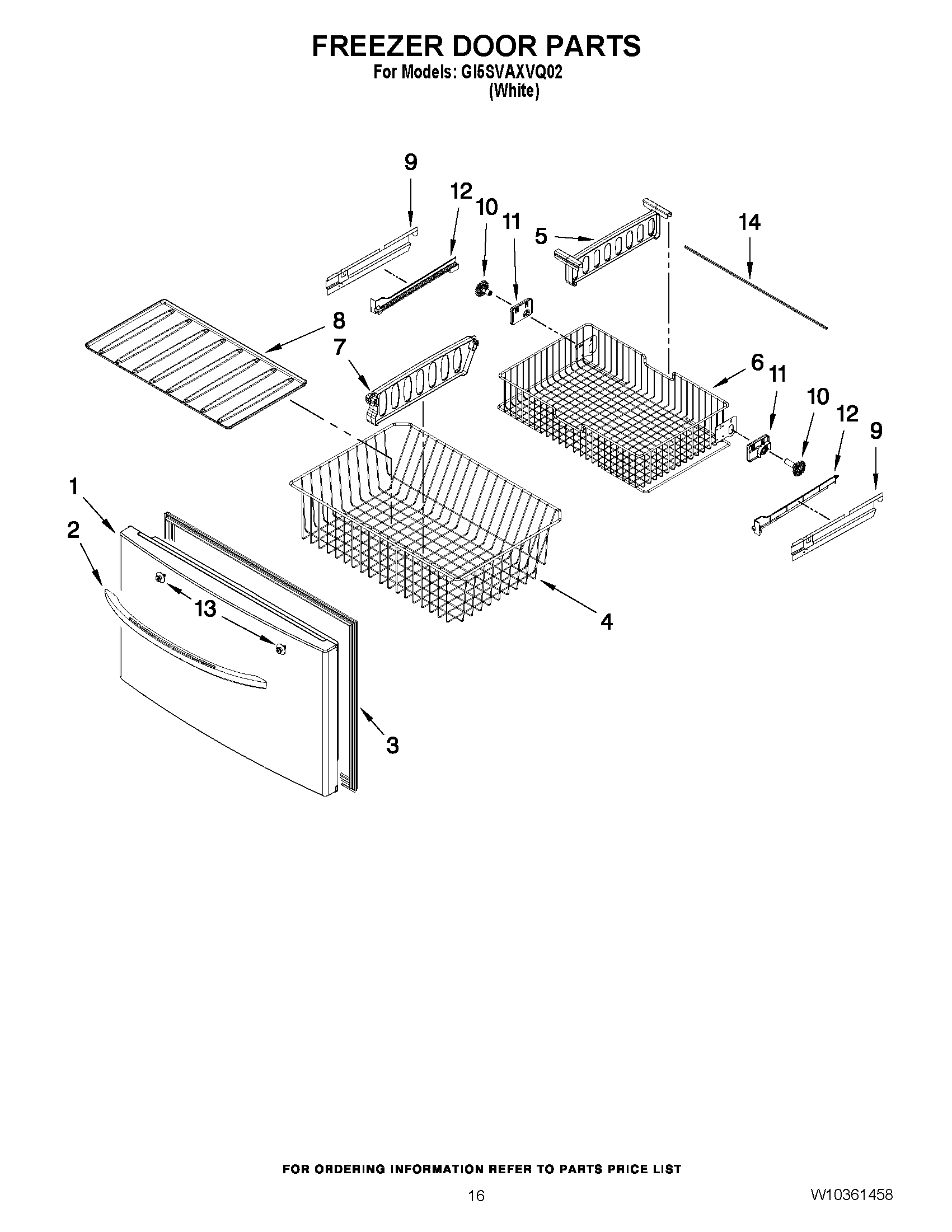

GI5SVAXVQ02 09 – FREEZER DOOR PARTS

Products

Position	Product
1	12977863WQ Whirlpool Refrigerator Door Flipper White
2	HANDLE, DOOR (WHITE)
3	WPW10443321 Whirlpool Door Gasket
4	Basket, Freezer (Lower)
5	W10146439 Whirlpool Refrigerator Divider
6	W11218042 Whirlpool Refrigerator Freezer Basket
7	W10847995 Whirlpool Divider Assembly
8	Tray, Lower Basket
9	WPW10280608 Whirlpool Refrigerator Bracket
9	WPW10280613 Whirlpool Refrigerator Bracket
10	WPW10474716 Whirlpool Refrigerator Gear
10	WPW10474715 Whirlpool Refrigerator Gear
11	W10348260 Whirlpool Refrigerator Bracket
11	W10348259 Whirlpool Refrigerator Bracket Assembly
12	W11489994 Whirlpool Refrigerator Rail
12	W11489993 Whirlpool Refrigerator Rail
13	WP12992902 Whirlpool Refrigerator Screw
14	W11173556 Whirlpool Refrigerator Shaft
