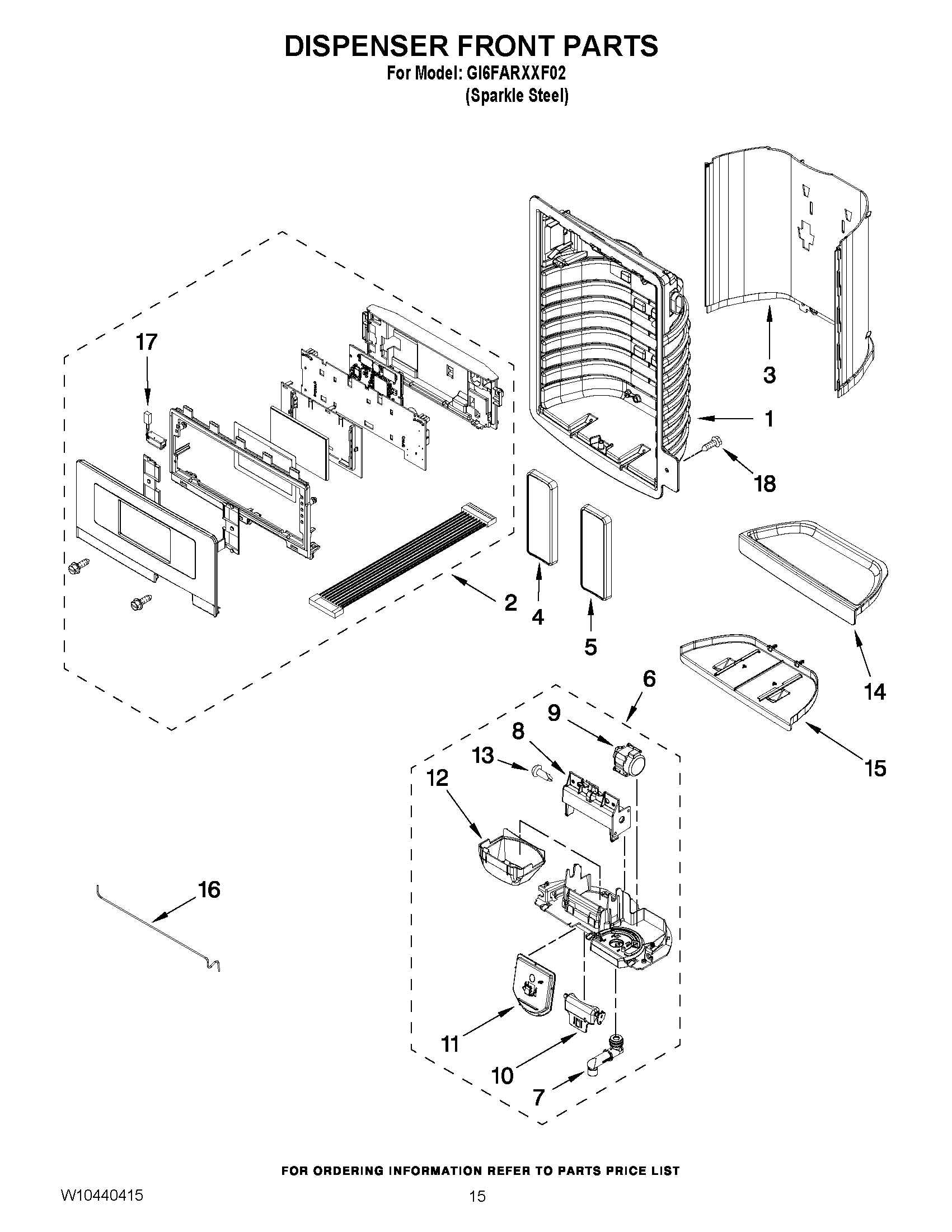

GI6FARXXF02 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11184112 Whirlpool Refrigerator Electronic Control Board + Core
3	W11045978 Whirlpool Refrigerator Shield
4	WPW10368730 Whirlpool Refrigerator Pad
6	WPW10353552 Whirlpool Refrigerator Separator
7	W11227371 Whirlpool Refrigerator Spigot
8	W10174827 Whirlpool Refrigerator Bracket
9	WPW10205979 Whirlpool Refrigerator Ice Door Motor
10	WPW10346124 Whirlpool Refrigerator Support
11	WPW10317279 Whirlpool Refrigerator Door Chute
12	WPW10435760 Whirlpool Refrigerator Ice Guide
13	WP4449745 Whirlpool Screw
14	W11192301 Whirlpool Refrigerator Drip Tray
15	WPW10267863 Whirlpool Refrigerator Drip Tray
16	WPW10296451 Whirlpool Refrigerator Water Tube
17	W11290115 Whirlpool Refrigerator Light
18	WPW10273971 Whirlpool Screw
