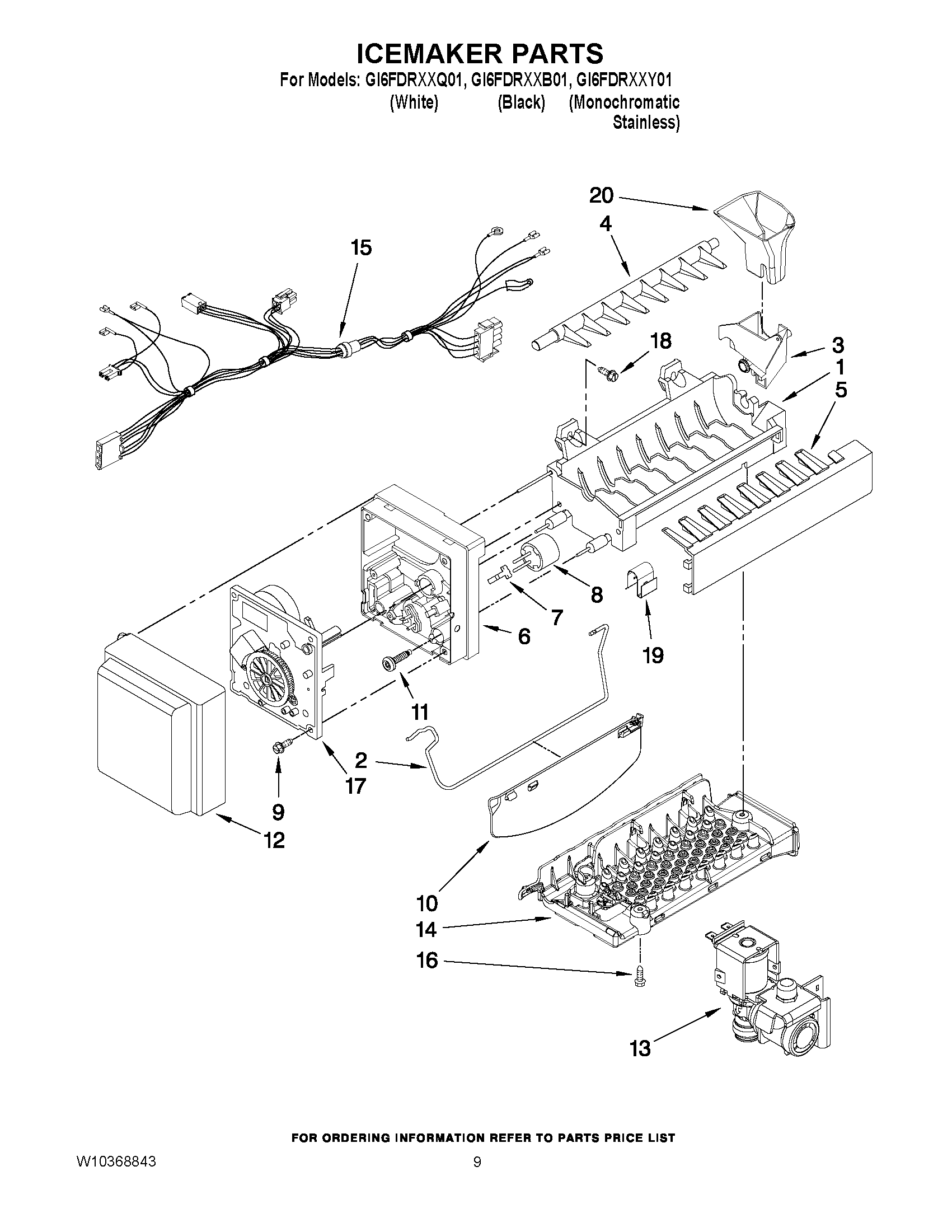

GI6FDRXXQ01 05 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	WPW10300025 Whirlpool Refrigerator Ice Mold
2	WPW10175514 Whirlpool Refrigerator Shut-Off Arm
3	W10327050 Whirlpool Refrigerator Cup Fill
4	W10318914 Whirlpool Refrigerator Ejector Arm
5	WPW10122563 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	628532 Whirlpool Refrigerator Thermostat
10	WPW10121440 Whirlpool Refrigerator Extension
11	8533917 Whirlpool Refrigerator Screw
12	W10884722 Whirlpool Refrigerator Front Cover
13	VALVE-INLT REFR
14	WPW10312691 Whirlpool Refrigerator Air Baffle
15	HARNESS, ICEMAKER
16	67006425 Whirlpool Refrigerator Screw
17	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
18	W10001240 Whirlpool Refrigerator Screw
19	WP628379 Whirlpool Refrigerator Clip
20	WPW10121434 Whirlpool Refrigerator Insert
100	WPW10300024 Whirlpool Ice Maker
