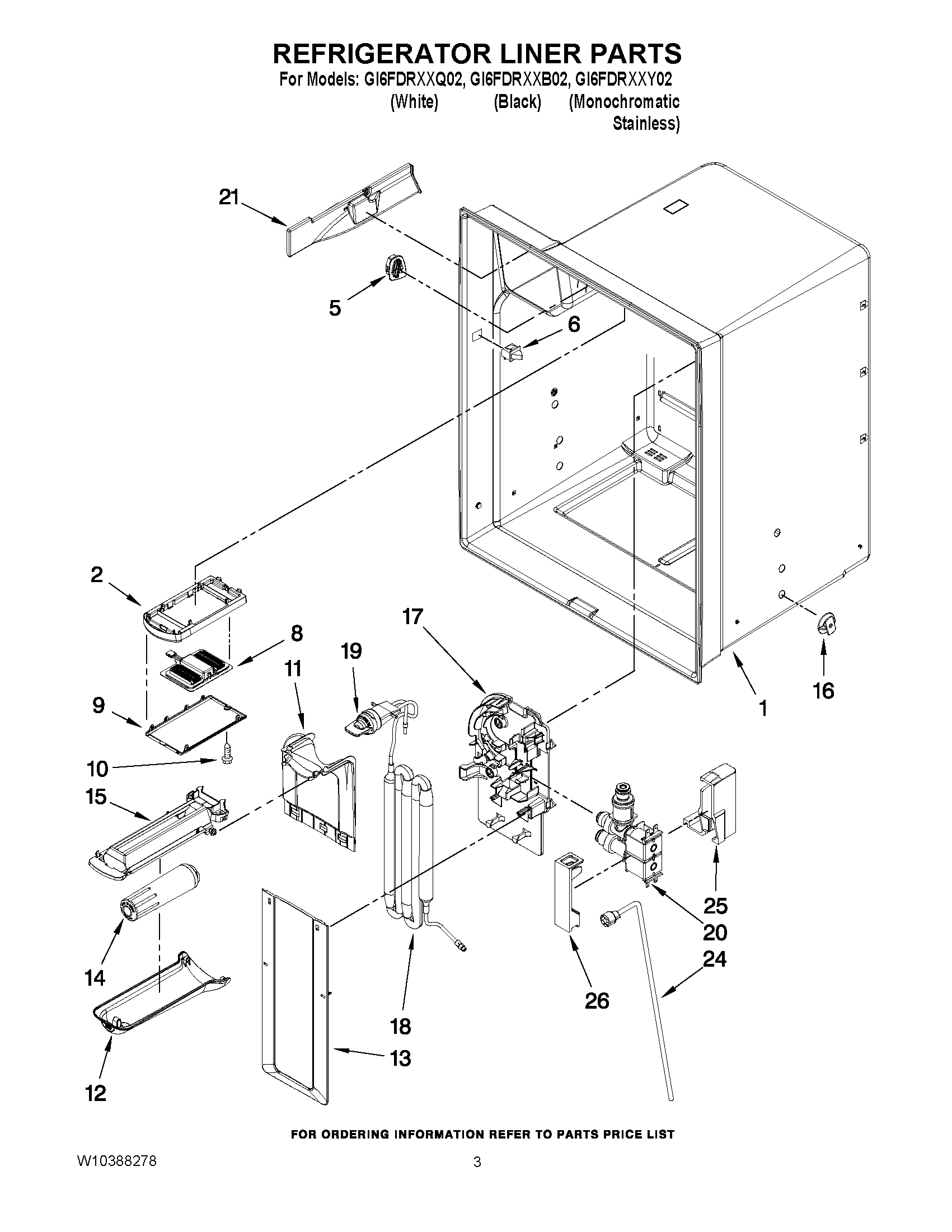

GI6FDRXXQ02 02 – REFRIGERATOR LINER PARTS

GI6FDRXXQ02 02 – REFRIGERATOR LINER PARTS

Written by

in

GI6FDRXXQ02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11684721 Whirlpool Housing Assembly
5W10555984 Whirlpool Refrigerator Grille
6W11396033 Whirlpool Refrigerator Rocker Switch
8W11125428 Whirlpool Electronic Control Board + Core
9W10311756 Whirlpool Refrigerator Light Lens
10W11311945 Whirlpool Refrigerator Screw
1112960101 Whirlpool Refrigerator Cover
12WP67006331 Whirlpool Refrigerator Water Filter Cover
1367006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
1567006325 Whirlpool Filter Base Bracket
16W10190541 Whirlpool Refrigerator Crisp Mount
1767006324 Whirlpool Refrigerator Bracket
18W10502642 Whirlpool Refrigerator Reservoir
19W11395888 Whirlpool Refrigerator Bypass Filter Cap
20WPW10312696 Whirlpool Water Inlet Valve
21WPW10309869 Whirlpool Refrigerator Cover
24WATERLINE, CABINET (W/NUT)
25W10118193 Whirlpool Refrigerator Cover
26W10118194 Whirlpool Refrigerator Cover
