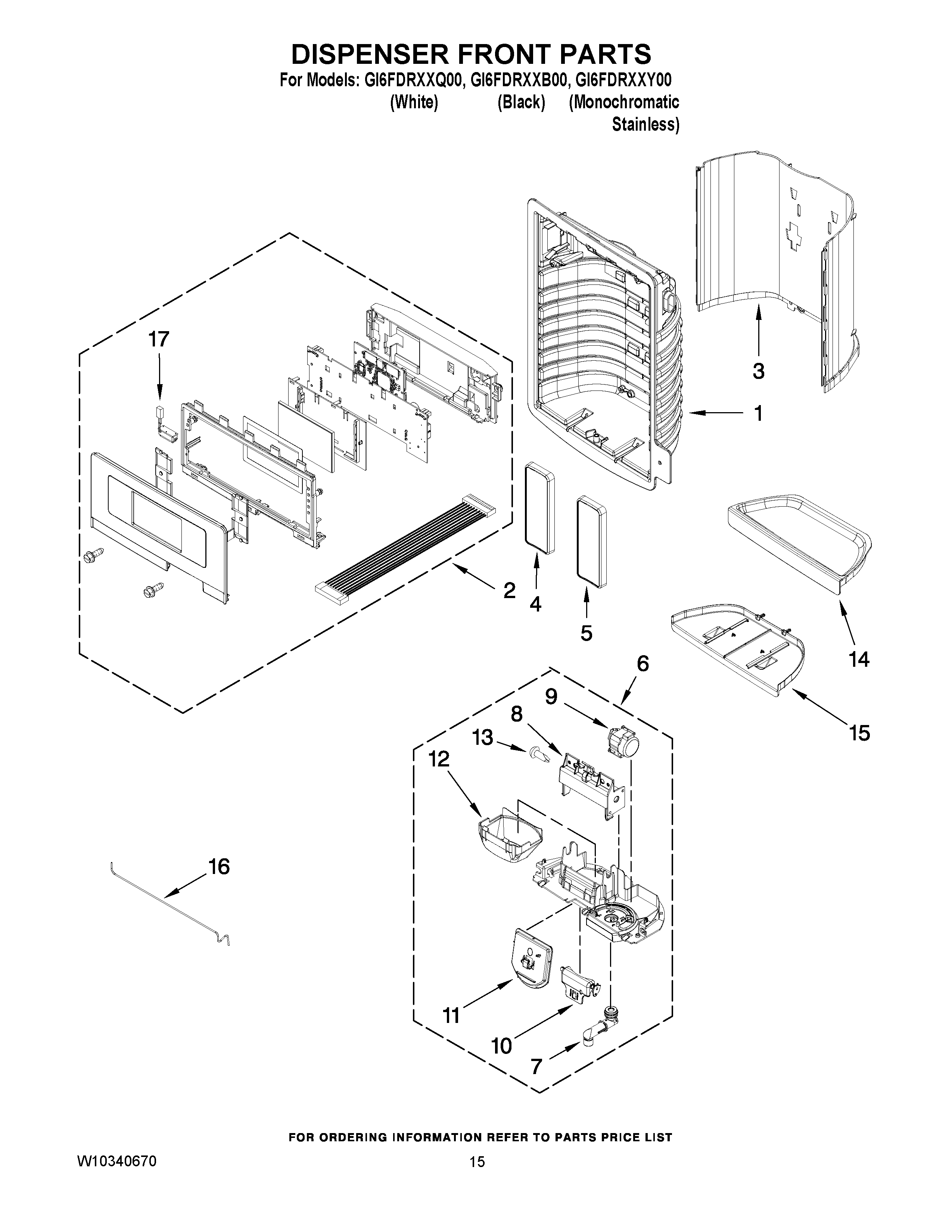

GI6FDRXXY00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11184112 Whirlpool Refrigerator Electronic Control Board + Core
3W11045976 Whirlpool Refrigerator Shield
3W11045975 Whirlpool Refrigerator Shield
3W11045978 Whirlpool Refrigerator Shield
4PAD, ICE (WHITE)
5W10368729 Whirlpool Refrigerator Pad
5WPW10368730 Whirlpool Refrigerator Pad
5PAD, WATER (WHITE)
6WPW10353552 Whirlpool Refrigerator Separator
7W11227371 Whirlpool Refrigerator Spigot
8W10174827 Whirlpool Refrigerator Bracket
9WPW10205979 Whirlpool Refrigerator Ice Door Motor
10WPW10346124 Whirlpool Refrigerator Support
11W10346235 Whirlpool Refrigerator Chute Door
12WPW10435760 Whirlpool Refrigerator Ice Guide
13WP4449745 Whirlpool Screw
14W11192301 Whirlpool Refrigerator Drip Tray
14W11045970 Whirlpool Refrigerator Drip Tray
14W11045971 Whirlpool Refrigerator Drip Tray
15W10267861 Whirlpool Refrigerator Drip Tray
15W10267860 Whirlpool Refrigerator Drip Tray
15WPW10267863 Whirlpool Refrigerator Drip Tray
16WPW10296451 Whirlpool Refrigerator Water Tube
17W11290115 Whirlpool Refrigerator Light
