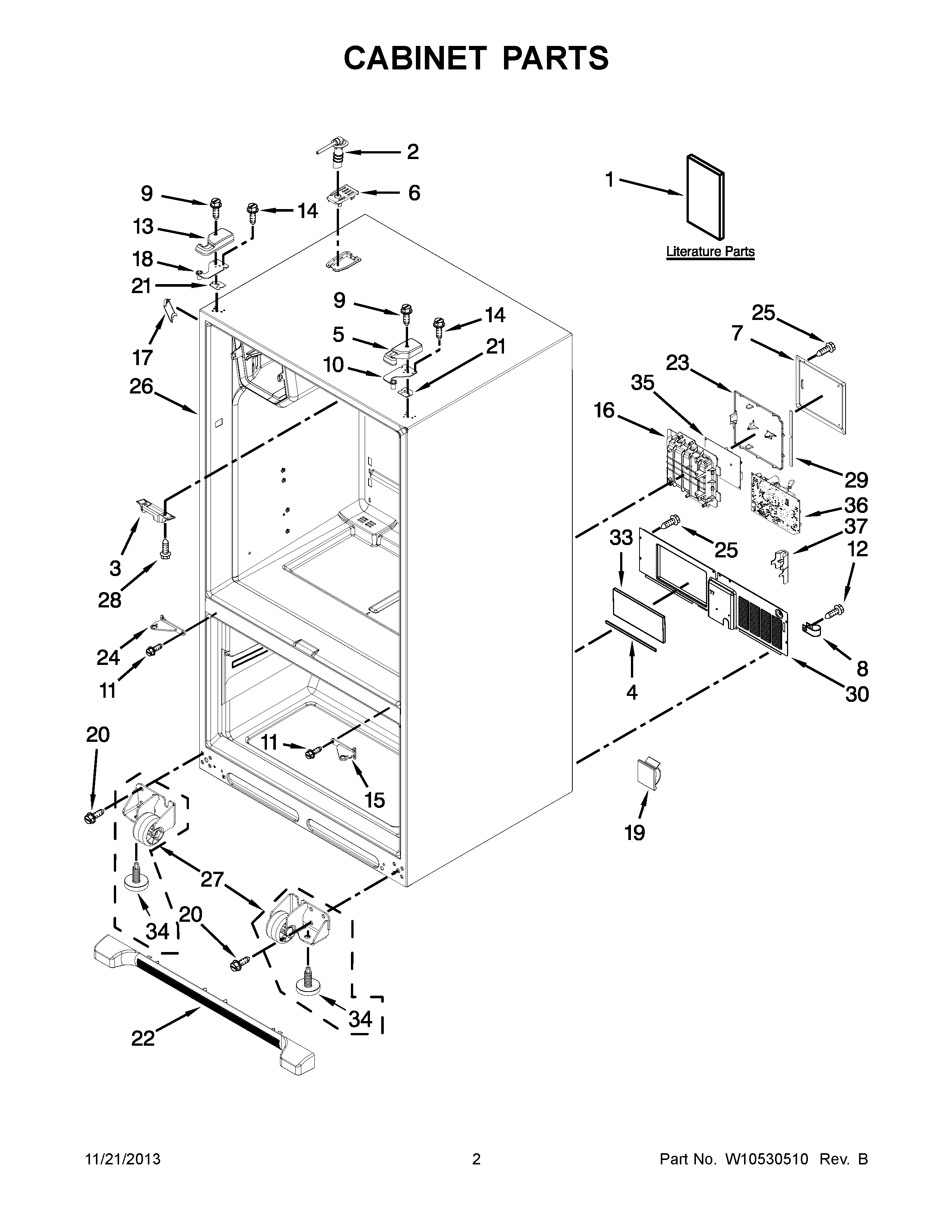

GI6FDRXXY09 02 – CABINET PARTS

GI6FDRXXY09 02 – CABINET PARTS

Written by

in

GI6FDRXXY09 02 – CABINET PARTS

Products

PositionProduct
1GUIDE, ENERGY
1TECH SHEET
1USE & CARE GUIDE
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WPW10191117 Whirlpool Refrigerator Cover
6W10191141 Whirlpool Refrigerator Tube Cover
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592374 Whirlpool Refrigerator Top Door Hinge
11WP67006380 Whirlpool Screw
1267006425 Whirlpool Refrigerator Screw
13WPW10337648 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
16WPW10456699 Whirlpool Refrigerator Box
17WP12587703AP Whirlpool Refrigerator Filler
18W11592375 Whirlpool Door Hinge
19WPM0104106 Whirlpool Refrigerator Clip
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
2112999502 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W10296541 Whirlpool Refrigerator Wire Cover
24W10917988 Whirlpool Refrigerator Door Hinge
25W11686675 Whirlpool Screw
26CABINET (NOT A SERVICEABLE PART)
27WPW10515762 Whirlpool Refrigerator Cabinet Roller
27WPW10515763 Whirlpool Refrigerator Cabinet Roller
28W10854958 Whirlpool Refrigerator Screw
29GASKET, HV BOX
30W10211854 Whirlpool Refrigerator Back Cover
33INSULATION, SOUND
34WPW10141622 Whirlpool Leveler
35WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
36W11035752 Whirlpool Electronic Control Board + Core
37W10208592 Whirlpool Refrigerator Valve Cover
