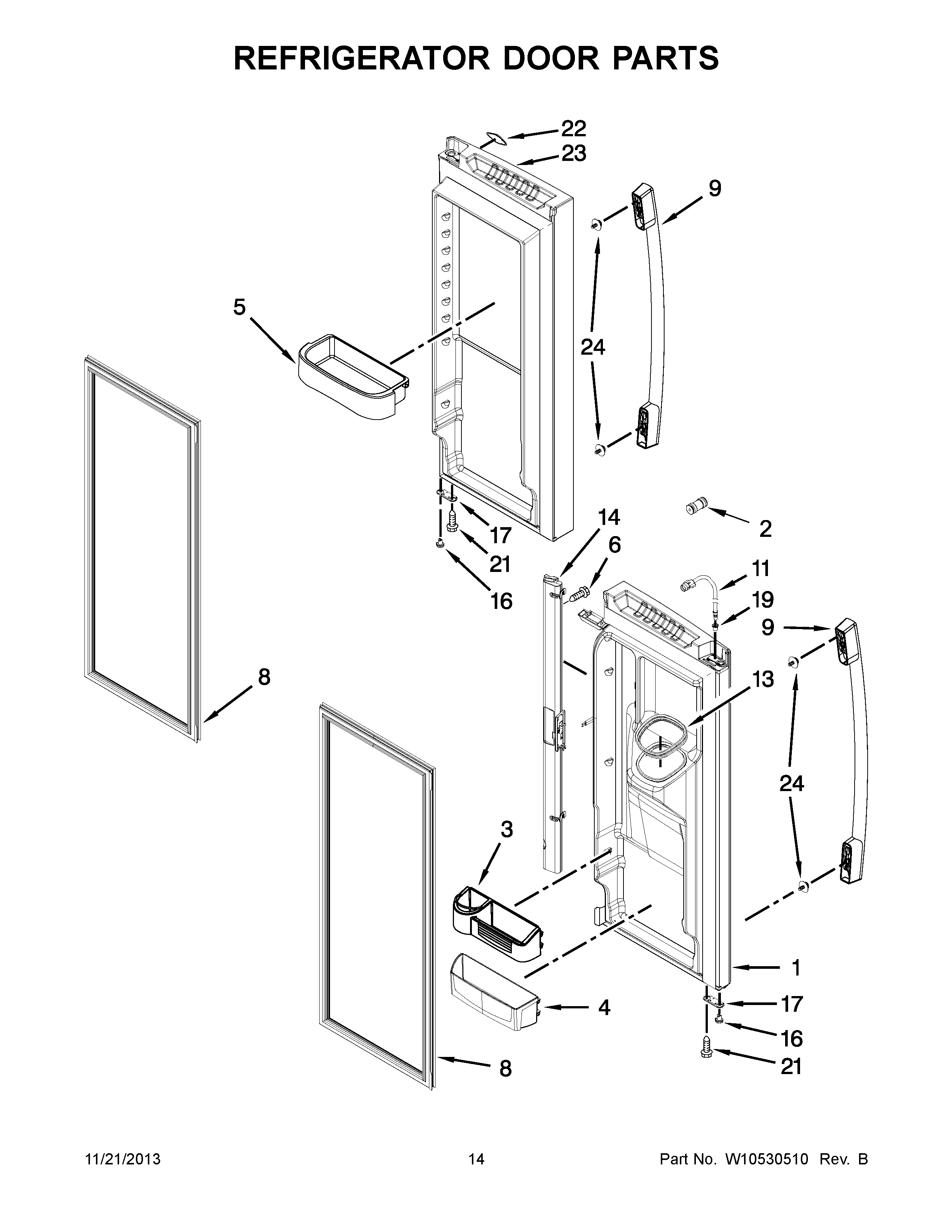

GI6FDRXXY09 08 – REFRIGERATOR DOOR PARTS

GI6FDRXXY09 08 – REFRIGERATOR DOOR PARTS

Written by

in

GI6FDRXXY09 08 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113107322SQ Whirlpool Refrigerator DOR-FIP SS
2WPW10334458 Whirlpool Refrigerator Connector
3WPW10323808 Whirlpool Refrigerator Cantilever Bin
4WPW10212139 Whirlpool Refrigerator Door Shelf Bin
5WPW10224961 Whirlpool Refrigerator Door Shelf Bin
6W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP GRAY
9W11351147 Whirlpool Refrigerator Handle
11WPW10296451 Whirlpool Refrigerator Water Tube
13WPW10287601 Whirlpool Seal
14MULLION, DOOR (WHITE)
16WP12028505AP Whirlpool Closing Cam
17W11703060 Whirlpool Door Stop
1912996601 Whirlpool Refrigerator Bushing Clip
21WP98165 Whirlpool Screw
22WPW10393265 Whirlpool Refrigerator Nameplate
2313107316SQ Whirlpool Refrigerator DOR-FIP MS
24WPW10288153 Whirlpool Refrigerator Screw
