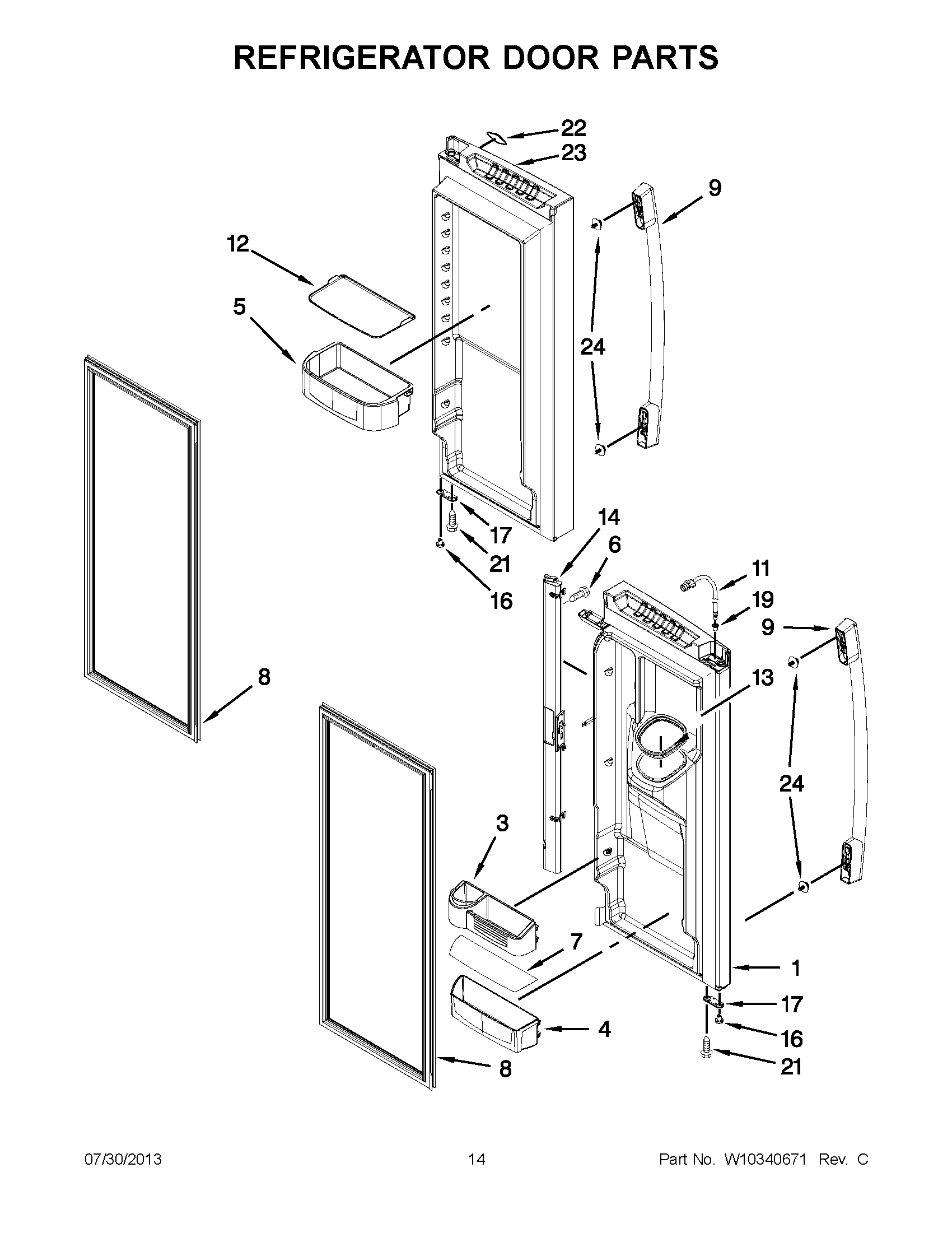

GI6SDRXXQ00 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (UNIVERSAL SILVER)
1	DOOR, LEFT (STAINLESS)
1	DOOR, LEFT (WHITE)
1	DOOR, LEFT (BLACK)
3	WPW10323808 Whirlpool Refrigerator Cantilever Bin
4	WPW10212139 Whirlpool Refrigerator Door Shelf Bin
5	WPW10451501 Whirlpool Refrigerator Cantilever Bin
6	W11311945 Whirlpool Refrigerator Screw
7	GRIPPER, SMALL
8	GASKET-FIP GRAY
8	W11378944 Whirlpool Door Gasket
8	W11396037 Whirlpool Door Gasket
9	W11351146 Whirlpool Refrigerator Handle
9	WPW10222984K Whirlpool Refrigerator Handle Assembly
9	W11351147 Whirlpool Refrigerator Handle
11	WPW10296451 Whirlpool Refrigerator Water Tube
12	W10450033 Whirlpool Refrigerator Mat
13	WPW10287601 Whirlpool Seal
14	WP12722815AP Whirlpool Refrigerator Mullion Rail
14	12722815B Whirlpool Refrigerator Mullion Rail
14	WP12722815W Whirlpool Refrigerator Mullion Rail
16	WP67003638 Whirlpool Closing Cam
16	WP67003639 Whirlpool Refrigerator Closer
16	WP12028505AP Whirlpool Closing Cam
17	W11703060 Whirlpool Door Stop
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
19	12996601 Whirlpool Refrigerator Bushing Clip
21	WP98165 Whirlpool Screw
22	Nameplate
23	DOOR, RIGHT (BLACK)
23	DOOR, RIGHT (WHITE)
23	DOOR, RIGHT (STAINLESS)
23	DOOR, RIGHT (UNIVERSAL SILVER)
24	WP12992902 Whirlpool Refrigerator Screw
