GI6SDRXXQ01 03 – SHELF PARTS

GI6SDRXXQ01 03 – SHELF PARTS

Written by

in

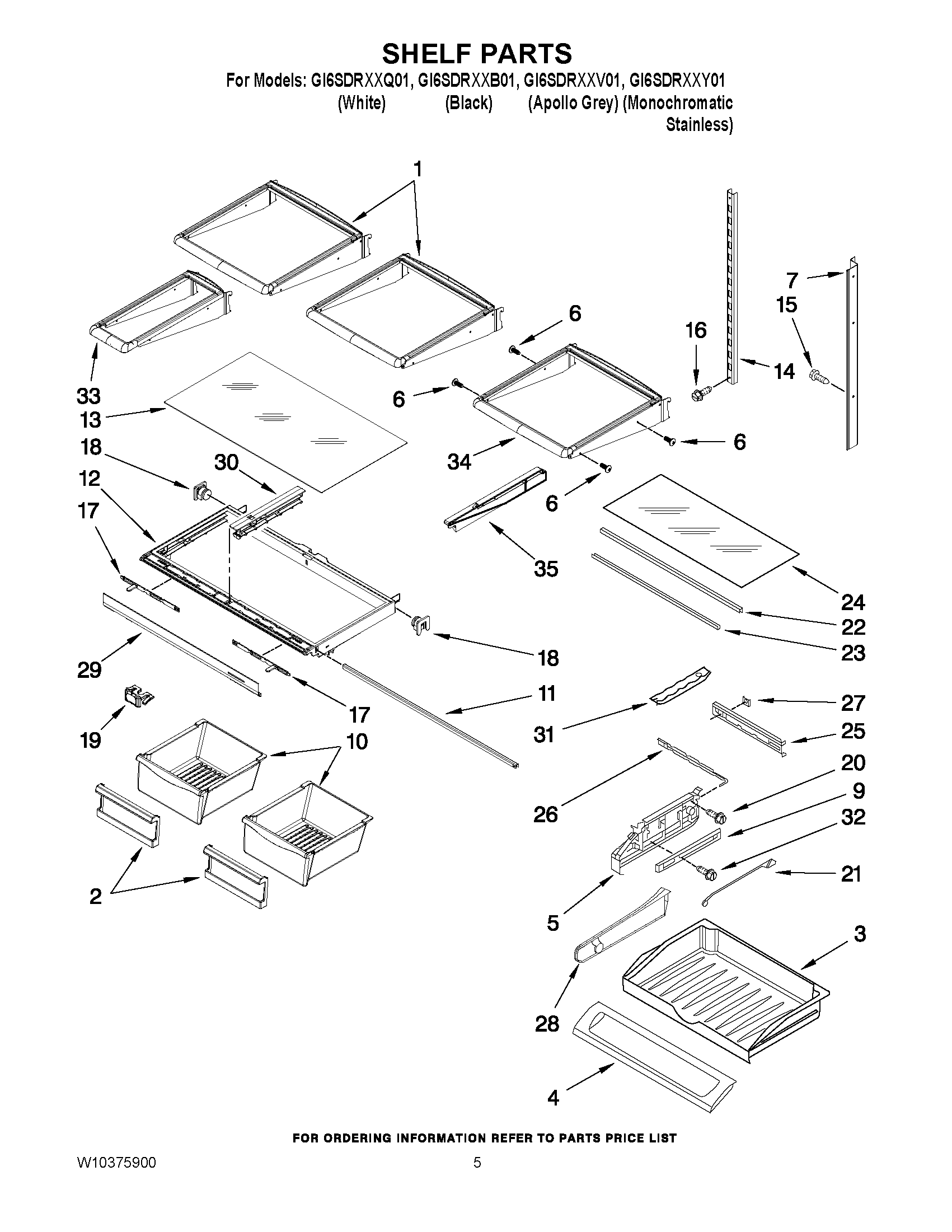

GI6SDRXXQ01 03 – SHELF PARTS

Products

PositionProduct
1W11402525 Whirlpool Glass Shelf
2HANDLE, CRISPER PAN (2)
3WP67003531 Whirlpool Drawer Assembly
4W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
5W10874836 Whirlpool Endcap Assembly Left Hand and Right
6W10854958 Whirlpool Refrigerator Screw
7W10251965 Whirlpool Refrigerator Ladder
7W10251966 Whirlpool Refrigerator Ladder
9WPW10235370 Whirlpool Refrigerator Glide
10WP67004515 Whirlpool Crisper Drawer
11WP12642303WD Whirlpool Refrigerator Drawer Support
12WPW10329866 Whirlpool Frame
13WP67006704 Whirlpool Glass Crisper Cover
14W10273464 Whirlpool Refrigerator Ladder
1567006425 Whirlpool Refrigerator Screw
16W10709795 Whirlpool Refrigerator Screw
17SLIDE
18WP13062602 Whirlpool Refrigerator Support
19W11498983 Whirlpool Refrigerator Knob
20WP98165 Whirlpool Screw
21WP67003795 Whirlpool Refrigerator Temperature Control Bar
22WP67006010 Whirlpool Refrigerator Shelf Trim
23WP12227305WD Whirlpool Drawer Support
24W11033333 Whirlpool Glass Shelf
2512656202 Whirlpool Refrigerator Housing
26WP67003793 Whirlpool Refrigerator Temperature Slide
2767002329 Whirlpool Refrigerator Pantry Gasket
28WP67002759 Whirlpool Refrigerator Divider
29TRIM, CRISPER
30WPW10326469 Whirlpool Drawer Slide Rail
31WP67001719 Whirlpool Refrigerator Track
32WP67006415 Whirlpool Refrigerator Screw
33W11197490 Whirlpool Refrigerator Cantilever Shelf
34WP12883508SP Whirlpool Refrigerator Glass Shelf
35WPW10194031 Whirlpool Refrigerator Glide
35WPW10194032 Whirlpool Refrigerator Glide
