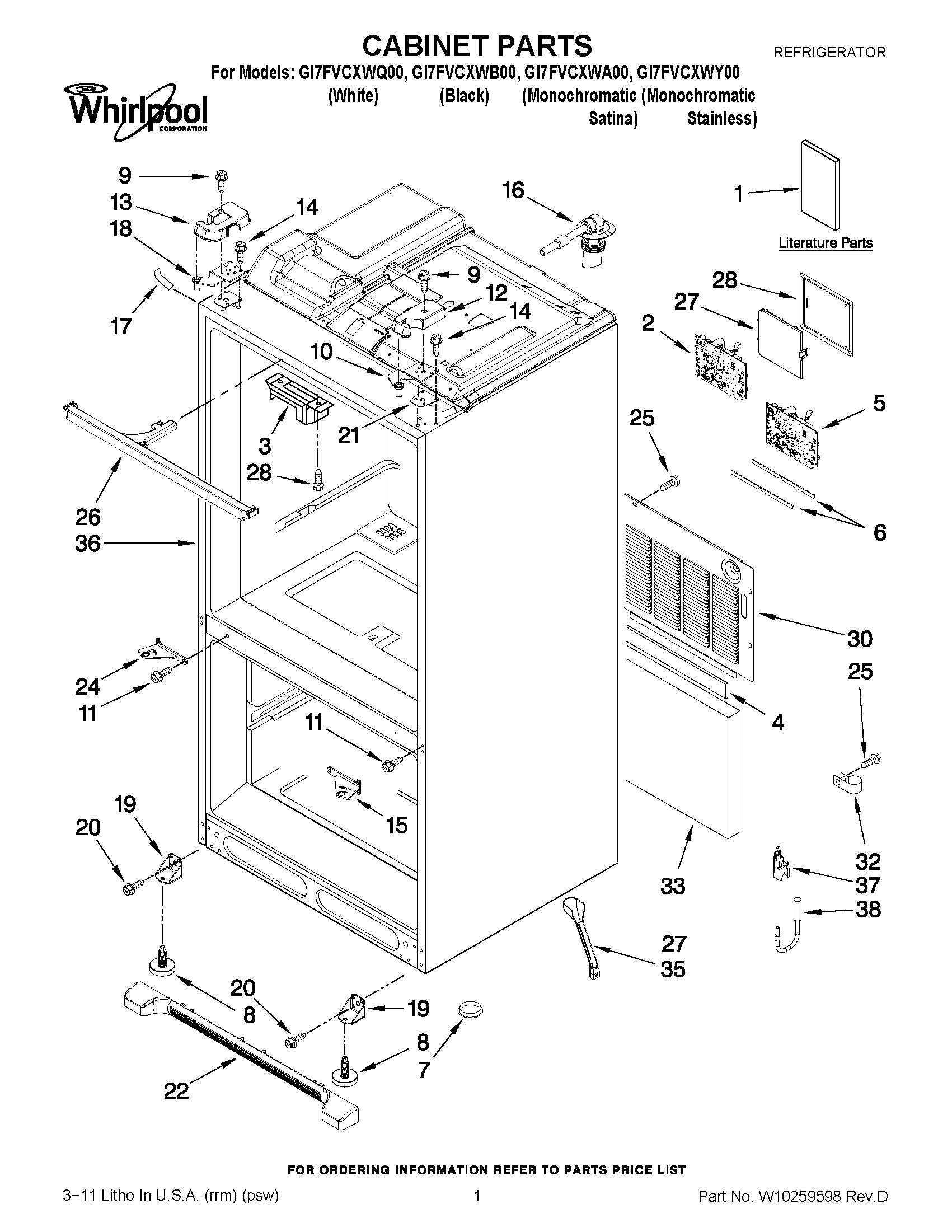

GI7FVCXWB00 01 – CABINET PARTS

GI7FVCXWB00 01 – CABINET PARTS

Written by

in

GI7FVCXWB00 01 – CABINET PARTS

Products

Position	Product
1	Guide, Energy
1	OWNERS MANUAL
1	TECH SHEET
2	WPW10226427 Whirlpool Refrigerator Electronic Control Board
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5	WPW10267646 Whirlpool Refrigerator Electronic Control Board
6	GASKET, HV BOX
7	A3076901 Whirlpool Refrigerator Plug
8	W11177593 Whirlpool Leveling Feet
9	WP8281196 Whirlpool Screw
10	W11592374 Whirlpool Refrigerator Top Door Hinge
11	WP67006380 Whirlpool Screw
12	COVER, RIGHT HINGE (APOLLO GREY)
12	COVER, RIGHT HINGE (WHITE)
12	COVER, RIGHT HINGE (BLACK)
13	COVER, LEFT HINGE (WHITE)
13	COVER, LEFT HINGE (BLACK)
13	COVER, LEFT HINGE (APOLLO GREY)
14	WP489349 Whirlpool Refrigerator Screw
15	13000002WD Whirlpool Refrigerator Door Hinge
15	W10918168 Whirlpool Refrigerator Door Hinge
16	FILL TUBE, ICEMAKER
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	12587703W Whirlpool Refrigerator Cover
17	WP12587703AP Whirlpool Refrigerator Filler
18	W10213415 Whirlpool Refrigerator Door Hinge
19	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22	WPW10534154 Whirlpool Refrigerator Front Grille
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
24	W10918164 Whirlpool Refrigerator Door Hinge
24	W10917988 Whirlpool Refrigerator Door Hinge
24	W10918113 Whirlpool Refrigerator Door Hinge
25	67006425 Whirlpool Refrigerator Screw
26	COVER, WATER LINE (APOLLO GREY)
26	COVER, WATER LINE (BLACK)
26	COVER, WATER LINE (WHITE)
27	LID, HV BOX
28	12961602 Whirlpool Refrigerator Wire Cover
30	WPW10270394 Whirlpool Refrigerator Back Cover
32	W11456069 Whirlpool Refrigerator Clamp
33	INSULATION, SOUND
35	W10619951 Whirlpool Drain Tube with Grommet
36	CABINET (NOT A SERVICEABLE PART)
37	COVE
38	WPL W10223786
