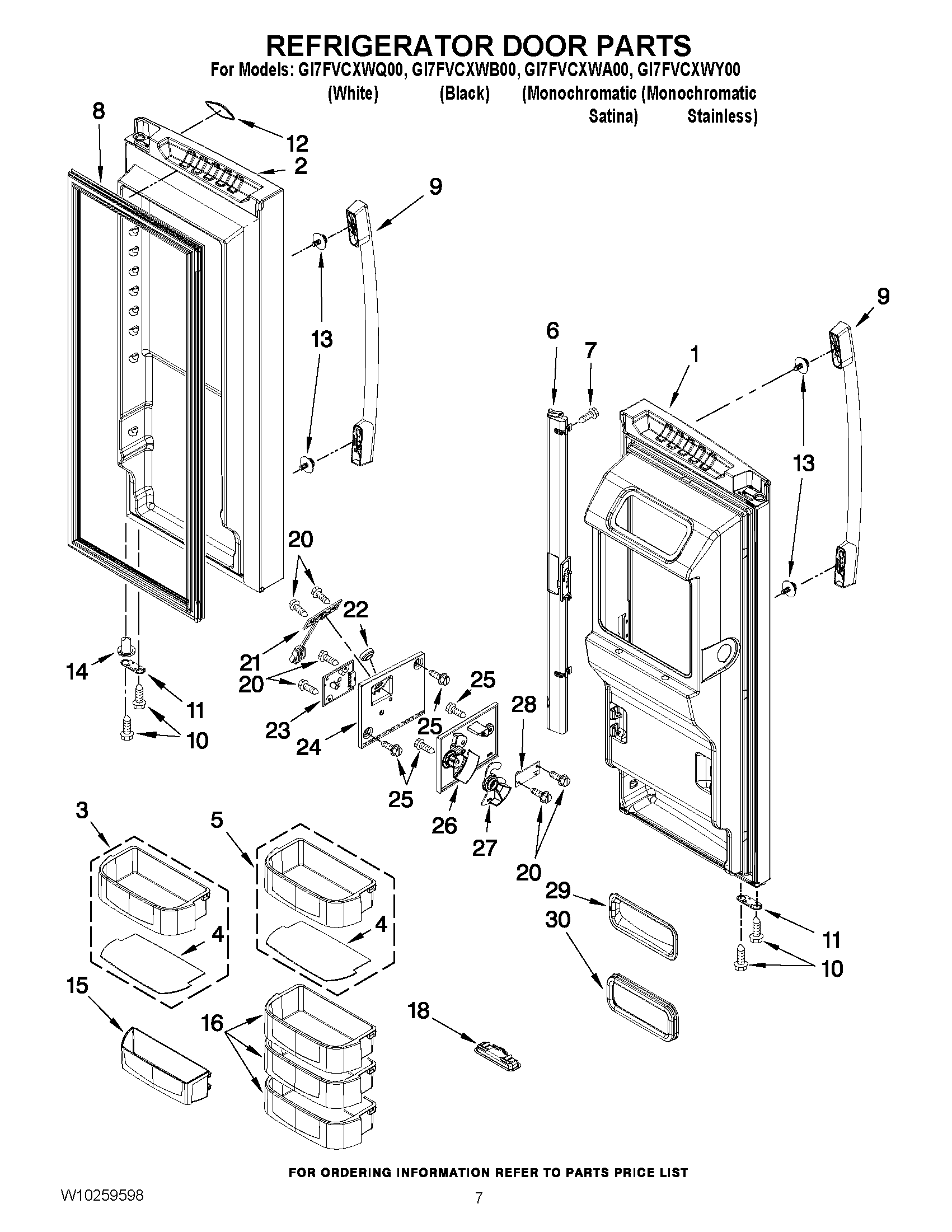

GI7FVCXWB00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (WHITE)
1	DOOR, LEFT (BLACK)
1	DOOR, LEFT (STAINLESS)
1	DOOR, LEFT (SATINA)
2	DOOR, RIGHT (STAINLESS)
2	DOOR, RIGHT (BLACK)
2	DOOR, RIGHT (SATINA)
2	DOOR, RIGHT (WHITE)
3	BUCKET, DOOR GALLON (RH) (INCLUDES No.4)
4	GRIPPER, GALLON
5	BUCKET, DOOR GALLON (LH) (INCLUDES No.4)
6	WP12722815W Whirlpool Refrigerator Mullion Rail
6	12722815B Whirlpool Refrigerator Mullion Rail
6	WP12722815AP Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	GASKET-FIP GRAY
8	W11378944 Whirlpool Door Gasket
8	W11396037 Whirlpool Door Gasket
9	W11351146 Whirlpool Refrigerator Handle
9	WPW10222984K Whirlpool Refrigerator Handle Assembly
9	W11351147 Whirlpool Refrigerator Handle
10	WP98165 Whirlpool Screw
11	W11703060 Whirlpool Door Stop
11	W11708403 Whirlpool Door Stop
11	12968202W Whirlpool Refrigerator Door Stop
12	Nameplate
13	WP12992902 Whirlpool Refrigerator Screw
14	WP67003639 Whirlpool Refrigerator Closer
14	WP67003638 Whirlpool Closing Cam
14	WP12028505AP Whirlpool Closing Cam
15	WPW10212139 Whirlpool Refrigerator Door Shelf Bin
16	BUCKET, DOOR GALLON (RH) (WITHOUT GRIPPER)
18	LATCH, ICE BIN
20	2006254 Whirlpool Refrigerator Screw
21	WPW10305123 Whirlpool Refrigerator Electronic Control Board
22	LENS, ICE BIN LED
23	BOARD, RECEIVER
24	COVER, RECEIVER
25	WP3400065 Whirlpool Refrigerator Screw
26	COVER, EMITTER
27	SHUTOFF, EMITTER
28	W10870822 Whirlpool Refrigerator Electronic Control Board
29	SEAL, ICE DOOR
30	GASKET, ICE CHUTE
