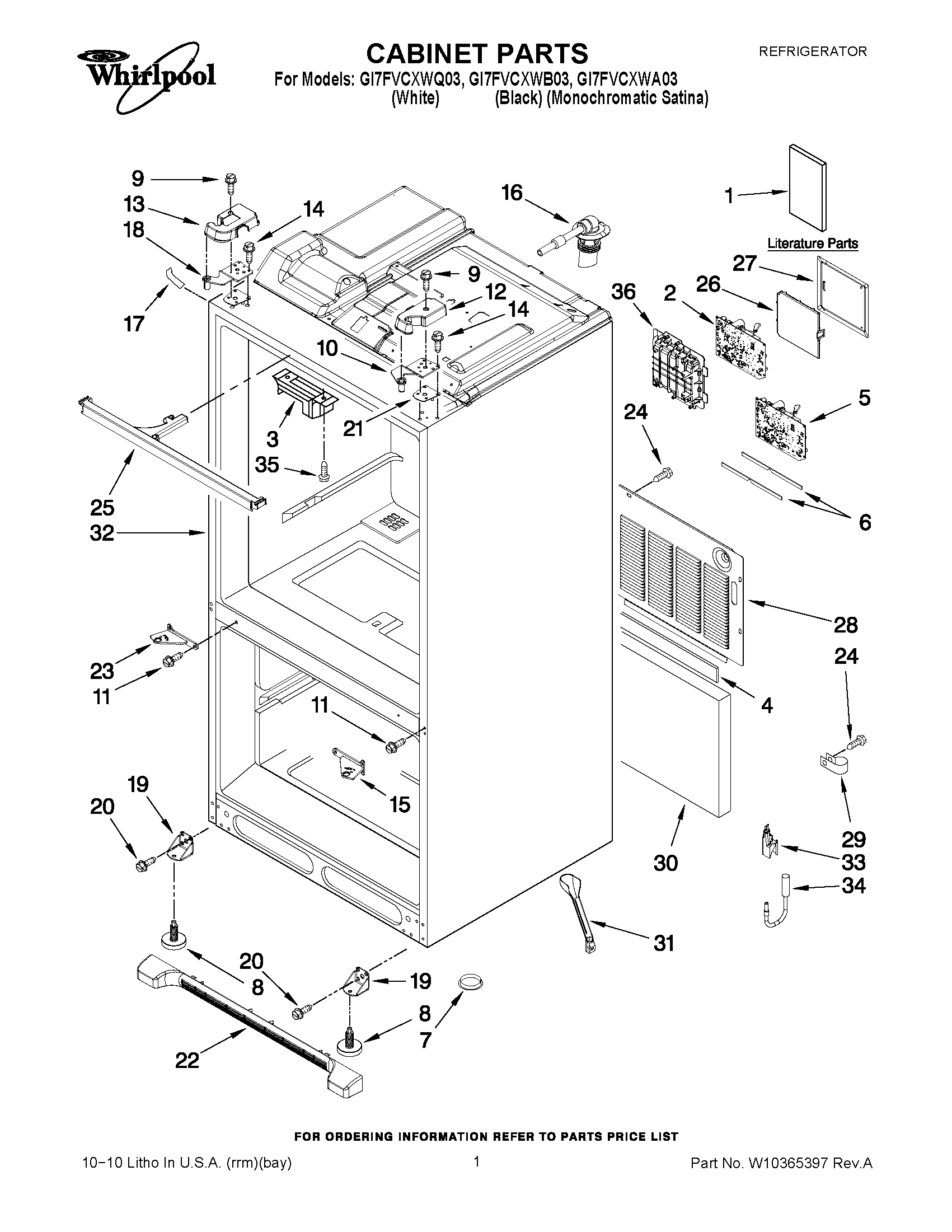

GI7FVCXWB03 01 – CABINET PARTS

GI7FVCXWB03 01 – CABINET PARTS

Written by

in

GI7FVCXWB03 01 – CABINET PARTS

Products

Position	Product
1	TAG, ENERGY
1	TECH SHEET
1	OWNERS MANUAL
2	WPW10226427 Whirlpool Refrigerator Electronic Control Board
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5	WPW10267646 Whirlpool Refrigerator Electronic Control Board
6	GASKET-HV CNTRL-2
7	A3076901 Whirlpool Refrigerator Plug
8	WPW10141622 Whirlpool Leveler
9	WP8281196 Whirlpool Screw
10	W11592374 Whirlpool Refrigerator Top Door Hinge
11	WP67006380 Whirlpool Screw
12	COVER, RIGHT HINGE (WHITE)
12	COVER, RIGHT HINGE (APOLLO GREY)
12	COVER, RIGHT HINGE (BLACK)
13	COVER, LEFT HINGE (WHITE)
13	COVER, LEFT HINGE (BLACK)
13	COVER, LEFT HINGE (APOLLO GREY)
14	WP489349 Whirlpool Refrigerator Screw
15	13000002WD Whirlpool Refrigerator Door Hinge
15	W10918168 Whirlpool Refrigerator Door Hinge
16	FILL TUBE, ICEMAKER
17	12587703W Whirlpool Refrigerator Cover
17	WP12587703AP Whirlpool Refrigerator Filler
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	W10319345 Whirlpool Refrigerator Door Hinge
19	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	12999501 Whirlpool Refrigerator Hinge Shim
21	12999502 Whirlpool Refrigerator Hinge Shim
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22	WPW10534154 Whirlpool Refrigerator Front Grille
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	W10918164 Whirlpool Refrigerator Door Hinge
23	W10917988 Whirlpool Refrigerator Door Hinge
23	W10918113 Whirlpool Refrigerator Door Hinge
24	67006425 Whirlpool Refrigerator Screw
25	COVER, WATER LINE (BLACK)
25	COVER, WATER LINE (APOLLO GREY)
25	COVER, WATER LINE (WHITE)
26	W11226688 Whirlpool Refrigerator Cover
27	12961602 Whirlpool Refrigerator Wire Cover
28	WPW10270394 Whirlpool Refrigerator Back Cover
29	W11456069 Whirlpool Refrigerator Clamp
30	INSULATION, SOUND
31	W10619951 Whirlpool Drain Tube with Grommet
32	CABINET (NOT A SERVICEABLE PART)
33	COVE
34	WPL W10223786
35	W10854958 Whirlpool Refrigerator Screw
36	WPL W10159461
