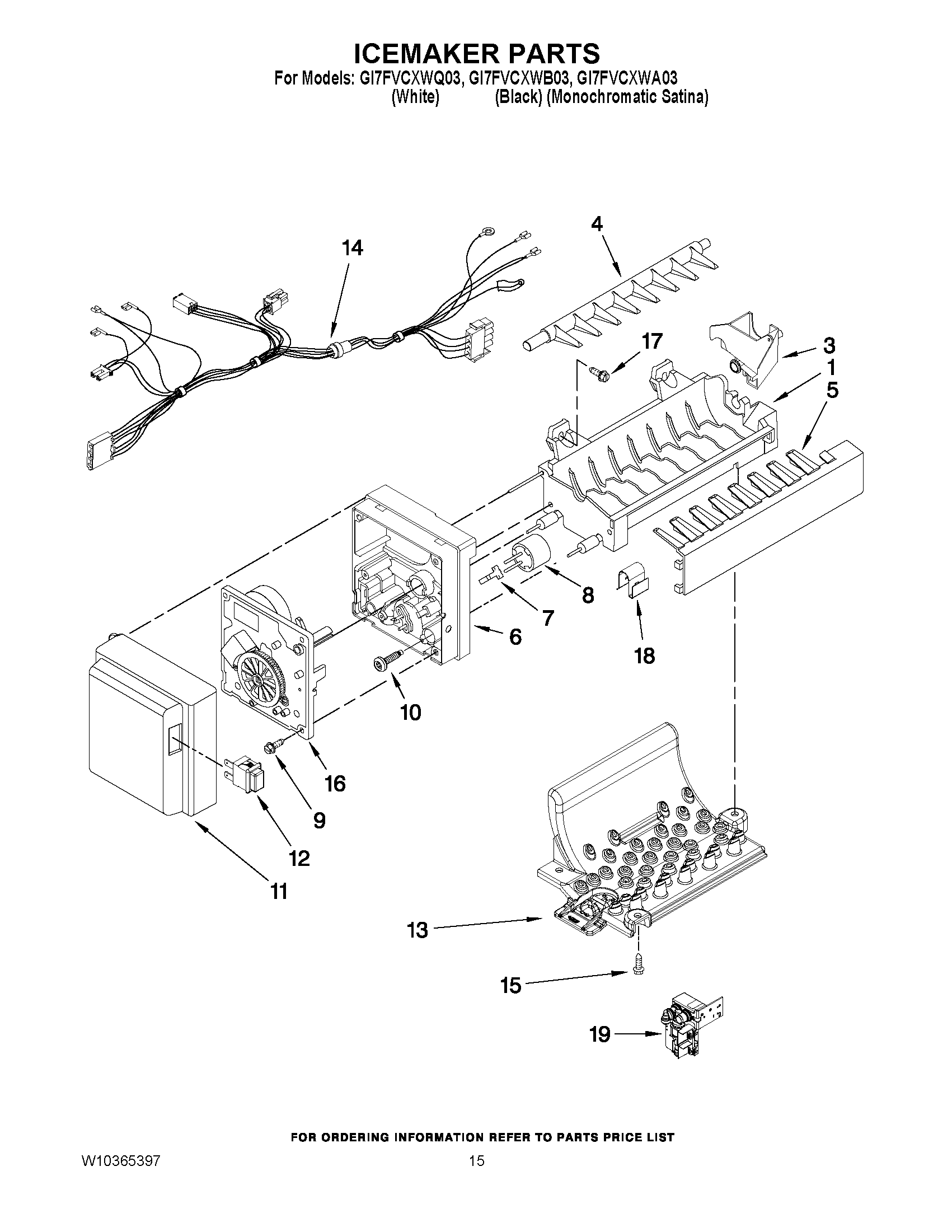

GI7FVCXWB03 08 – ICEMAKER PARTS

GI7FVCXWB03 08 – ICEMAKER PARTS

Written by

in

GI7FVCXWB03 08 – ICEMAKER PARTS

Products

PositionProduct
NIW11033771 Whirlpool Refrigerator Coupling
1W10161596 Whirlpool Refrigerator Ice Mold
3W10160726 Whirlpool Refrigerator Cup Fill
4W10318644 Whirlpool Refrigerator Ejector Arm
5ICE STRIPPER
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8WP627985 Whirlpool Icemaker Cycling Thermostat
9W10001240 Whirlpool Refrigerator Screw
108533917 Whirlpool Refrigerator Screw
11COVER
12W10884855 Whirlpool Refrigerator Switch
13DUCT, IMPINGER TOP
14HARNESS, ICEMAKER
1567006425 Whirlpool Refrigerator Screw
168201515 Whirlpool Refrigerator Motor and Gear Module Kit
17489136 Whirlpool Refrigerator Screw
18WP628379 Whirlpool Refrigerator Clip
19WPW10270395 Whirlpool Refrigerator Valve
100WPW10122559 Whirlpool Refrigerator Icemaker
