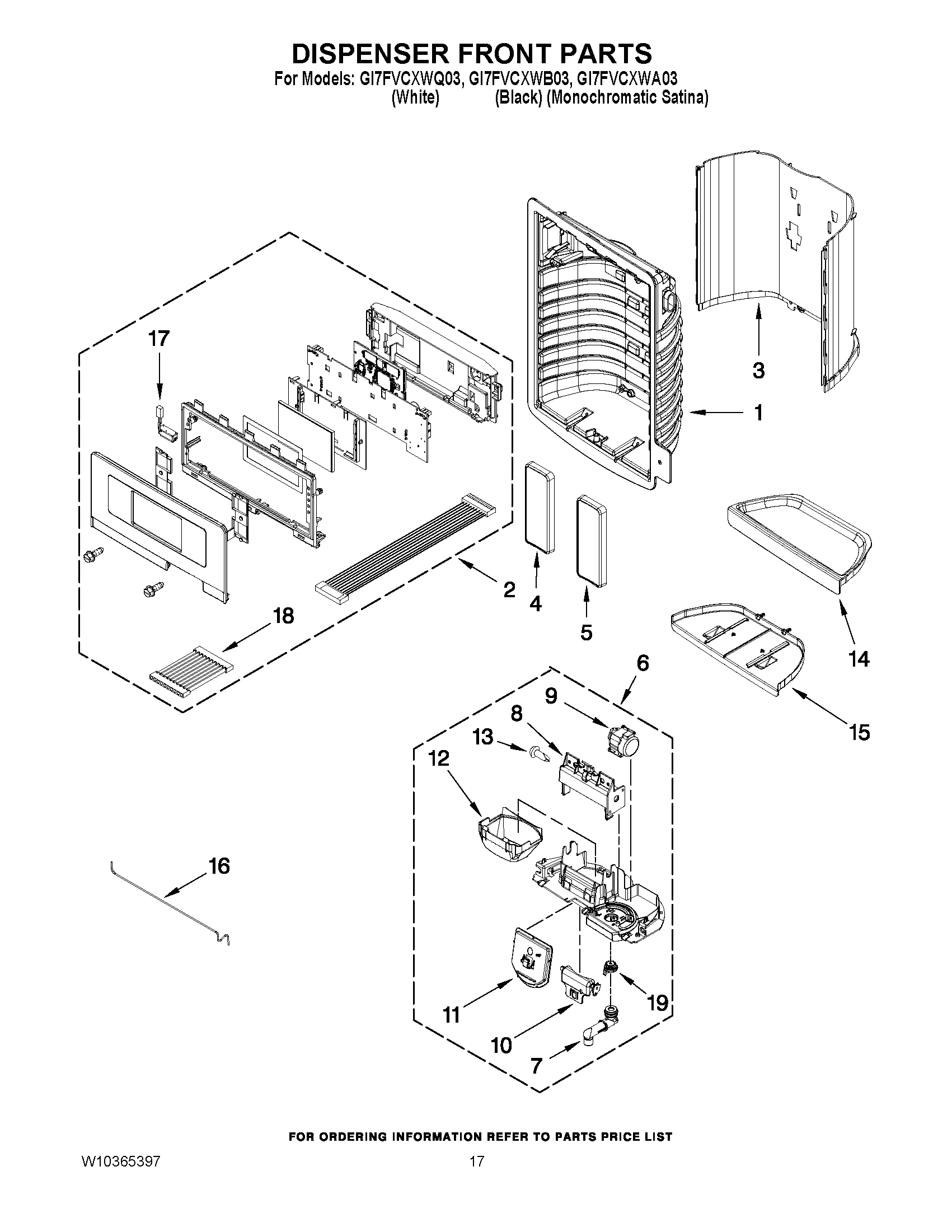

GI7FVCXWB03 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	UI ASSEMBLY (WHITE)
2	UI ASSEMBLY (BLACK)
2	UI ASSEMBLY (SATINA)
3	W11045975 Whirlpool Refrigerator Shield
3	FALSE WALL, DISPENSER (SATINA)
3	W11045976 Whirlpool Refrigerator Shield
4	W10368728 Whirlpool Refrigerator Pad
4	W10368729 Whirlpool Refrigerator Pad
4	WPW10368730 Whirlpool Refrigerator Pad
6	SEPARATOR ASSEMBLY (WHITE)
6	SEPARATOR ASSEMBLY (BLACK)
6	SEPARATOR ASSEMBLY (SATINA)
7	W11227371 Whirlpool Refrigerator Spigot
8	W10174827 Whirlpool Refrigerator Bracket
9	WPW10205979 Whirlpool Refrigerator Ice Door Motor
10	WPW10346124 Whirlpool Refrigerator Support
11	W10346235 Whirlpool Refrigerator Chute Door
12	WPW10435760 Whirlpool Refrigerator Ice Guide
13	W10174818 Whirlpool Refrigerator Clip
14	TRAY, DISPENSER (SATINA)
14	W11045970 Whirlpool Refrigerator Drip Tray
14	W11045971 Whirlpool Refrigerator Drip Tray
15	WPW10267863 Whirlpool Refrigerator Drip Tray
15	W10267860 Whirlpool Refrigerator Drip Tray
15	W10267861 Whirlpool Refrigerator Drip Tray
16	TUBE, WATER (DISPENSER)
17	W11290115 Whirlpool Refrigerator Light
18	HARNESS, JUMPER
19	DAMPER-SPIGOT
