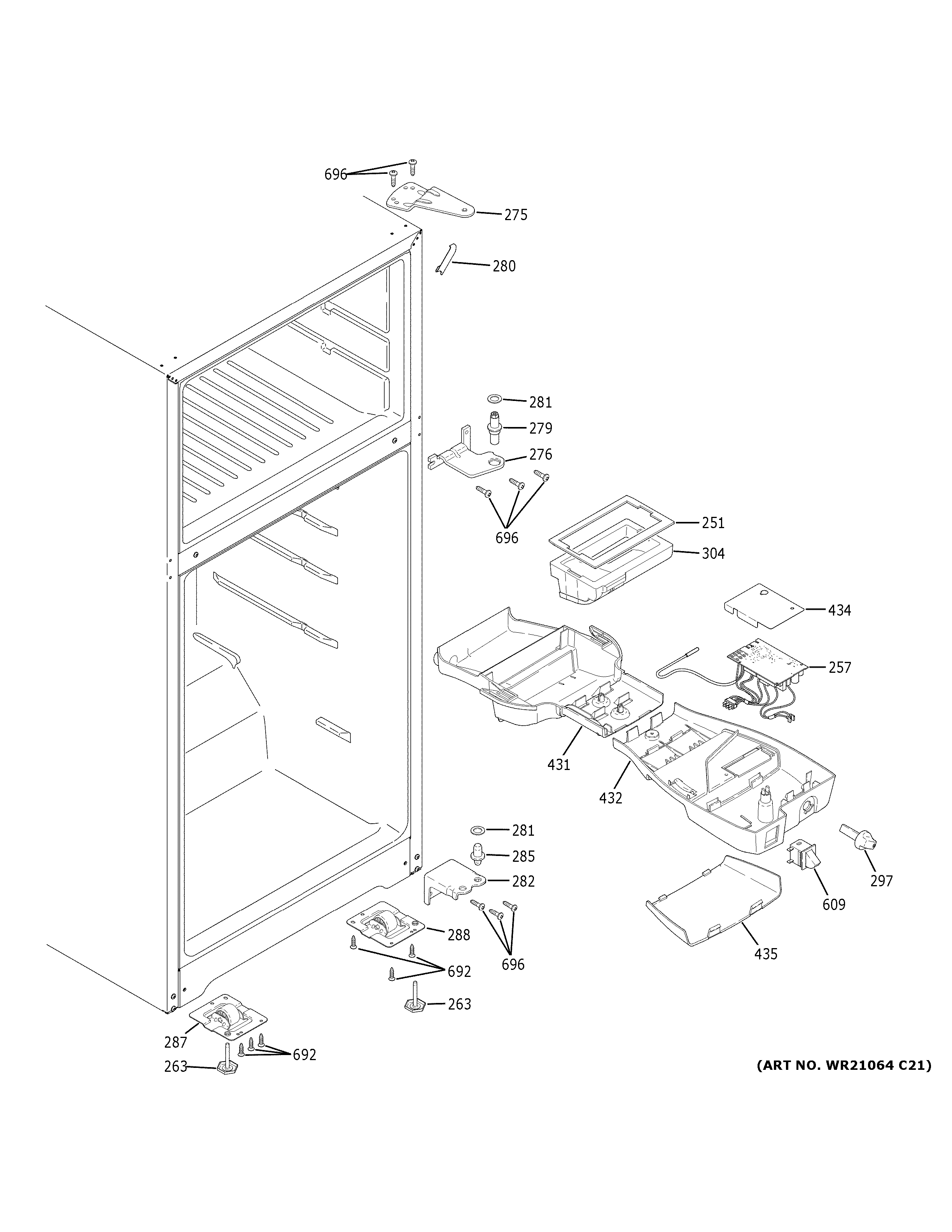

GIE17GSNFRSS FRESH FOOD SECTION

GIE17GSNFRSS FRESH FOOD SECTION

Written by

in

GIE17GSNFRSS FRESH FOOD SECTION

Products

PositionProduct
251GASKET SUPPLY FOAM
257WR55X43779 GE Refrigerator Main Control Board
263WR02X43685 GE Adjustable Leg Glider
275WR13X27088 GE Refrigerator Hinge Top and Pin Assembly
276WR13X21174 GE Refrigerator Center Hinge
279WR02X21173 GE Refrigerator Center Hinge Pin
280WR02X21229 GE Refrigerator Cap Corner
281WASHER HINGE
282WR13X21175 GE Refrigerator Bottom Hinge
285PIN HINGE BOTTOM
287WR02X31386 GE Refrigerator Left Front Wheel Assembly
288WR02X31376 GE Refrigerator Right Front Wheel Assembly
297WR02X31466 GE Refrigerator Control Knob
304WR02X31112 GE Refrigerator Foam Supply Nozzle
431WR02X31486 GE Refrigerator Rear Control Housing 28
432WR02X31088 GE Refrigerator Front Control Housing
434WR02X31093 GE Refrigerator Control Shield
435WR02X31473 GE Refrigerator LED Cover
609REFRIGERATOR DOOR LIGHT SWITCH
692WR01X23006 GE Refrigerator Screw 8-32 CA HXW 1/2 NS
696WR01X26527 GE Refrigerator Screw 12-24 TT PNPSD .785
